Key Interlock Cable: Removal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock slider by squeezing lock tabs on slider from adjuster holder and remove interlock rod from cable.

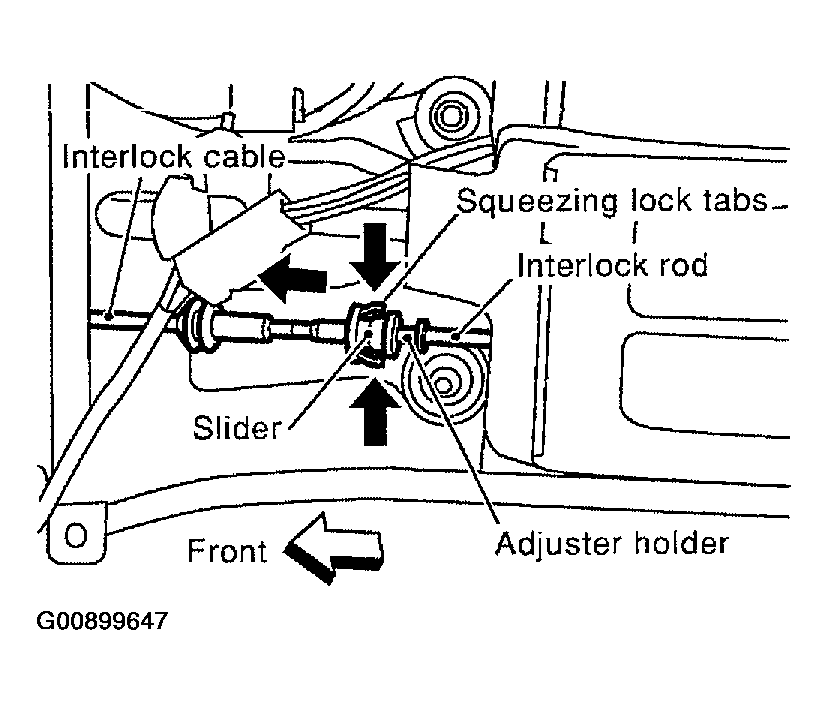

    Fig 1: Removing Interlock Rod From Cable
    G00899647Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove lock plate from steering lock assembly and remove key interlock cable.

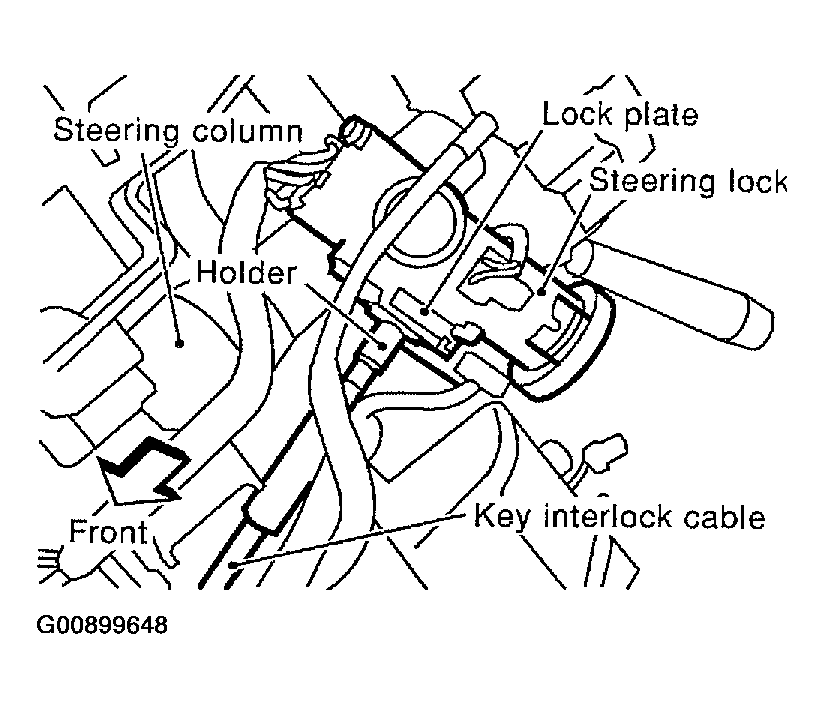

    Fig 2: Removing Key Interlock Cable
    G00899648Courtesy of NISSAN MOTOR CO., U.S.A.
