Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Start engine.
Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
Drive vehicle under the following conditions: Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).

Without CONSULT-II

Start engine.

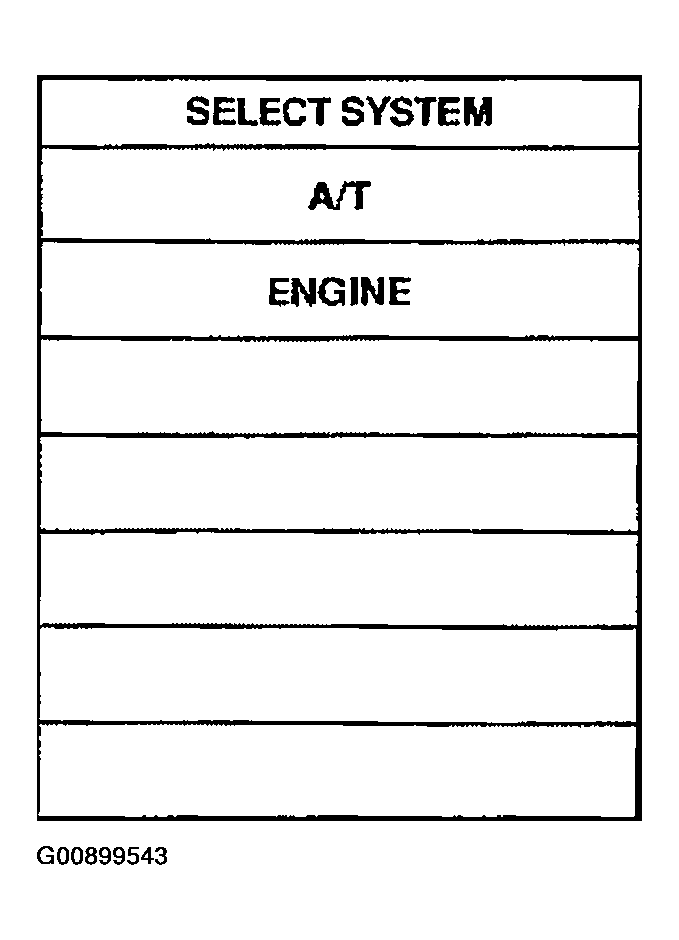

Fig 1: Consult II Display (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive vehicle under the following conditions:
Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).

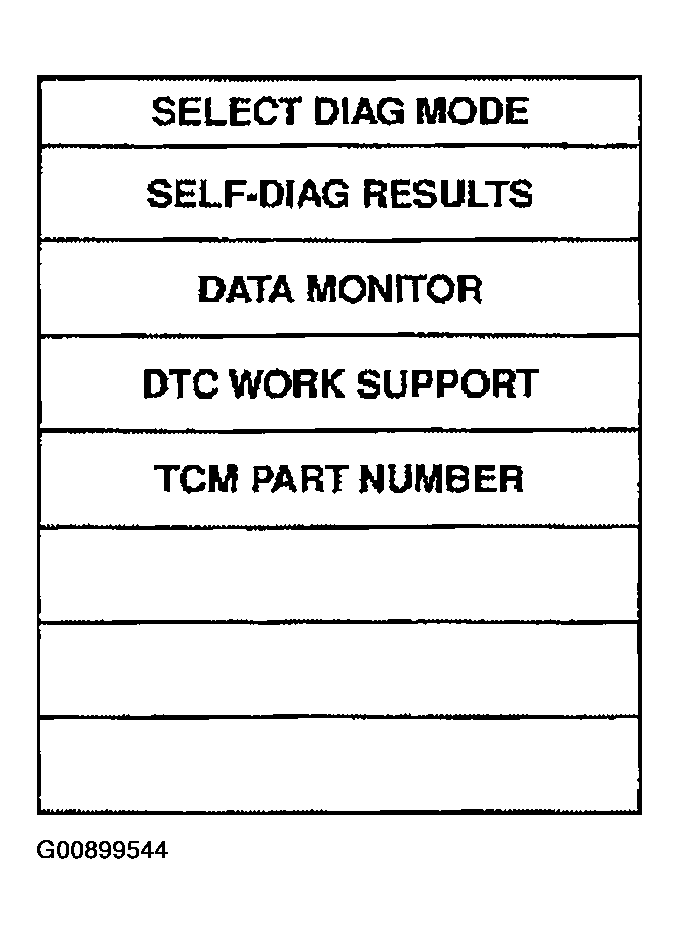

Fig 2: Consult II Display (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform self-diagnosis.
Refer to TCM Self-diagnostic Procedure (No Tools). See TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

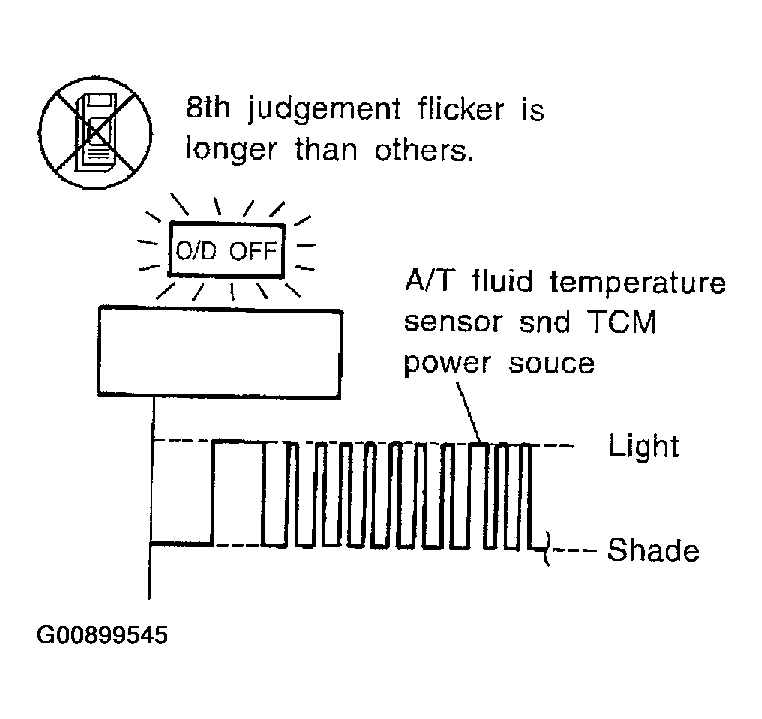

Fig 3: Identifying Blinking Pattern Of 8th Judgement Flicker

Courtesy of NISSAN MOTOR CO., U.S.A.
