Total End Play

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Measure clearance between reverse clutch drum and needle bearing for oil pump cover.
Select proper thickness of bearing race so that end play is within specifications.

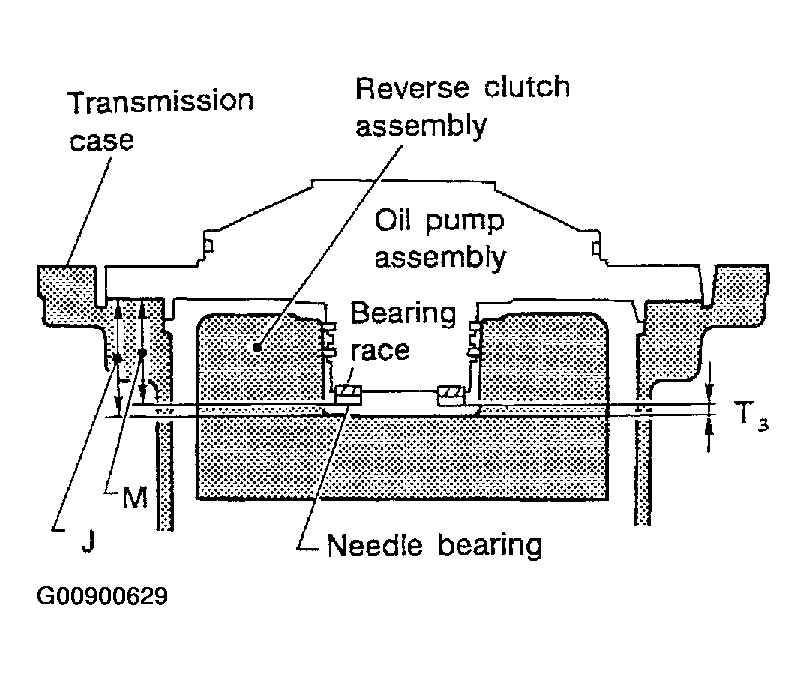

Fig 1: Measuring Clearance Between Reverse Clutch Drum And Needle Bearing For Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.

Measure dimensions "K" and "L" and then calculate dimension "J".

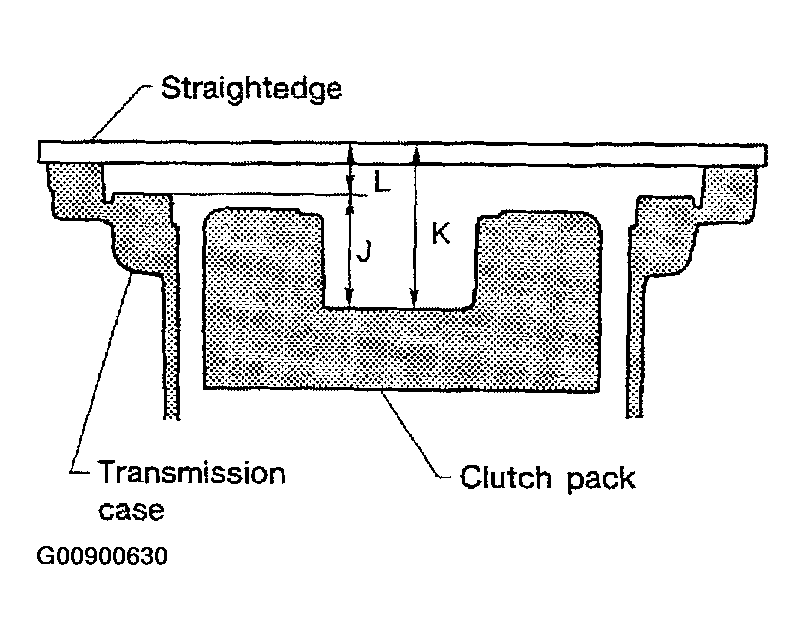

Fig 2: Measuring Dimensions "K" And "L"
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Measure dimension "K".

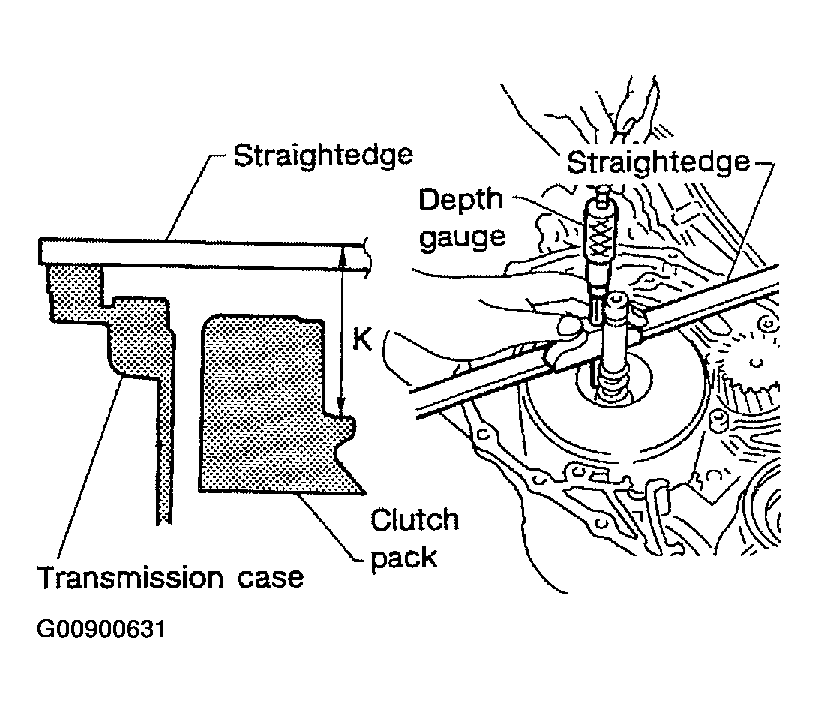

  Fig 3: Measuring Dimension "K"
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure dimension "L".
3. Calculate dimension "J".
  "J": Distance between oil pump fitting surface of transmission case and needle bearing mating surface of high clutch drum
  1. J = K - L

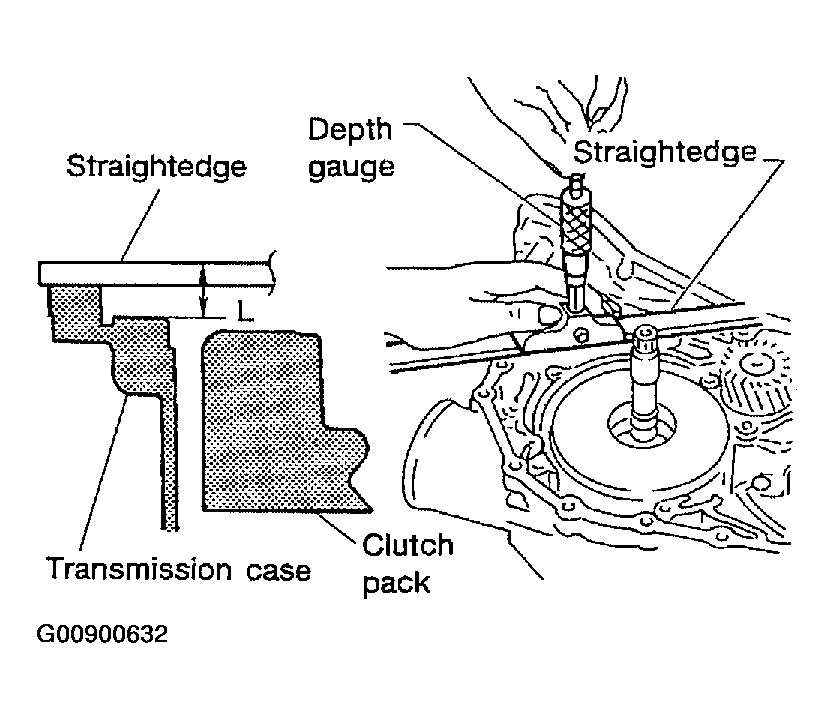

  Fig 4: Measuring Dimension "L"
  Courtesy of NISSAN MOTOR CO., U.S.A.
Measure dimension "M".

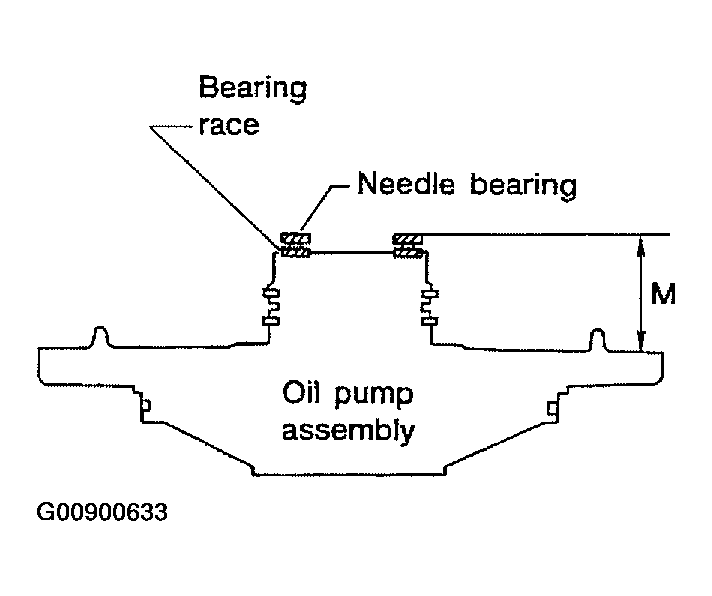

Fig 5: Measuring Dimension "M"
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Place bearing race and needle bearing on oil pump assembly.
2. Measure dimension "M".
  "M": Distance between transmission case fitting surface and needle bearing on oil pump cover

  "M 1": Indication of gauge

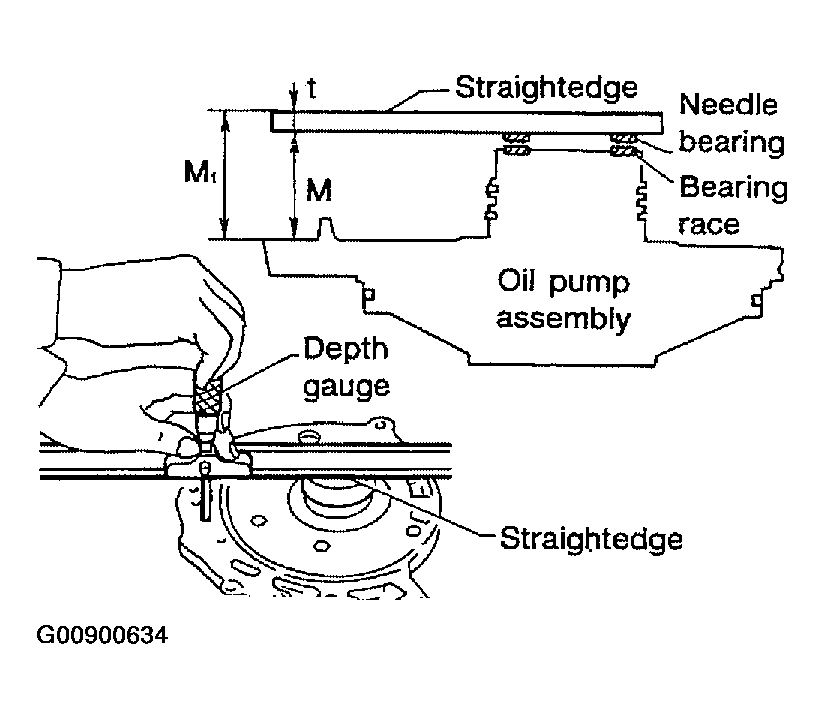

  Fig 6: Identifying Distance Between Transmission Case Fitting Surface And Needle Bearing On Oil Pump Cover
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Measure thickness of straightedge "t".
  1. M = M 1- t
Adjust total end play "T3".
1. T 3= J - M
2. Total end play "T 3: 0.25 - 0.55 mm (0.0098 - 0.0217 in)"
- Select proper thickness of bearing race so that total end play is within specifications.
1. Bearing races: Refer to "BEARING RACE FOR ADJUSTING TOTAL END PLAY "

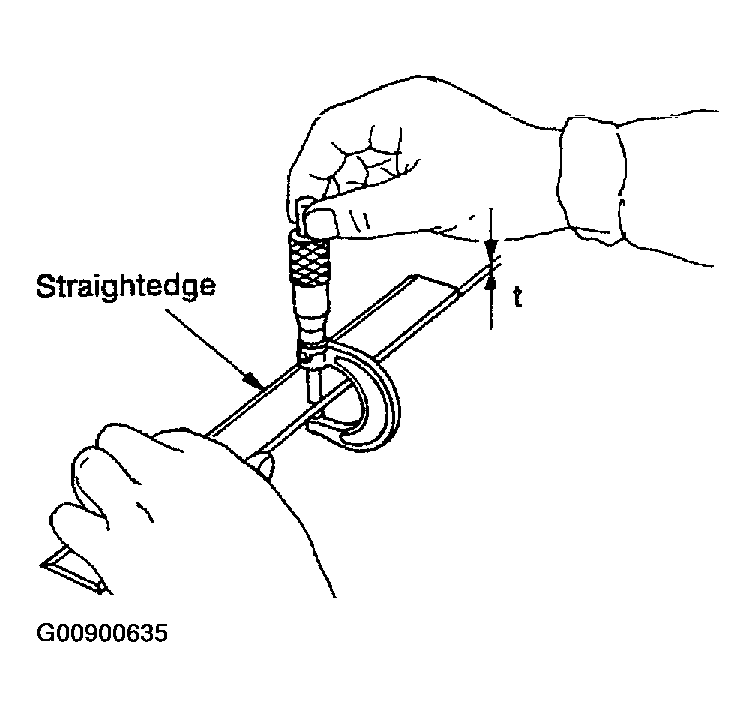

Fig 7: Measuring Thickness Of Straightedge "T"
Courtesy of NISSAN MOTOR CO., U.S.A.
