Output Shaft End Play

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Measure clearance between side cover and the end of the output shaft bearing.
Select proper thickness of adjusting shim so that clearance is within specifications.

Fig 1: Measuring Clearance Between Side Cover And End Of Output Shaft Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

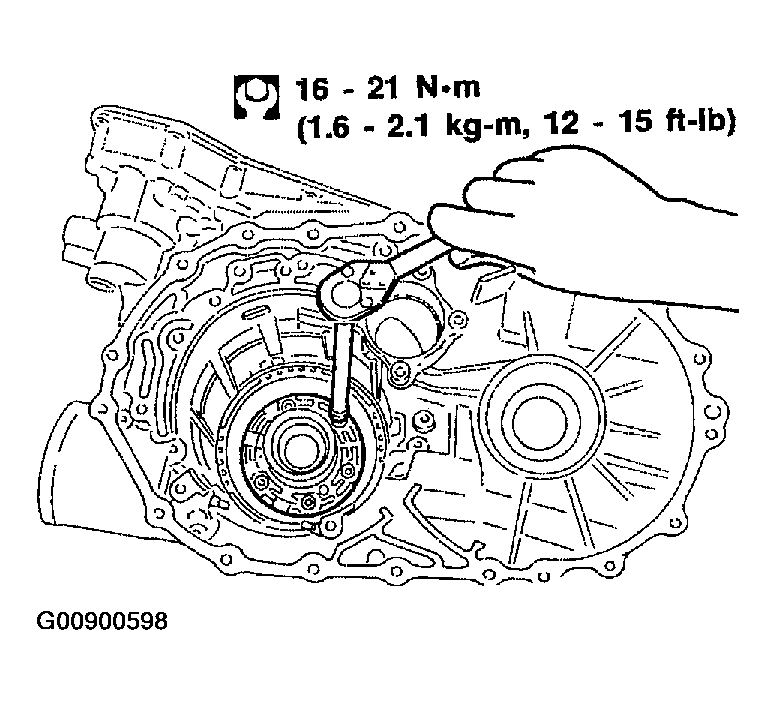

Install bearing retainer for output shaft.

Fig 2: Installing Output Shaft Bearing Retainer And Tightening Torques
Courtesy of NISSAN MOTOR CO., U.S.A.

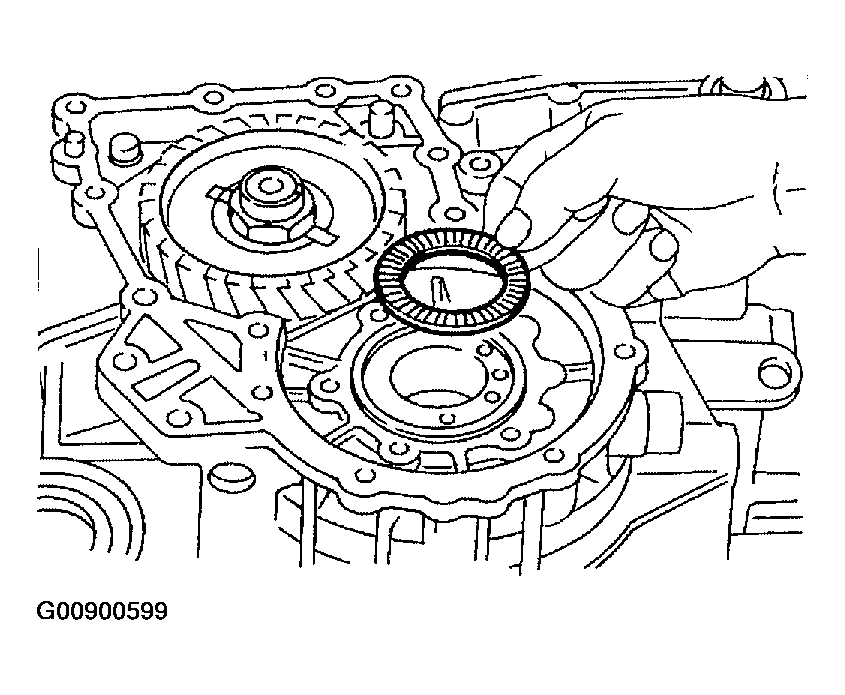

Install output shaft thrust needle bearing on bearing retainer.

Fig 3: Installing Output Shaft Thrust Needle Bearing On Bearing Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

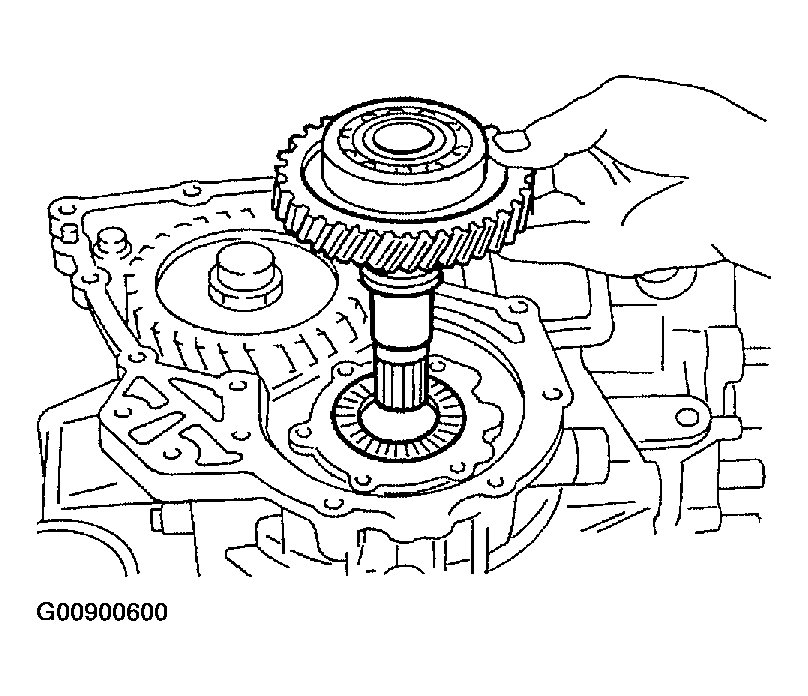

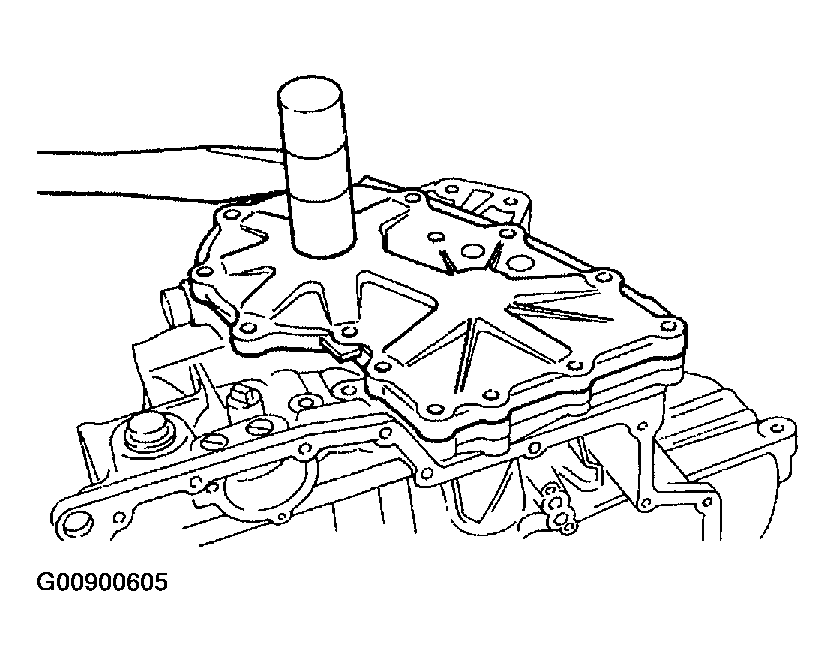

Install output shaft on transmission case.

Fig 4: Installing Output Shaft On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

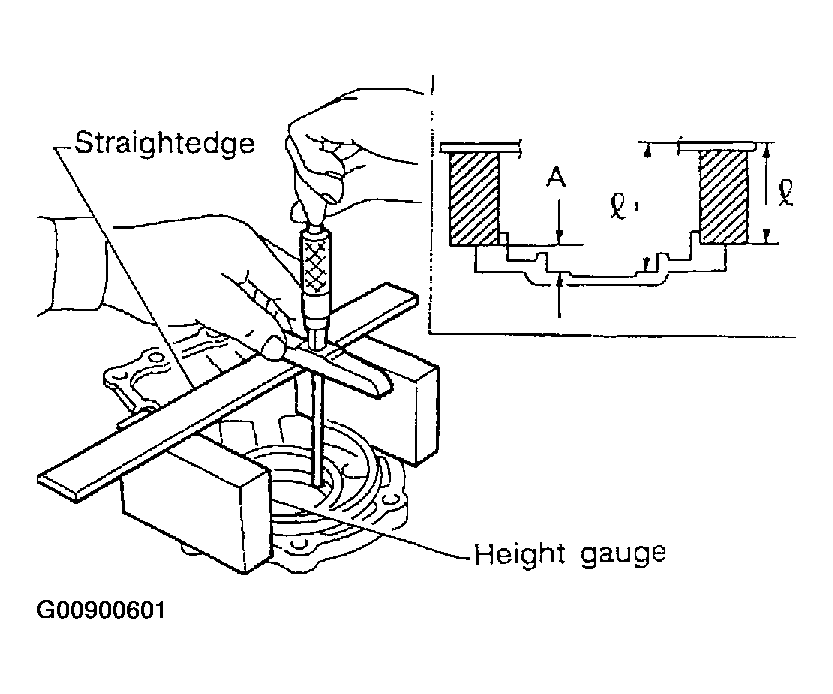

Measure dimensions "l1" and "l2" at side cover and then calculate dimension "A".
- Measure dimension "l 1" and "l 2" in at least two places "A": Distance between transmission case fitting surface and adjusting shim mating surface
1. A = l 1- l 2
2. l 2: Height of gauge

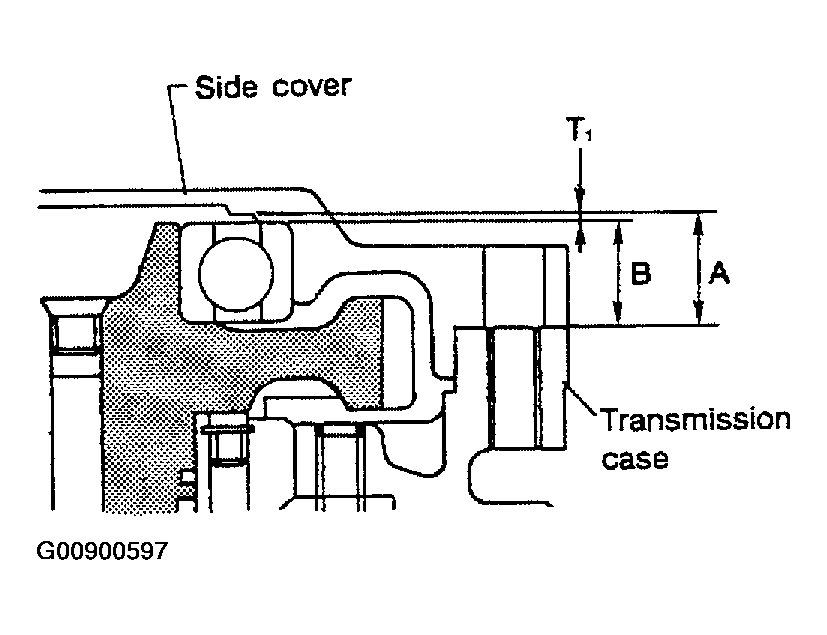

Fig 5: Identifying Distance Between Transmission Case Fitting Surface And Adjusting Shim Mating Surface
Courtesy of NISSAN MOTOR CO., U.S.A.

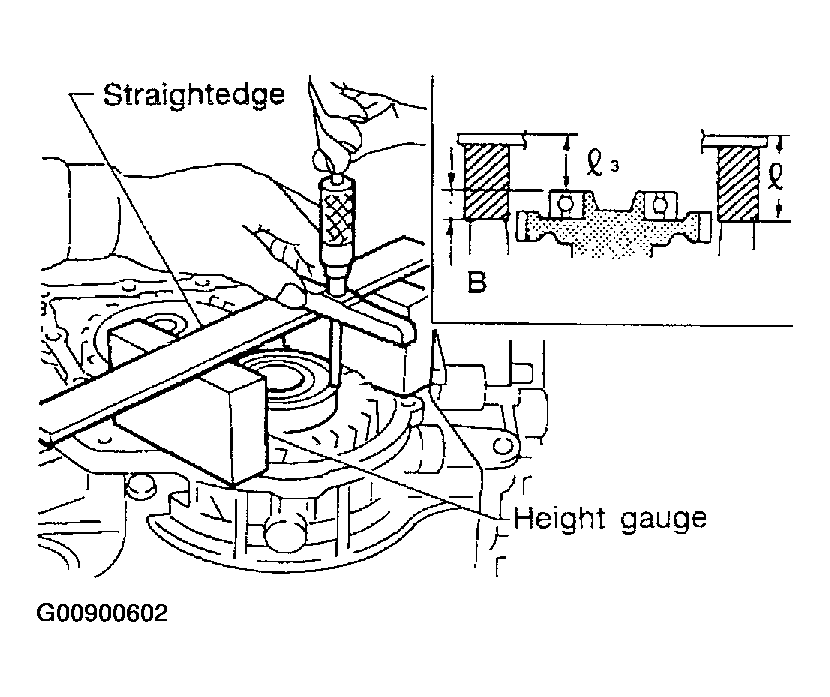

Measure dimensions "l2" and "l3" and then calculate dimension "B".
Measure "l 2" and "l 3" in at least two places.

"B": Distance between the end of output shaft bearing outer race and the side cover fitting surface of transmission case
1. B = l 2- l 3
2. l 2: Height of gauge
Fig 6: Identifying Distance Between End Of Output Shaft Bearing Outer Race And Transmission Case Side Cover Fitting Surface
Courtesy of NISSAN MOTOR CO., U.S.A.
Select proper thickness of adjusting shim so that output shaft end play (clearance between side cover and output shaft bearing) is within specifications.
1. Output shaft end play (A - B): 0 - 0.5 mm (0 - 0.020 in)
2. Output shaft end play adjusting shim: Refer to "OUTPUT SHAFT END PLAY ADJUSTING SHIMS ".

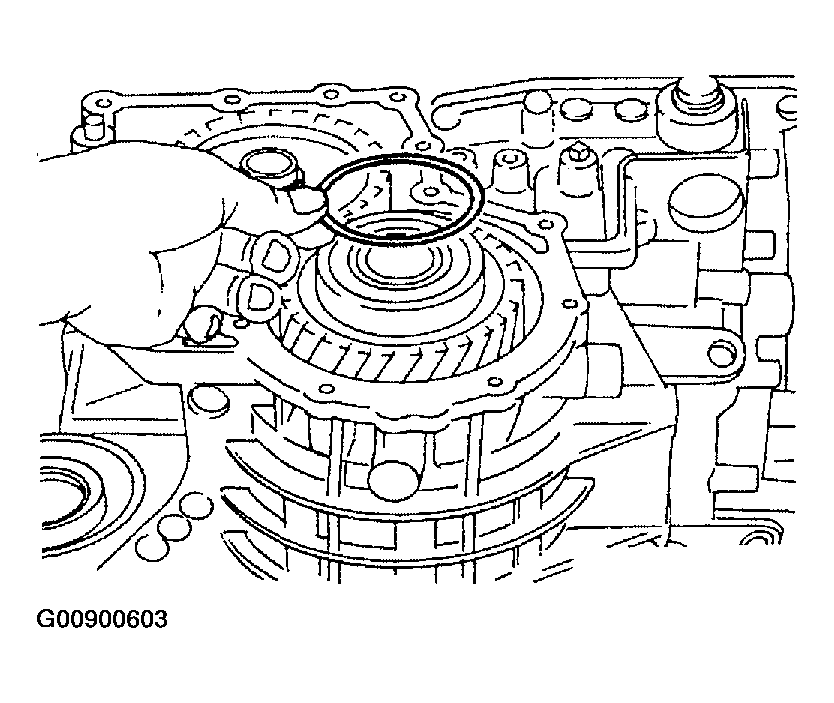

Install adjusting shim on output shaft bearing.

Fig 7: Installing Adjusting Shim On Output Shaft Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

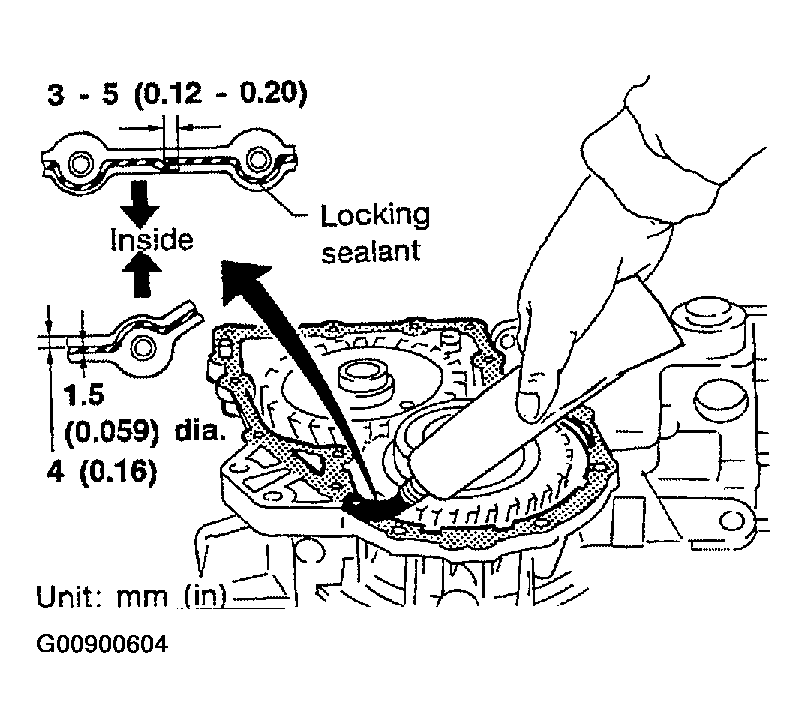

Apply locking sealant (Loctite 5/8 or equivalent) to transmission case as shown in illustration.

Fig 8: Applying Locking Sealant To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install side cover on transmission case.
- Apply locking sealant to the mating surface of transmission case.
Fig 9: Installing Side Cover On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten side cover fixing bolts to specified torque.
1. 26 - 30 N.m (2.7 - 3.1 kg-m, 20 - 22 ft-lb)
- Do not mix bolts A and B.
- Always replace bolts A as they are self-sealing bolts.

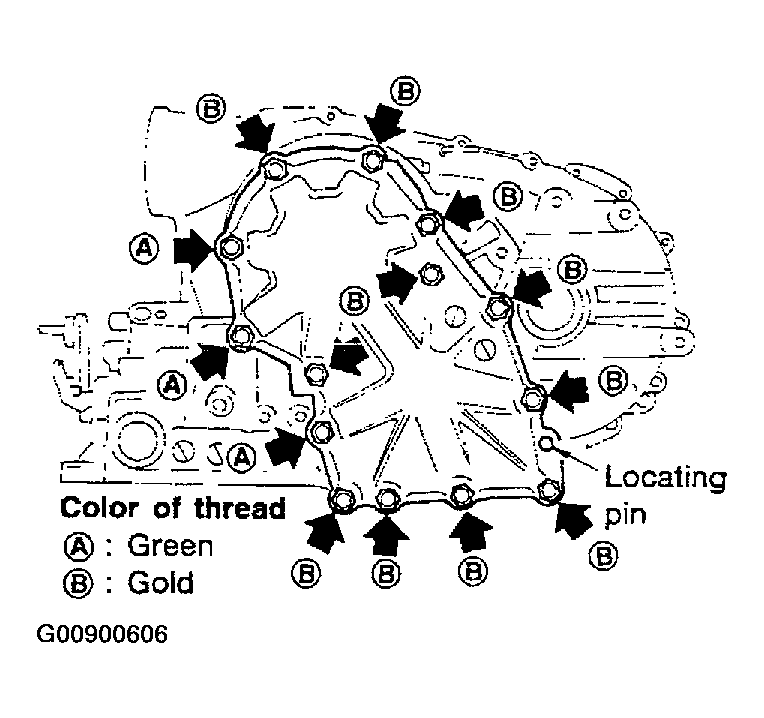

Fig 10: Identifying Color Of Side Cover Fixing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
