Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner and air duct.
  2. Remove the battery.
  3. Remove the air breather hose.
  4. Remove the clutch operating cylinder.
    CAUTION: Do not depress the clutch pedal during the removal procedure.
  5. Remove the engine under cover.
  6. Disconnect the control cable from the transaxle. Refer to . "REMOVAL AND INSTALLATION OF CONTROL DEVICE AND CABLE ".
  7. Drain the gear oil from the transaxle. Refer to M/T OIL .
  8. Remove the connectors and harnesses for:
    • PNP switch
    • Speed sensor
    • Back-up lamp switch
    • Ground
  9. Remove the exhaust front tube. Refer to EXHAUST SYSTEM .
  10. Remove the drive shaft. Refer to DRIVE SHAFT .
  11. Remove the starter motor. Refer to REMOVAL & INSTALLATION .
  12. Place a suitable jack under the transaxle.
    CAUTION: When setting the jack, be careful not to bring it into contact with the switches.
  13. Remove the center member, engine insulator, and engine mount bracket.
  14. Support the engine by placing a jack under the engine oil pan.
  15. Remove the bolts that mount the engine to the transaxle.
  16. Remove the transaxle from the vehicle as shown.

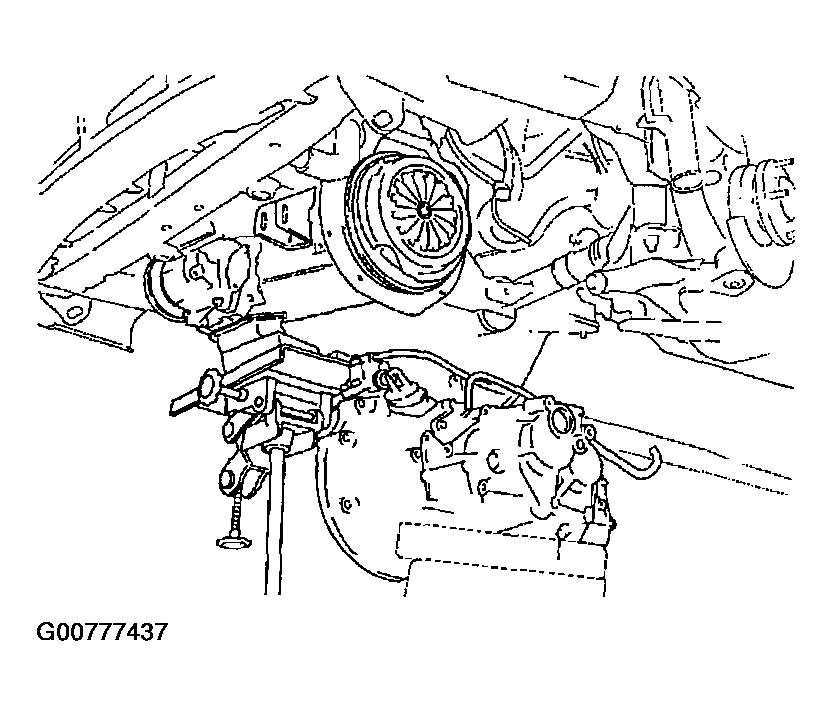

    Fig 1: Removing Transaxle From Vehicle
    G00777437Courtesy of NISSAN MOTOR CO., U.S.A.
