Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse order of removal.

When installing the transaxle to the engine, use them specified tightening torque in the numerical sequence as shown.
CAUTION: When installing the transaxle, do not allow the transaxle input shaft to make contact with the clutch cover.

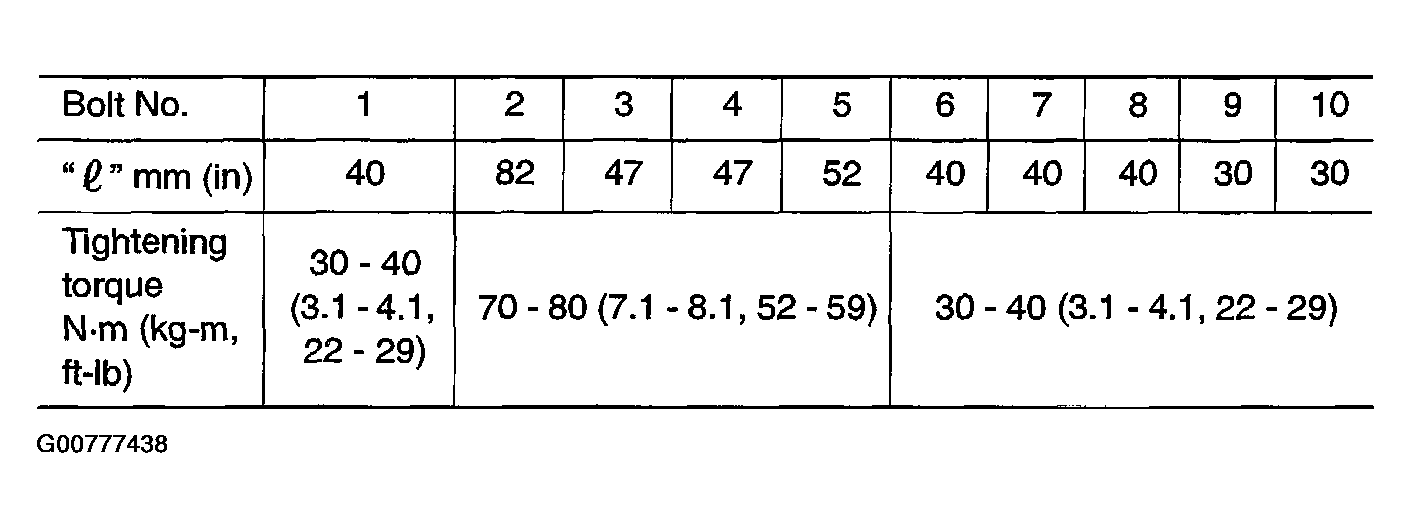

Fig 1: Transaxle To Engine Bolt Specifications And Tightening Torques
Courtesy of NISSAN MOTOR CO., U.S.A.
After installation, check the transaxle oil level. Refer to , "CHECKING ".
After installation, check for any leaks and any loose mechanisms.

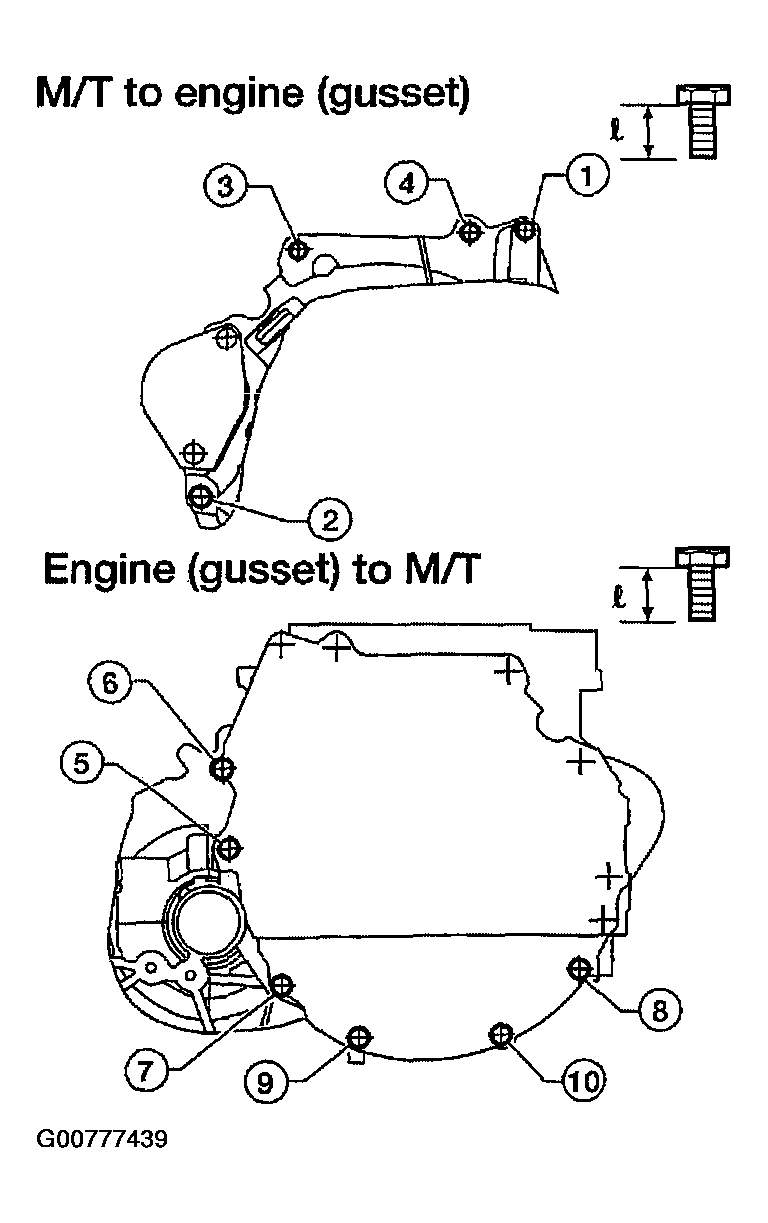

Fig 2: Identifying Tightening Sequence Of Transaxle To Engine Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
