Section 1173 (Manual Transaxle - RS6F51H)
>>
Transaxle Assembly
>>
Component Parts
>>
Case And Housing Components
Case And Housing Components
WARNING:
This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

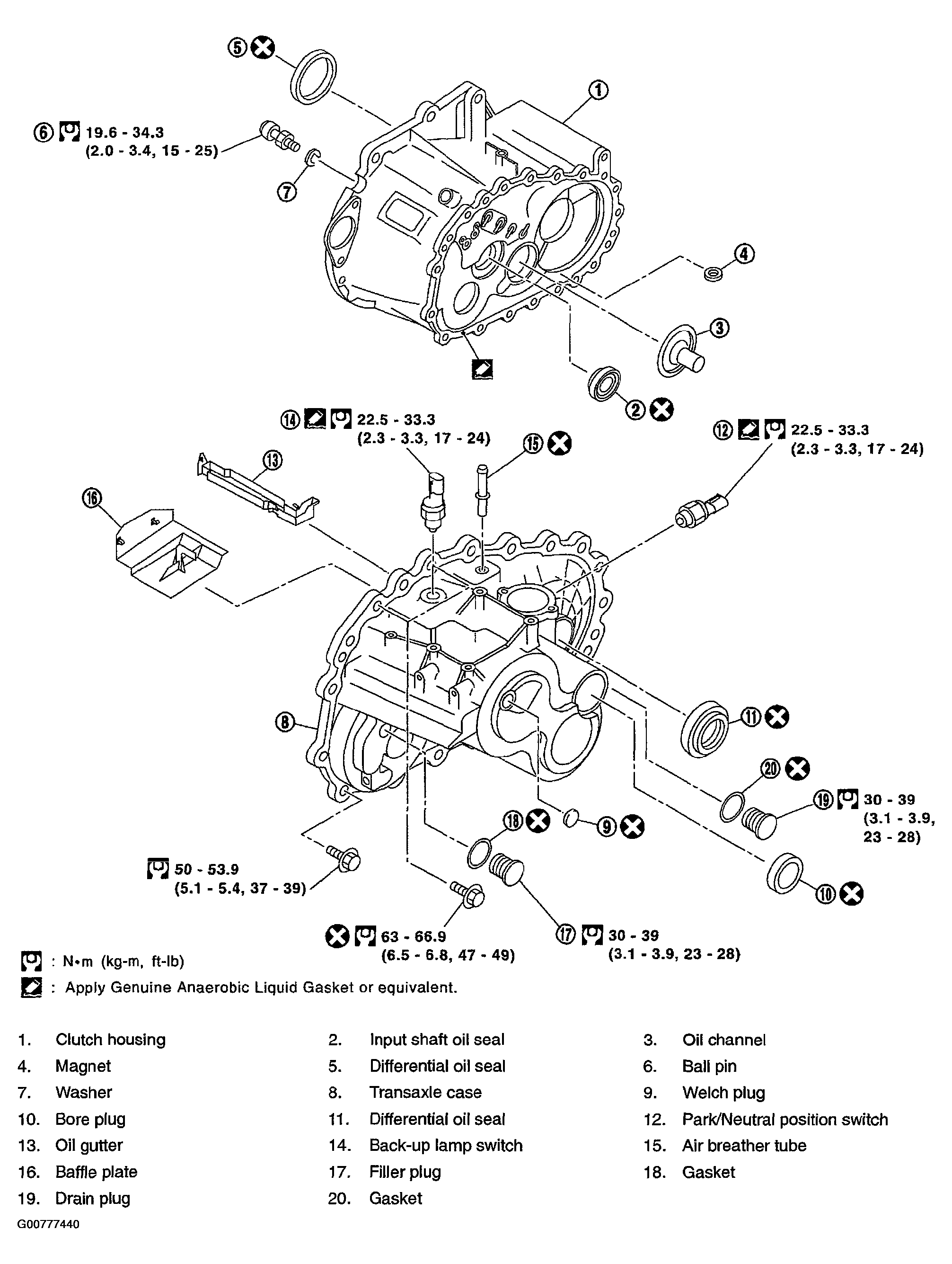

Fig 1: Identifying Case And Housing Components And Tightening Torques
Courtesy of NISSAN MOTOR CO., U.S.A.
