Adjusting Shim

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

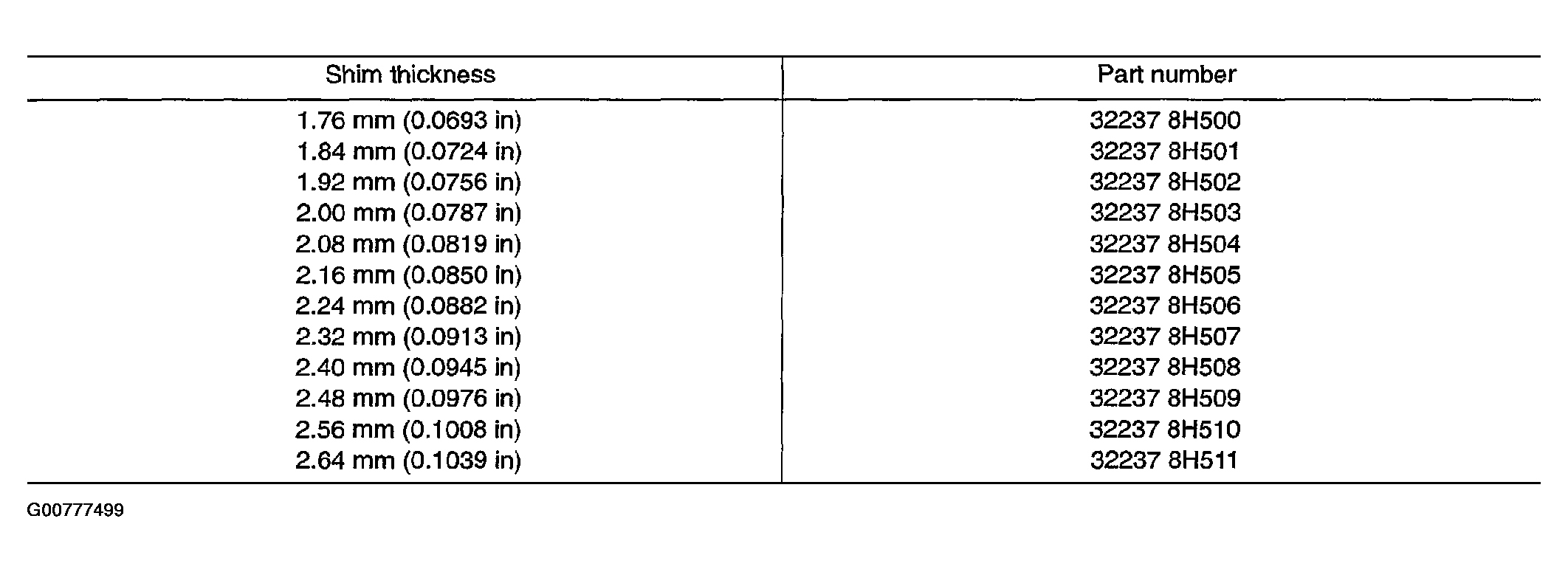

Fig 1: Adjusting Shim Specifications
G00777499Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Using a depth micrometer and straight edge, measure the dimension "Q1" between the transaxle case end face and the mounting face of the adjusting shim as shown.

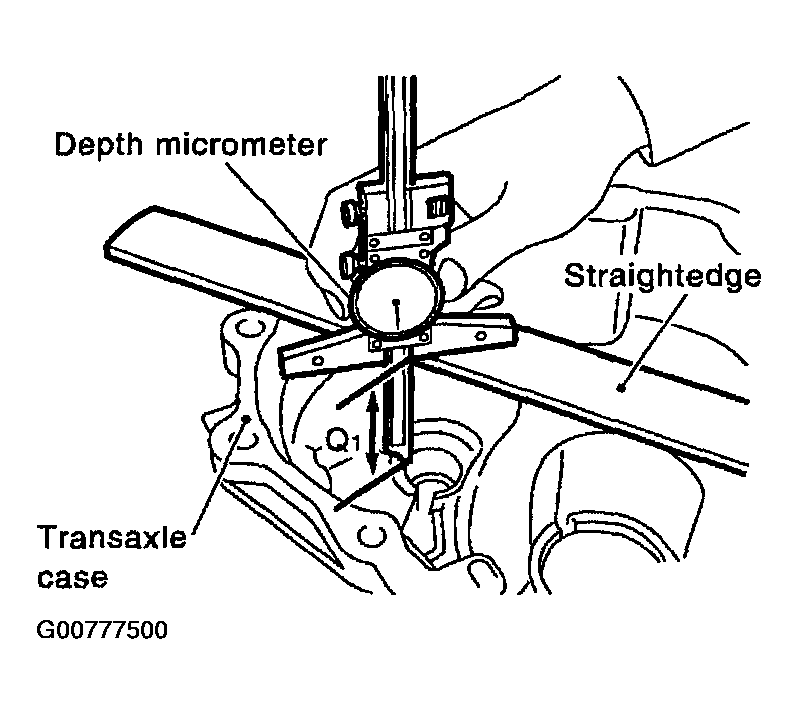

    Fig 2: Measuring Dimension "Q1" Between Transaxle Case End Face And Mounting Face Of Adjusting Shim
    G00777500Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Using a depth micrometer and straight edge, measure the dimension "Q2" between the clutch housing case end face and the end face of reverse idler gear as shown.

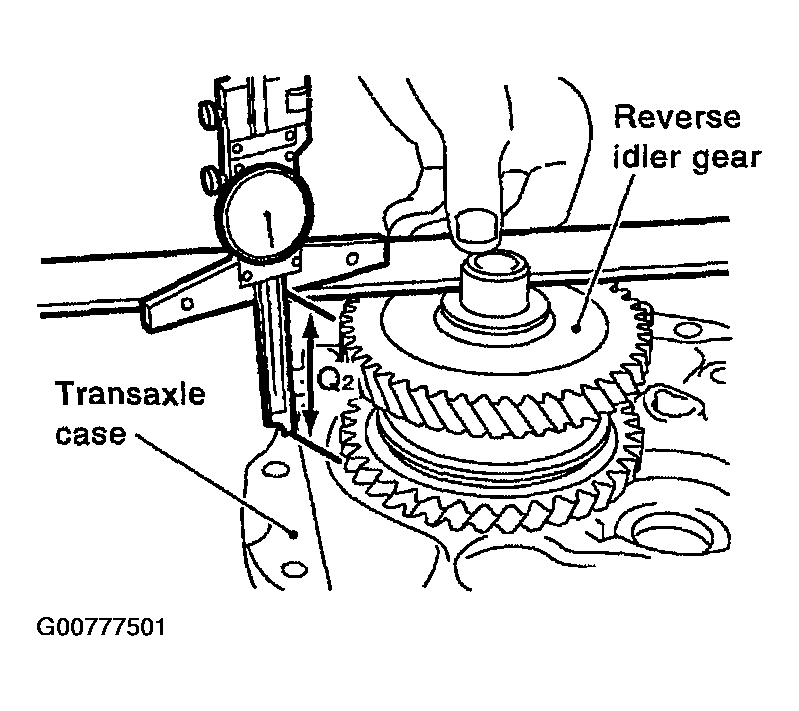

    Fig 3: Measuring Dimension "Q2" Between Clutch Housing Case End Face And End Face Of Reverse Idler Gear
    G00777501Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the selected reverse idler gear adjusting shim onto the reverse idler gear.
