Adjusting Shims

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

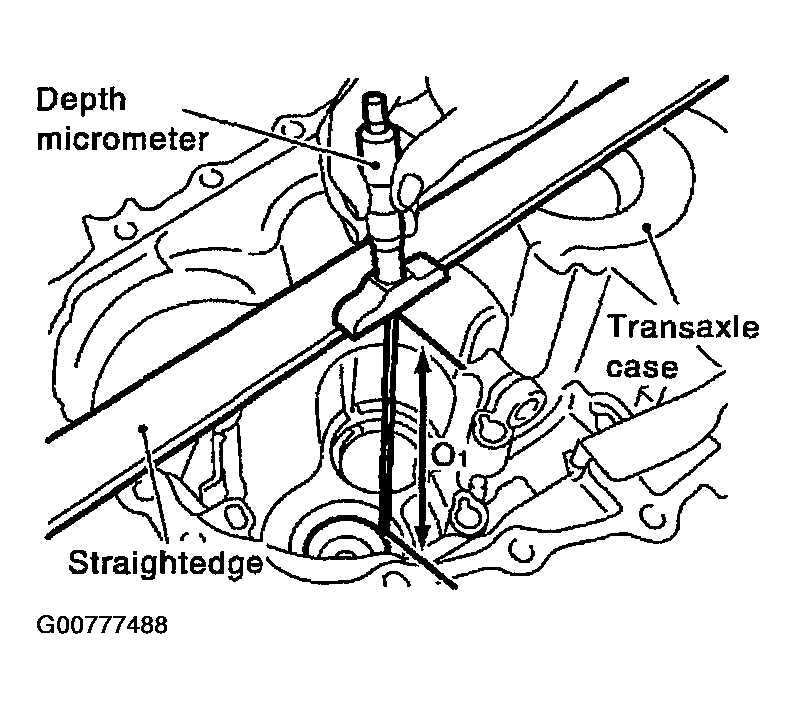

  1. Using a depth micrometer and straight edge, measure the dimension "O1" between the transaxle case end face and mounting face of the adjusting shim as shown.
    Fig 1: Measuring Dimension "O1" Between Transaxle Case End Face And Mounting Face Of Adjusting Shim
    G00777488Courtesy of NISSAN MOTOR CO., U.S.A.

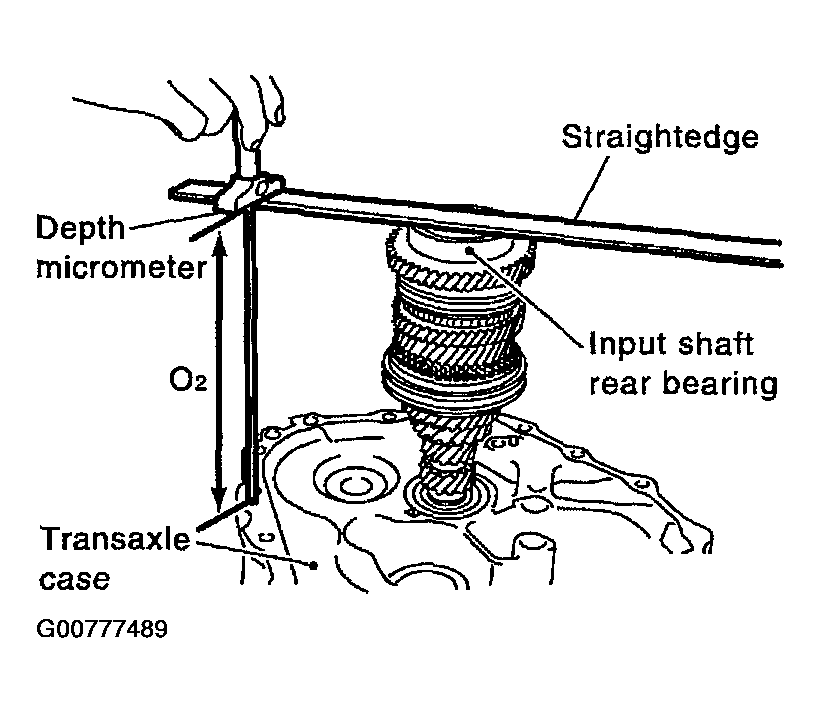

  2. Using a depth micrometer and straight edge, measure the dimension "O2" between the clutch housing case end face and end face of the input shaft rear bearing as shown.
    Fig 2: Measuring Dimension "O2" Between Clutch Housing Case End Face And End Face Of Input Shaft Rear Bearing
    G00777489Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the selected input shaft rear bearing adjusting shim onto the input shaft.
