Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive shaft from the transaxle body. Refer to DRIVE SHAFT .
  2. Remove oil seal with a slotted screwdriver.
    CAUTION: Be careful not to damage the case surface when removing the oil seal.

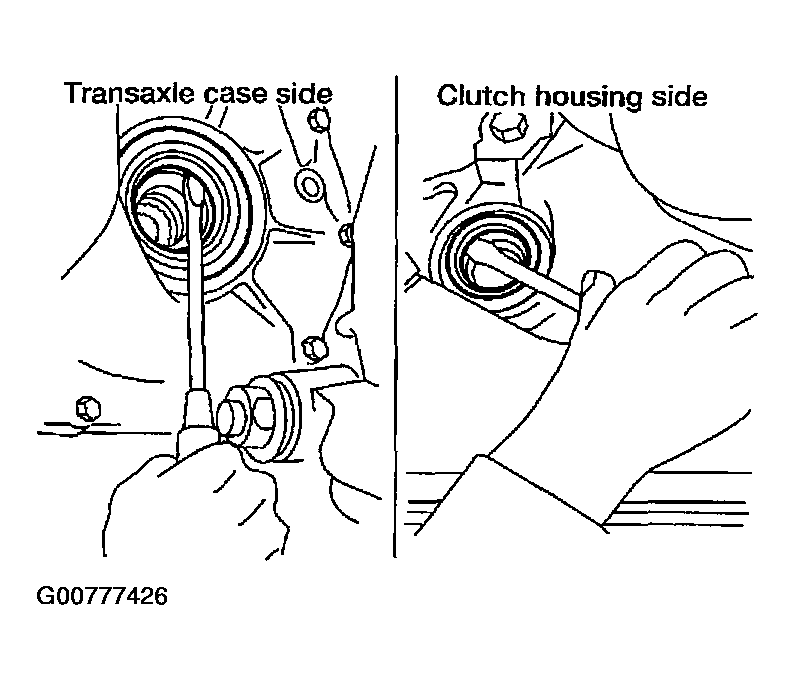

    Fig 1: Removing Oil Seal
    G00777426Courtesy of NISSAN MOTOR CO., U.S.A.
