Removal and Installation: Installation
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.

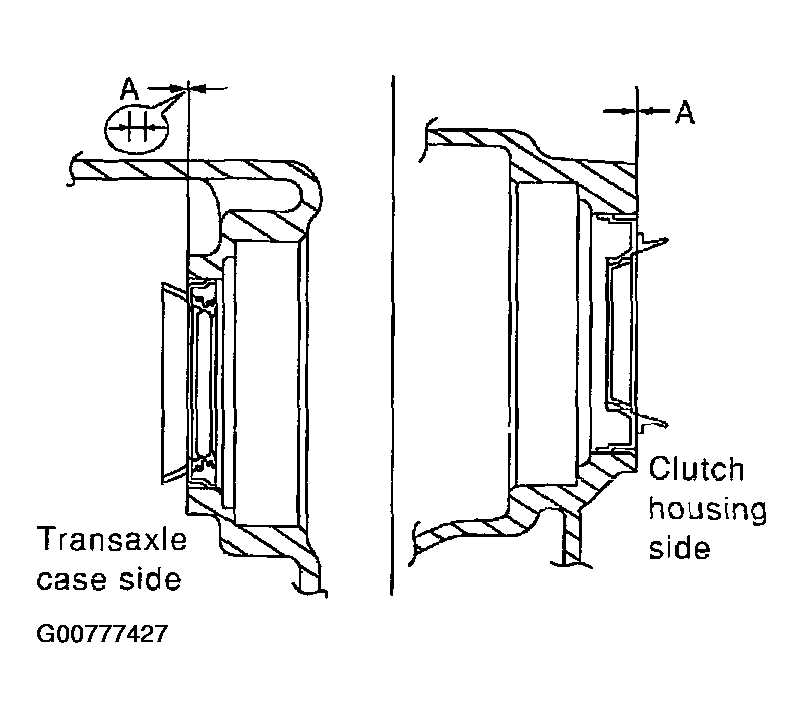

- Using Tool (drift), drive the new oil seal straight until it protrudes from the case end equal to dimension "A" as shown.
Dimension "A": Within 0.5 mm (0.02 in) or flush with the case.
Tool (drift): ST30720000 (J25405)
CAUTION:- Before installing oil seal, apply multi-purpose grease to oil seal lips.
- Oil seal is not reusable.
- Check oil level after installation. Refer to , "CHECKING ".
