Shift Control: Inspection: Notes

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check the contact surfaces and sliding area for wear, damage, or bending as shown. If necessary, replace the parts.

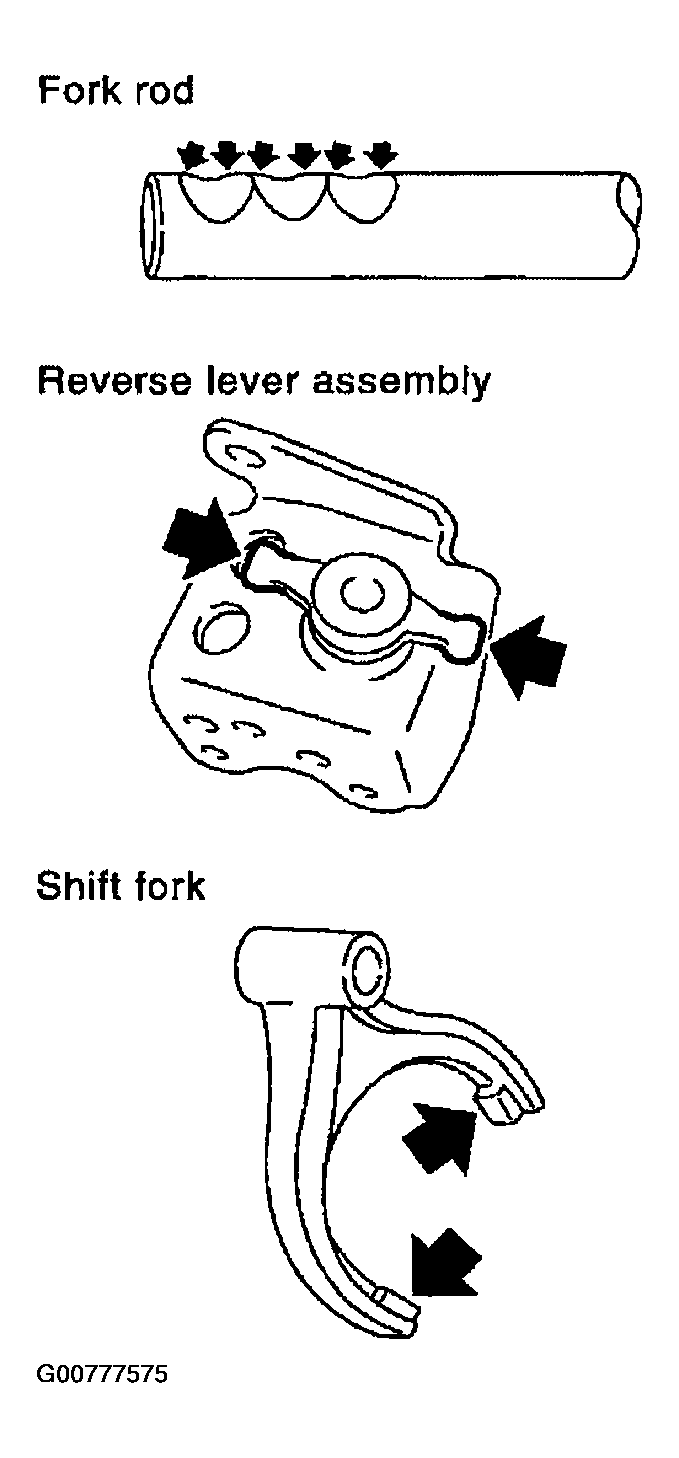

Fig 1: Checking Contact Surfaces And Sliding Area For Wear, Damage, Or Bending
G00777575Courtesy of NISSAN MOTOR CO., U.S.A.
