3RD, 4TH, 5TH, 6TH & Reverse Baulk Ring

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

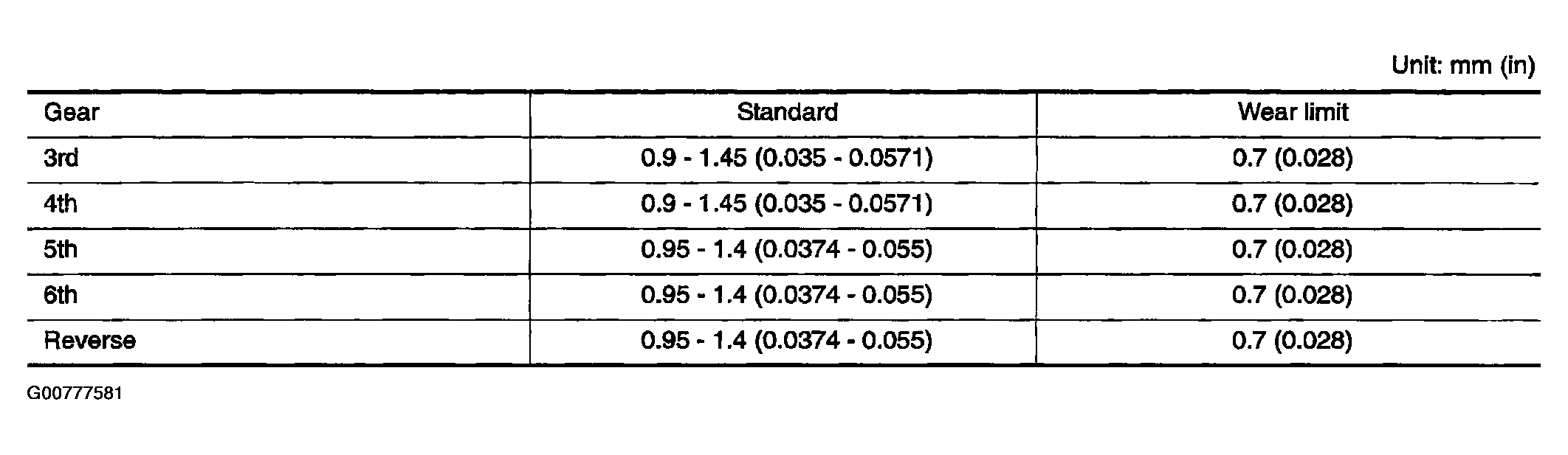

Fig 1: Clearance Between Baulk Ring And Gear (3rd, 4th, 5th, 6th & Reverse Baulk Ring)

Courtesy of NISSAN MOTOR CO., U.S.A.
