Section 1173 (Manual Transaxle - RS6F51H)
>>
Service Data And Specifications (SDS)
>>
Available Adjusting Shims
>>
MAINSHAFT Adjusting Shim
MAINSHAFT Adjusting Shim
WARNING:
This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

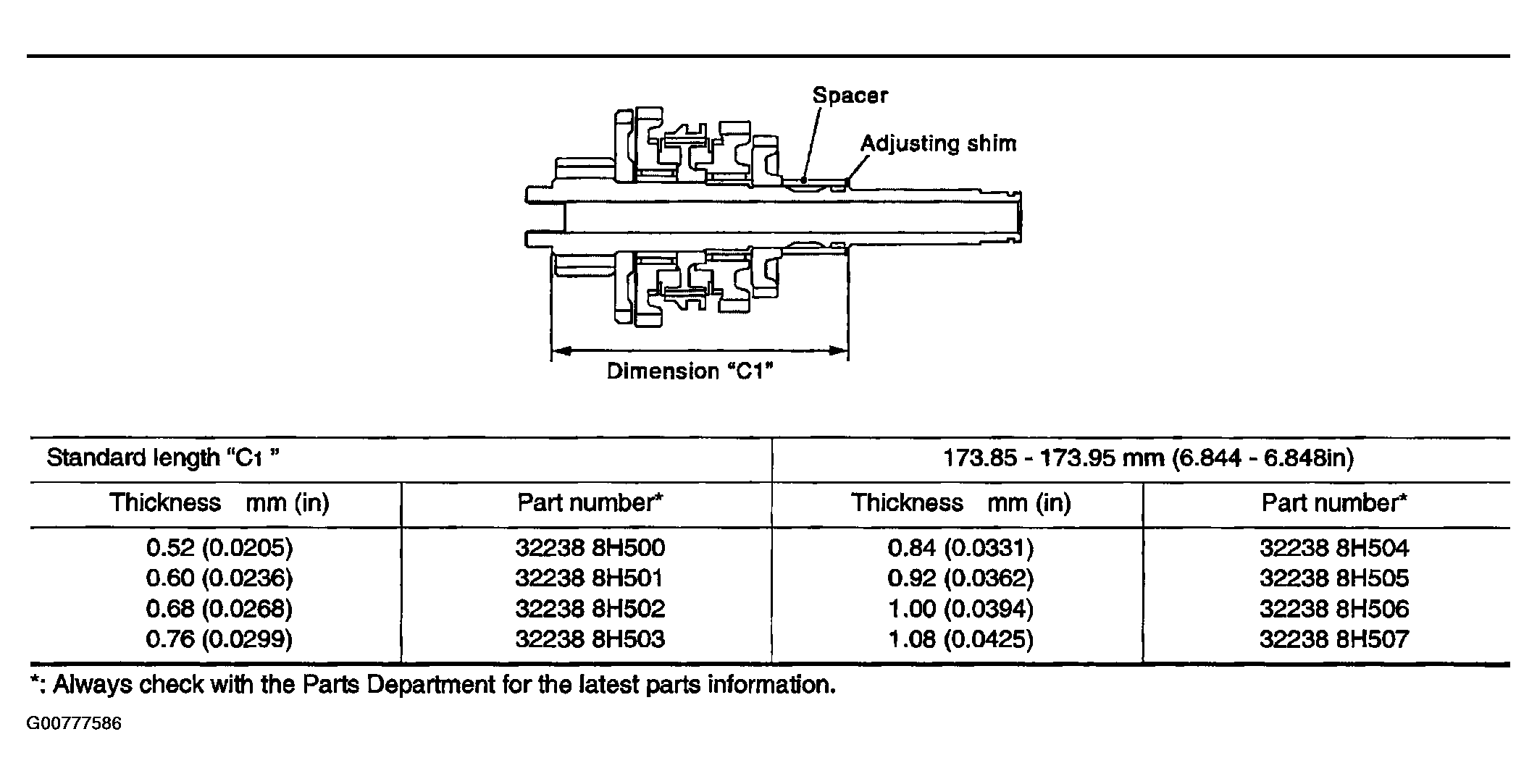

Fig 1: Mainshaft Adjusting Shim Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
