Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reverse main gear using Tool as shown.

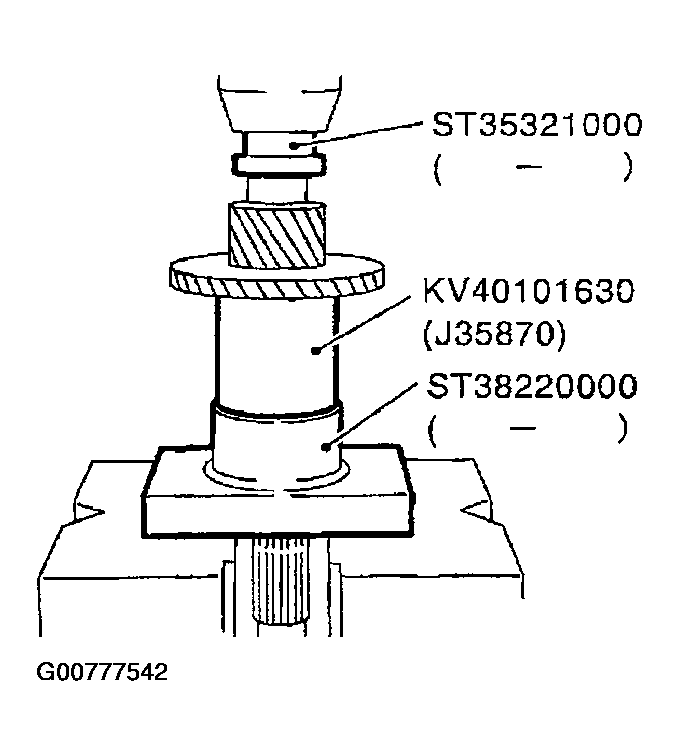

    Fig 1: Installing Reverse Main Gear
    G00777542Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Install with the orientation of reverse main gear as shown.

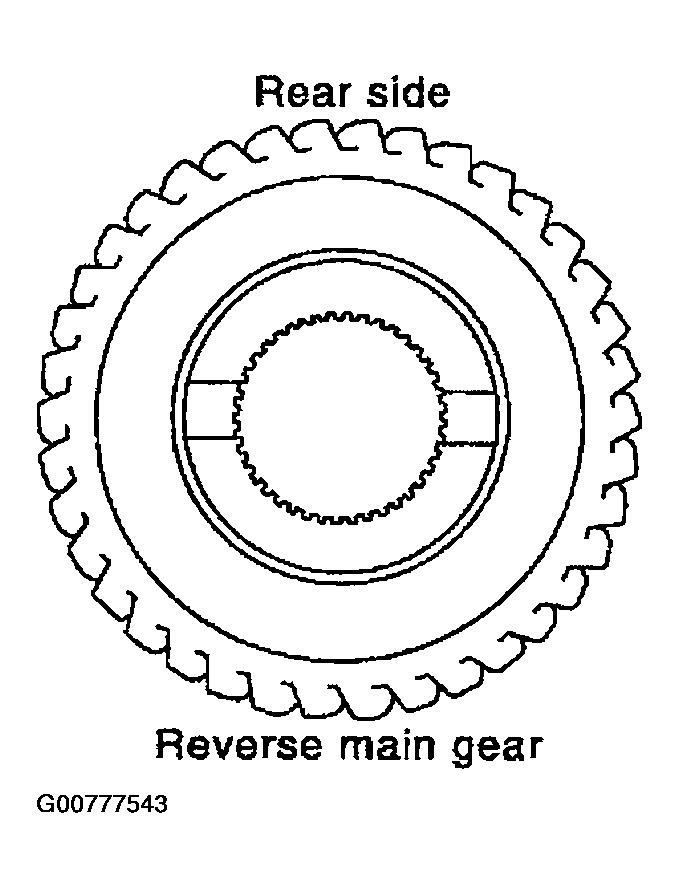

    Fig 2: Identifying Orientation Of Reverse Main Gear
    G00777543Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install the 1st bushing using Tool as shown.
  3. Install the needle bearing, and then the 1st main gear.

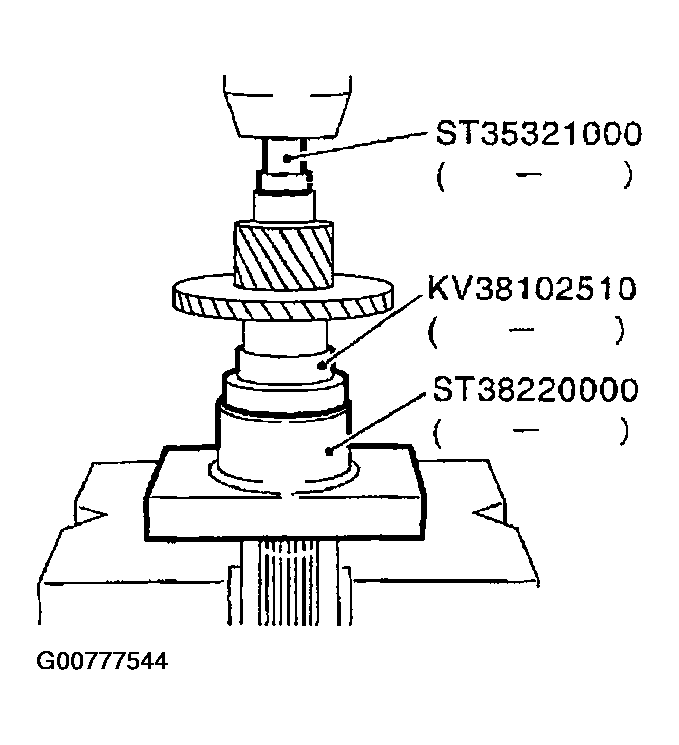

    Fig 3: Installing 1st Bushing
    G00777544Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install the spread spring, shifting insert, and a new 1st-2nd synchronizer hub onto the 1st-2nd coupling sleeve.
    CAUTION: Do not reuse 1st-2nd synchronizer hub
    • Install with the orientation of the new synchronizer hub as shown.

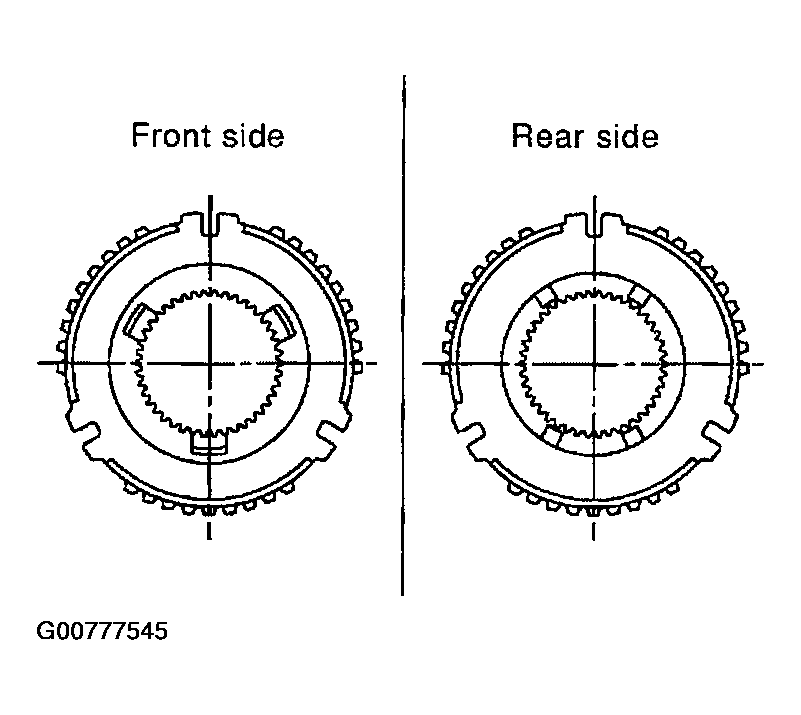

      Fig 4: Identifying Orientation Of Synchronizer Hub
      G00777545Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install with the orientation of coupling sleeve as shown.

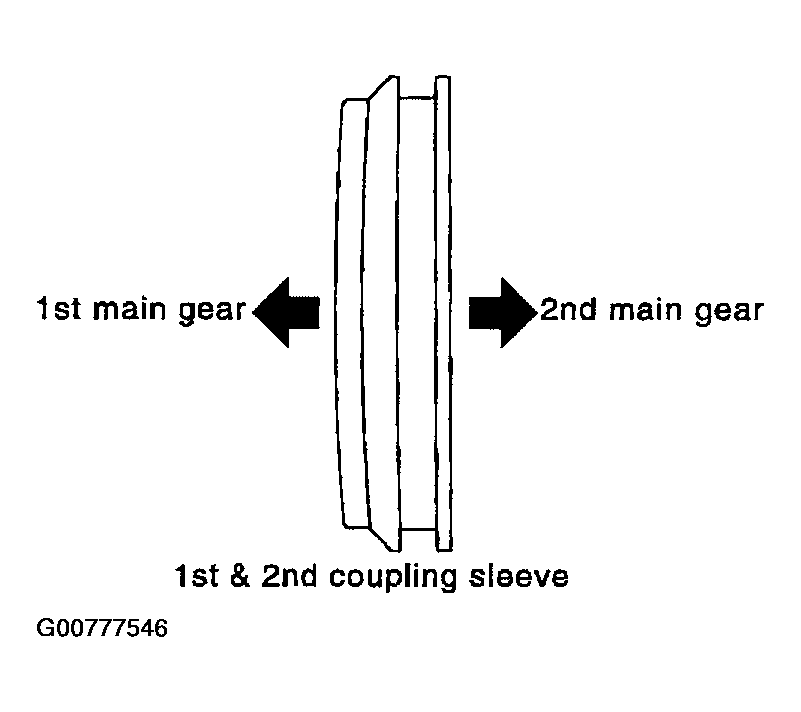

      Fig 5: Identifying Orientation Of Coupling Sleeve
      G00777546Courtesy of NISSAN MOTOR CO., U.S.A.
    • Do not hook the ends of the two spread springs (front and back have two each) on the same shifting insert.

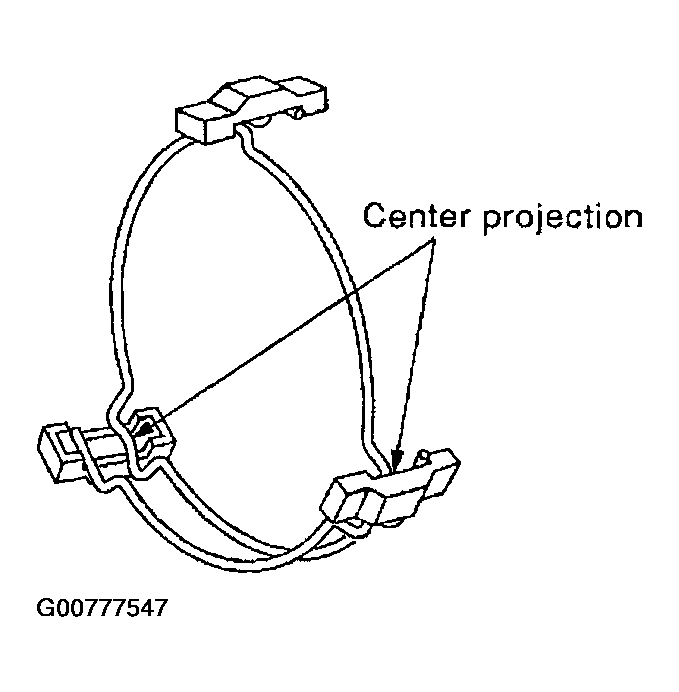

      Fig 6: Identifying Center Projection Of Spread Spring
      G00777547Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install the1st-2nd coupling sleeve assembly onto the mainshaft, and the synchronizer hub assembly onto the mainshaft using Tool as shown.
    CAUTION:
    • Outer baulk ring, synchronizer cone, and inner baulk ring on the 2nd gear-side must have been removed.
    • Install the coupling sleeve with the proper orientation.

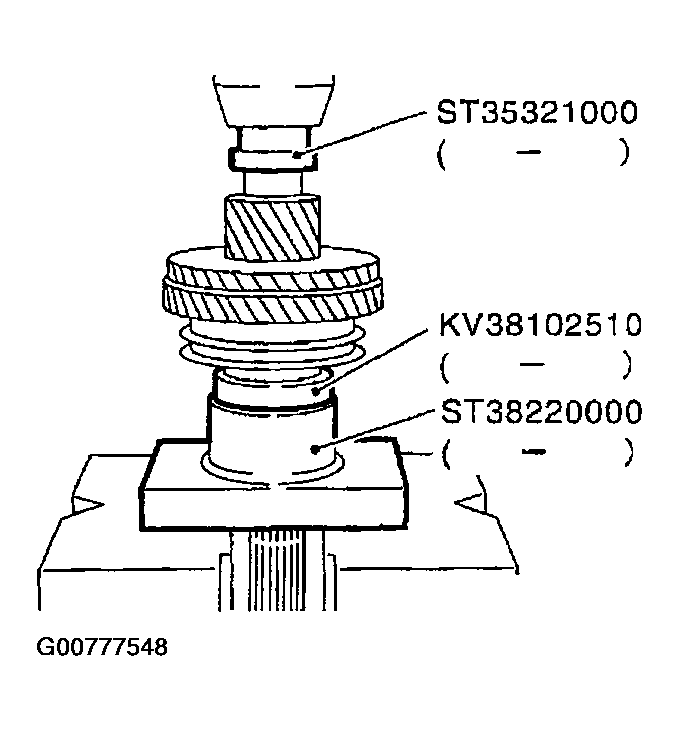

    Fig 7: Installing 1st-2nd Coupling Sleeve Assembly Onto Mainshaft, And Synchronizer Hub Assembly Onto Mainshaft
    G00777548Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install the 2nd bushing using Tool as shown.
  7. Install the outer baulk ring, synchronizer cone, and inner baulk ring on 2nd gear-side.
  8. Install the 2nd needle bearing and 2nd gear.

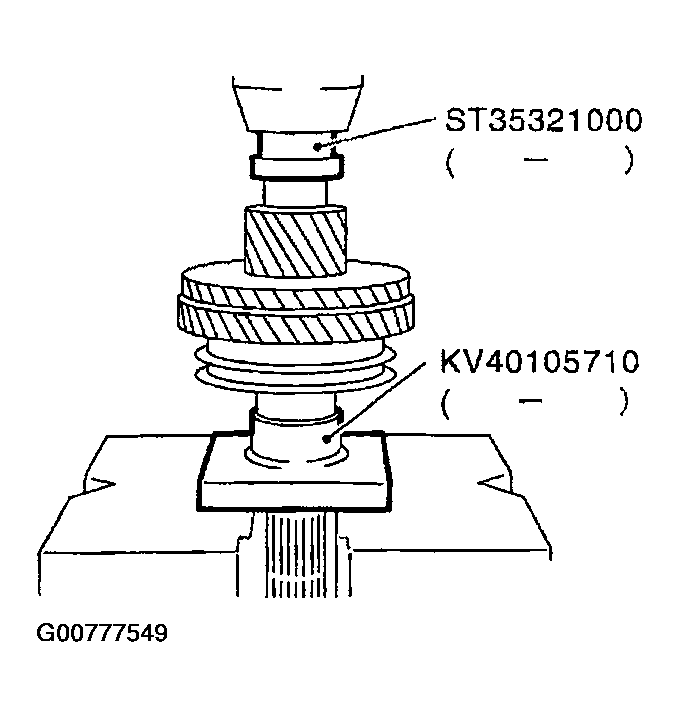

    Fig 8: Installing 2nd Bushing
    G00777549Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install the 3rd main gear.
    CAUTION: Install the 3rd main gear with the orientation as shown.
  10. Install the 3rd-4th mainshaft spacer.

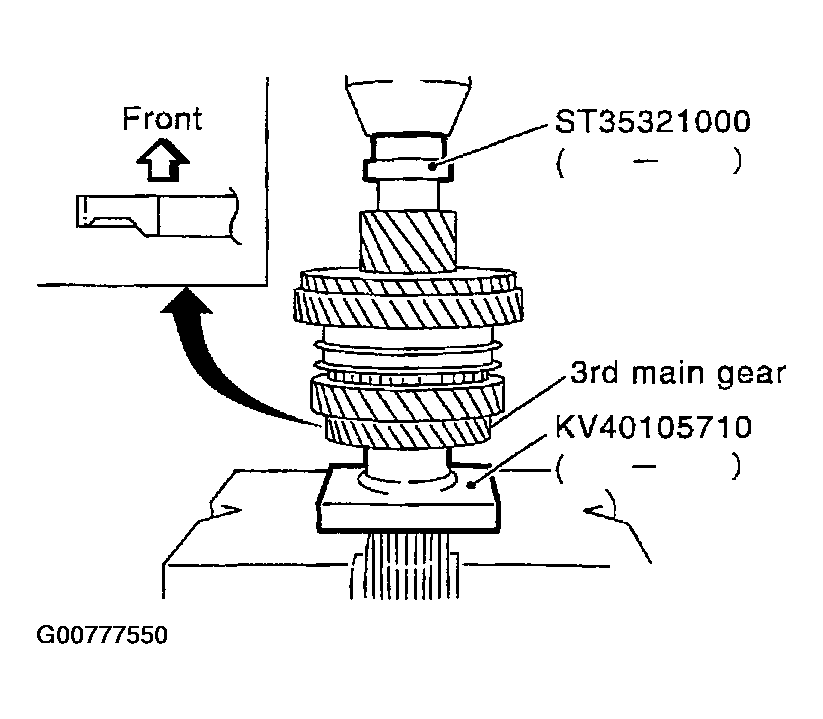

    Fig 9: Installing 3rd Main Gear
    G00777550Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Measure the dimension "C1". Select a suitable adjusting shim so that the dimension "C1" satisfies the specified standard value, and install it onto the mainshaft.

    Standard for: 173.85 - 173.95 mm (6.844 - 6.848 in)

    dimension "C1"  )

    CAUTION: Only 1 adjusting shim can be selected.

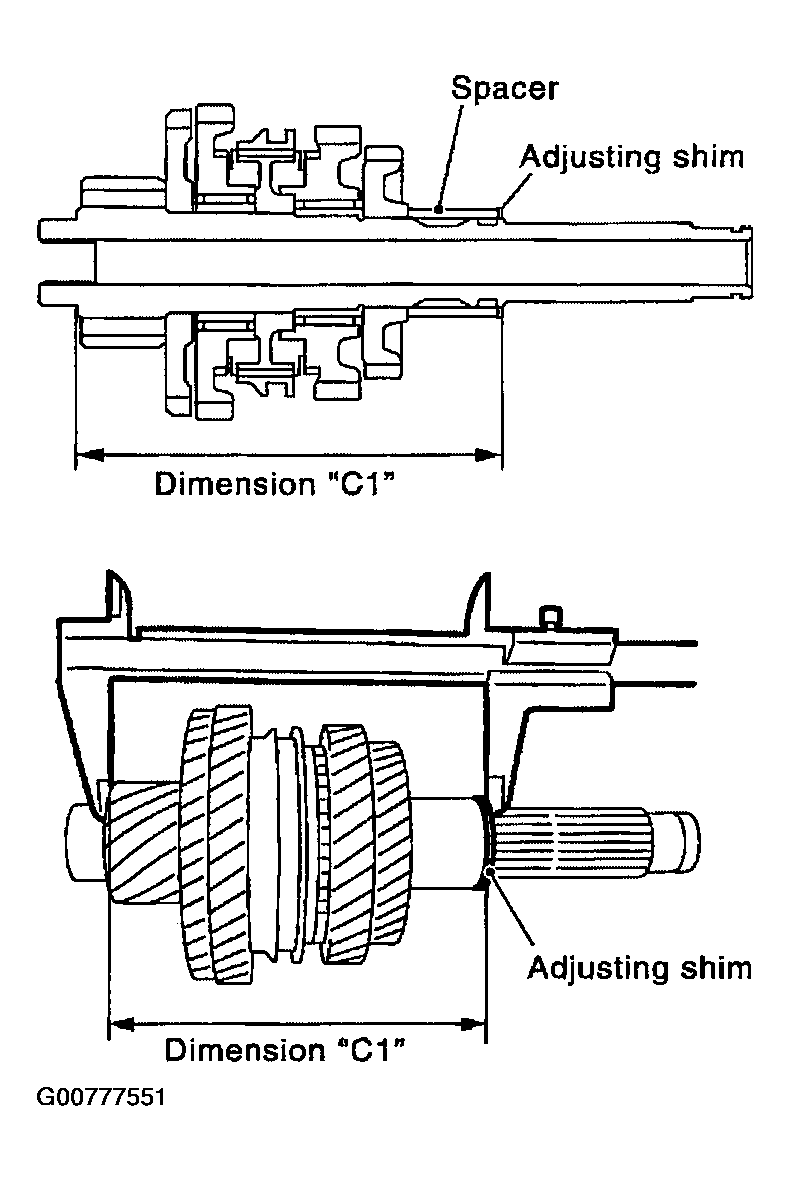

    Fig 10: Measuring Dimension Of Adjusting Shim
    G00777551Courtesy of NISSAN MOTOR CO., U.S.A.

    Adjusting Shim

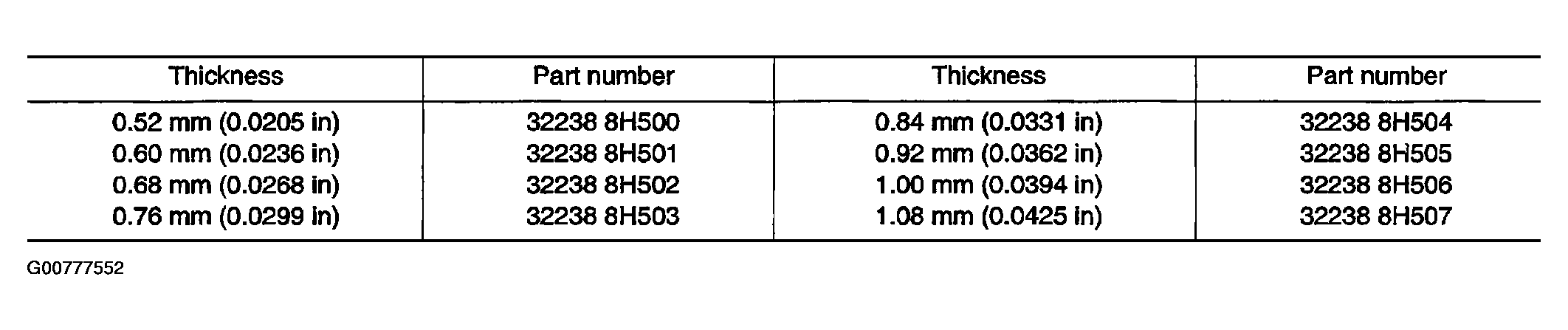

    Fig 11: Adjusting Shim Specifications
    G00777552Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install the 4th main gear with the specified orientation as shown, using Tool as shown.
    CAUTION: Install the 4th main gear with the orientation as shown.

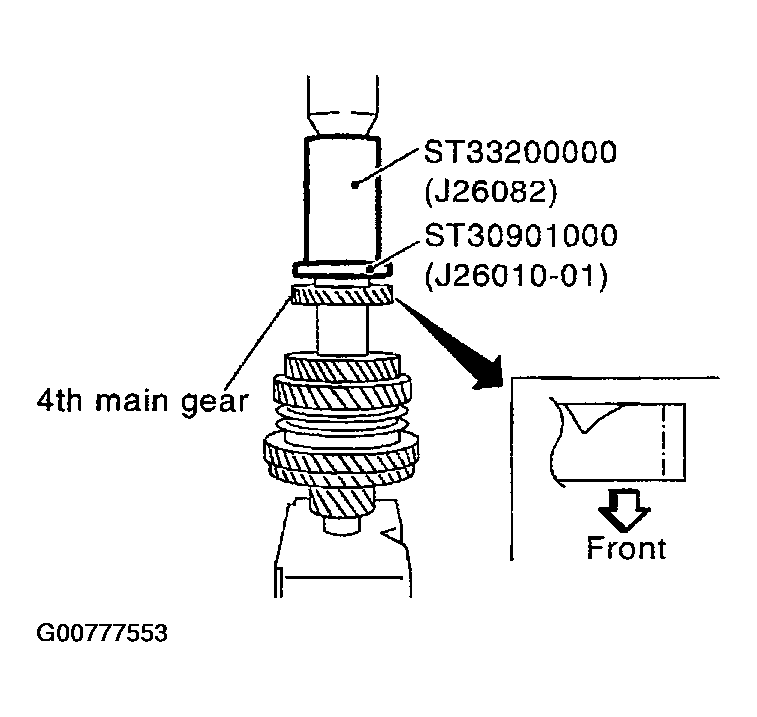

    Fig 12: Installing 4th Main Gear
    G00777553Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Install the 5th main gear with the specified orientation as shown, using Tool as shown.
    CAUTION: Install the 5th main gear with the orientation as shown.
  14. Install the 5th-6th mainshaft spacer.

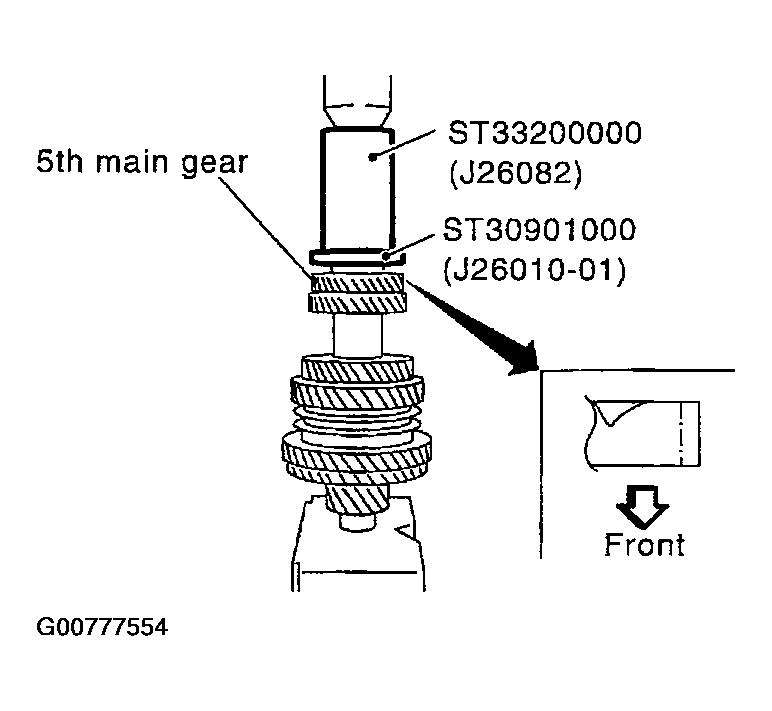

    Fig 13: Installing 5th Main Gear
    G00777554Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install the 6th main gear using Tool as shown.

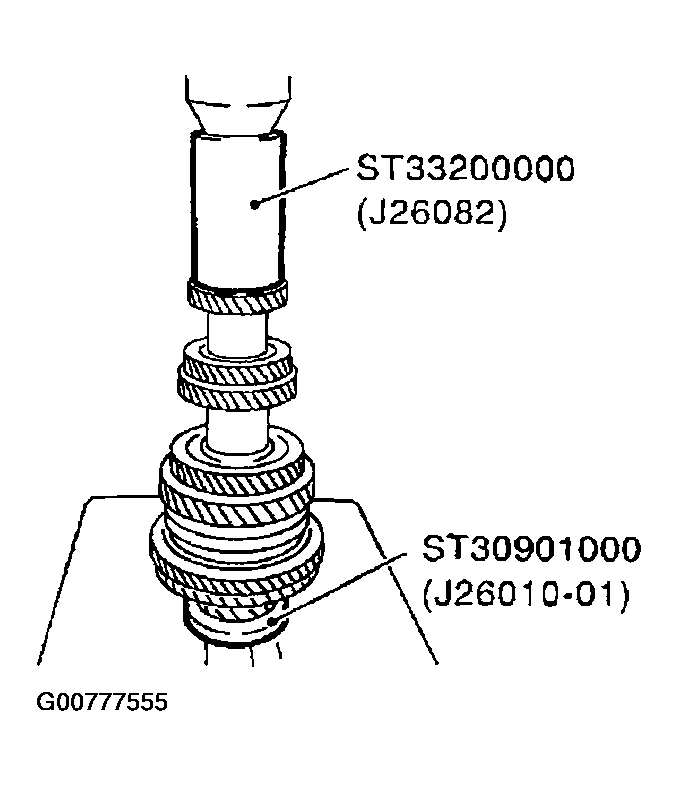

    Fig 14: Installing 6th Main Gear
    G00777555Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Select the 6th main adjusting shim and then install it onto the mainshaft.
    • Calculate thickness "S" of 6th main adjusting shim by procedure below so that end play dimension between 6th main gear and mainshaft rear bearing becomes the dimension specified.

    End play: 0 - 0.1 mm (0 - 0.004 in)

    Dimension "S" = ("S1" - "S2") + End play

    "S": thickness of adjusting shim

    "S2": Dimension from mainshaft standard face to mainshaft rear bearing press-fit end face

    "S2": Dimension from mainshaft standard face to 6th main gear end face

    CAUTION: Only 1 adjusting shim can be selected.

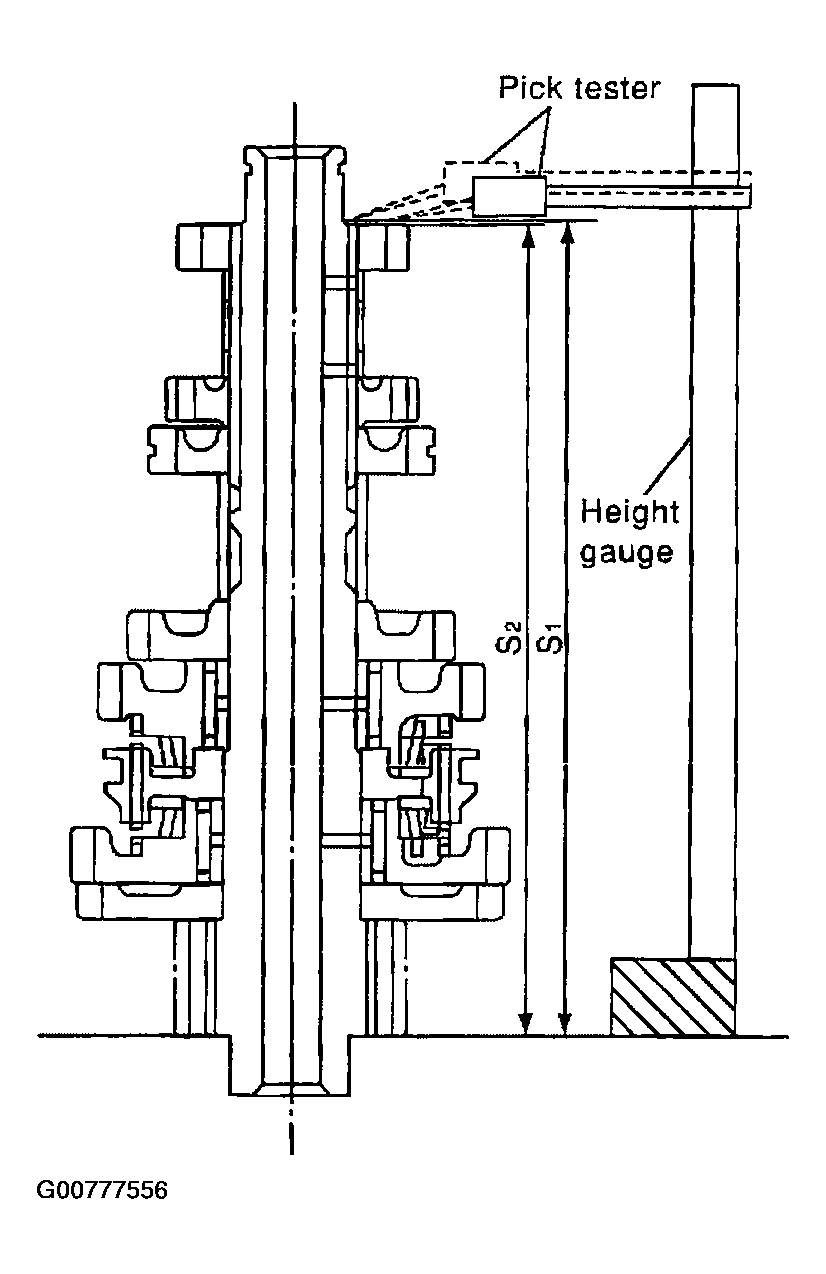

    Fig 15: Identifying Dimension From Mainshaft Standard Face To 6th Main Gear End Face
    G00777556Courtesy of NISSAN MOTOR CO., U.S.A.

    Adjusting Shim

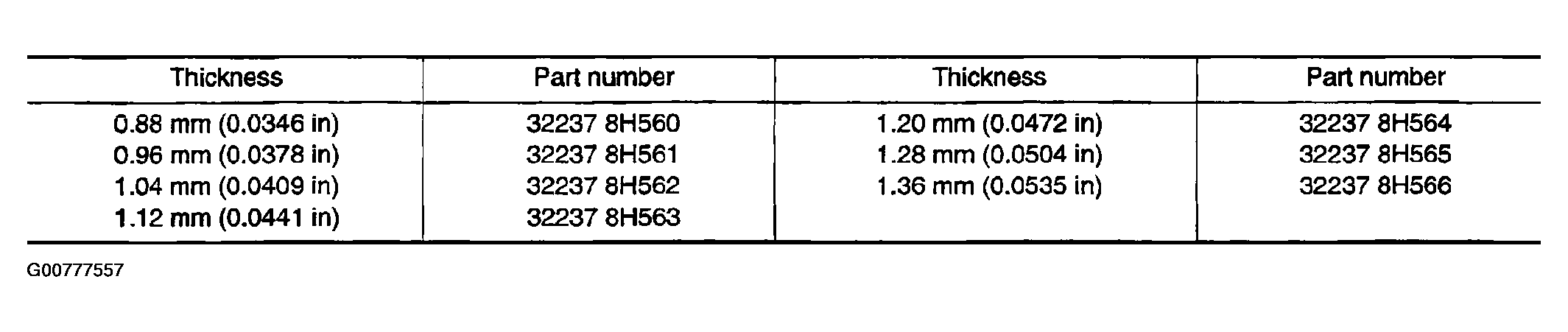

    Fig 16: Adjusting Shim Specifications
    G00777557Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Using a height gauge, measure the dimension "S1" and "S2" as shown.
    2. Install the selected 6th main adjusting shim to the mainshaft.
  17. Install the mainshaft rear bearing using Tool as shown.

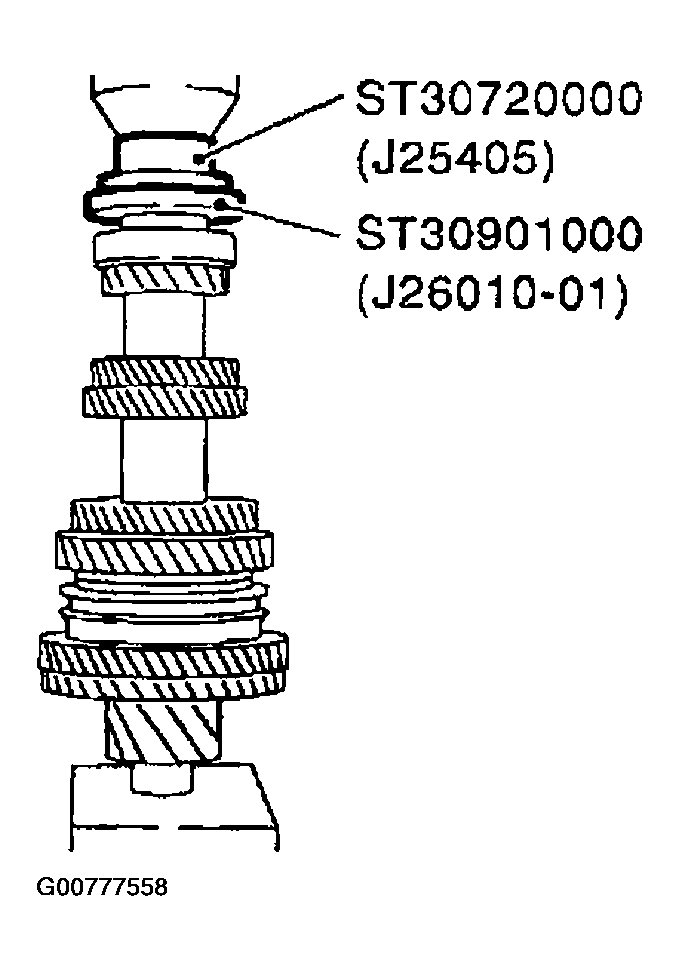

    Fig 17: Installing Mainshaft Rear Bearing
    G00777558Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Install the C-ring onto the mainshaft, and check that the end play of mainshaft rear bearing meets specifications.

    End play standard value: 0 - 0.06 mm (0 - 0.0024 in)

    • If the measurement is outside the specified standard value, reselect a new C-ring.

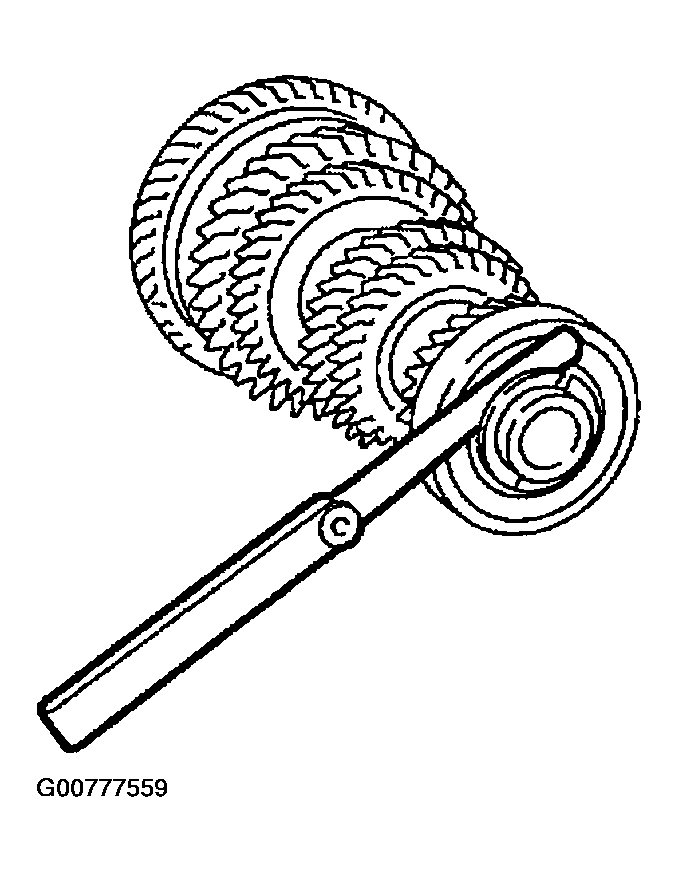

      Fig 18: Checking End Play Of Mainshaft Rear Bearing
      G00777559Courtesy of NISSAN MOTOR CO., U.S.A.

    C-Ring

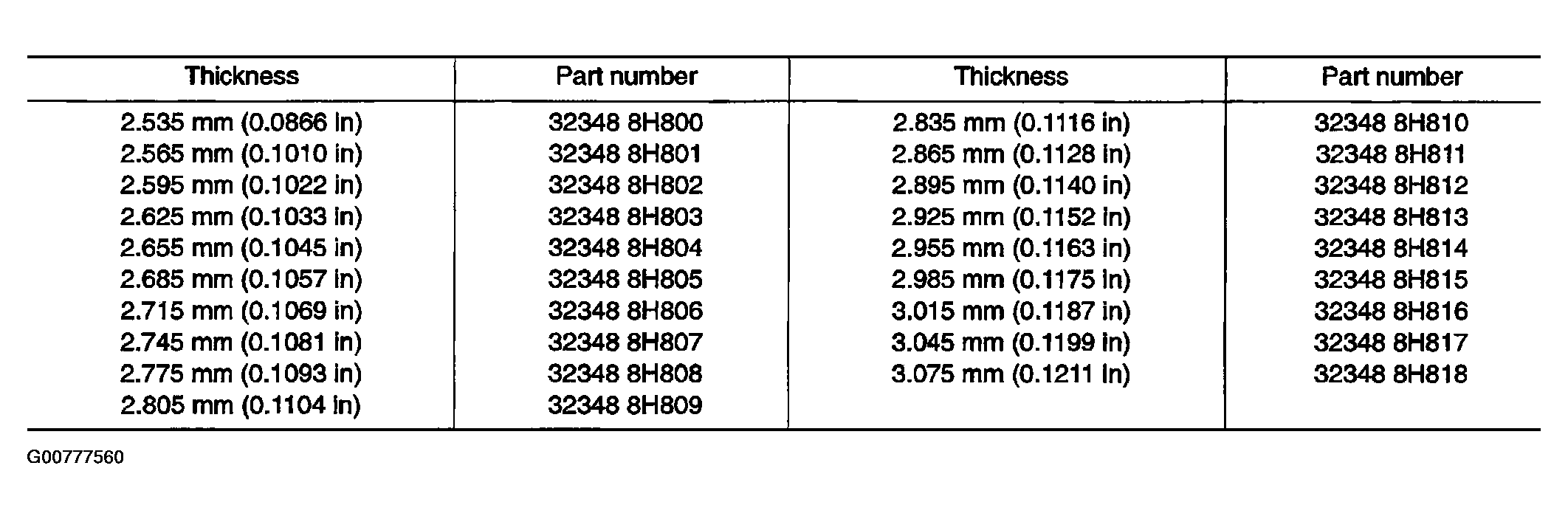

    Fig 19: C-Ring Specifications
    G00777560Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Fit the C-ring holder, and install the snap ring as shown.

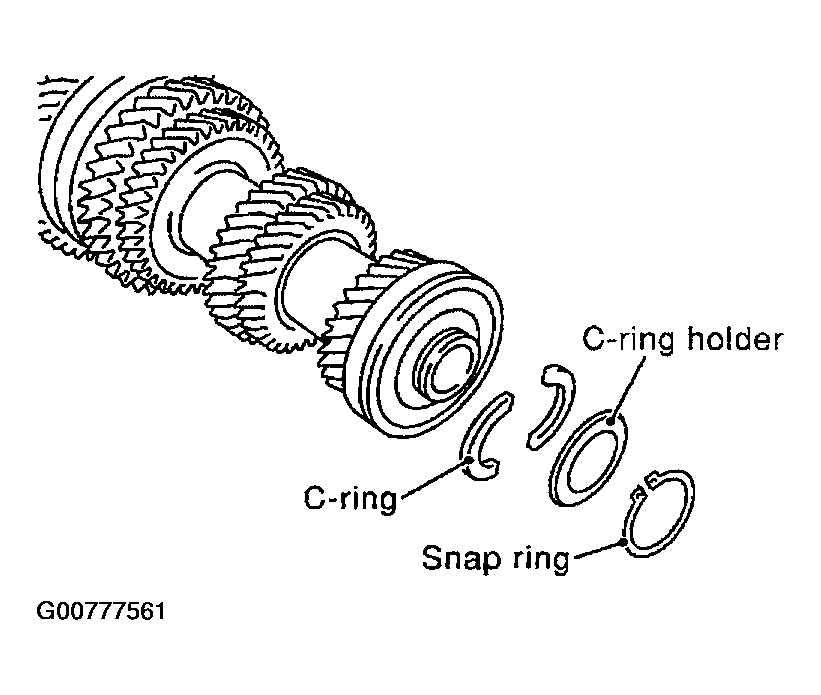

    Fig 20: Fitting C-Ring Holder, Snap Ring
    G00777561Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Check the end play of 1st and 2nd main gears as shown.

    End play standard value

    1st gear: 0.20 - 0.30 mm (0.0079 - 0.0118 in)

    2nd gear: 0.06 - 0.16 mm (0.0024 - 0.0063 in)

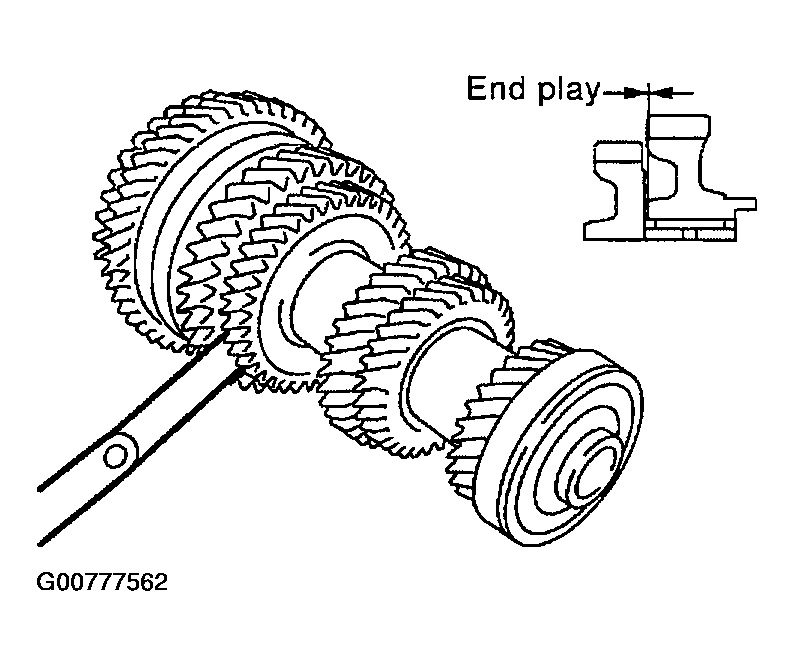

    Fig 21: Checking End Play Of 1st And 2nd Main Gears
    G00777562Courtesy of NISSAN MOTOR CO., U.S.A.
