M/T Oil: Replacement: Draining

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine and let it run to warm up the transaxle oil.
  2. Stop the engine. Remove drain plug and drain oil.
  3. Set a new gasket on the drain plug and install it in transaxle body.

    Drain plug: 30 - 39 N.m (3.1 - 4.0 kg-m, 23 - 28 ft-lb)

    CAUTION: Do not reuse gasket.

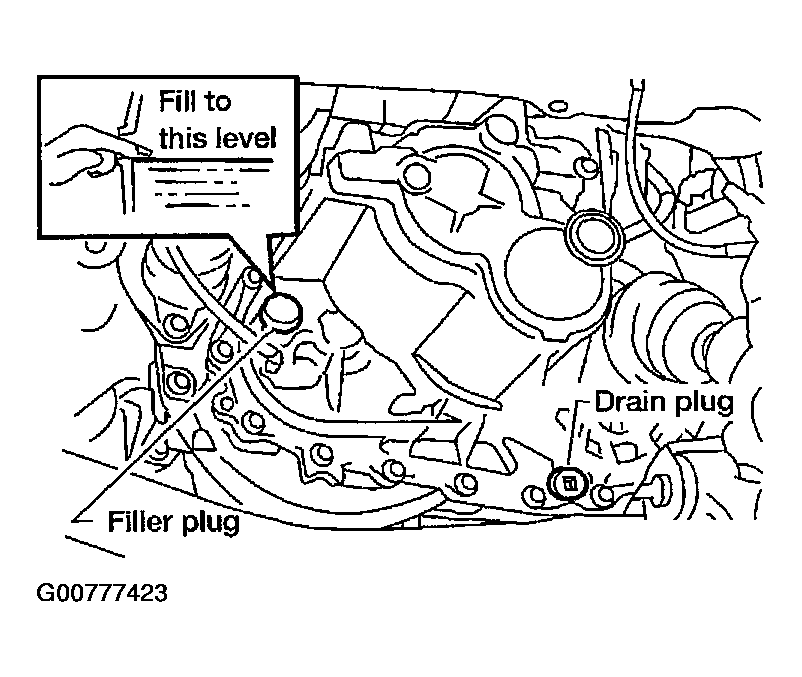

    Fig 1: Draining M/T Oil
    G00777423Courtesy of NISSAN MOTOR CO., U.S.A.
