Baulk ring clearance

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Press the baulk ring against cone, and measure clearance between baulk ring and cone. If measurement is below limit, replace it with a new one.

Clearance - standard

3rd and 4th: 0.9 -1.45 mm (0.035 - 0.0571 in)

5th and 6th: 0.95 -1.4 mm (0.0374 - 0.055 in)

Limit: 0.7 mm (0.028 in)

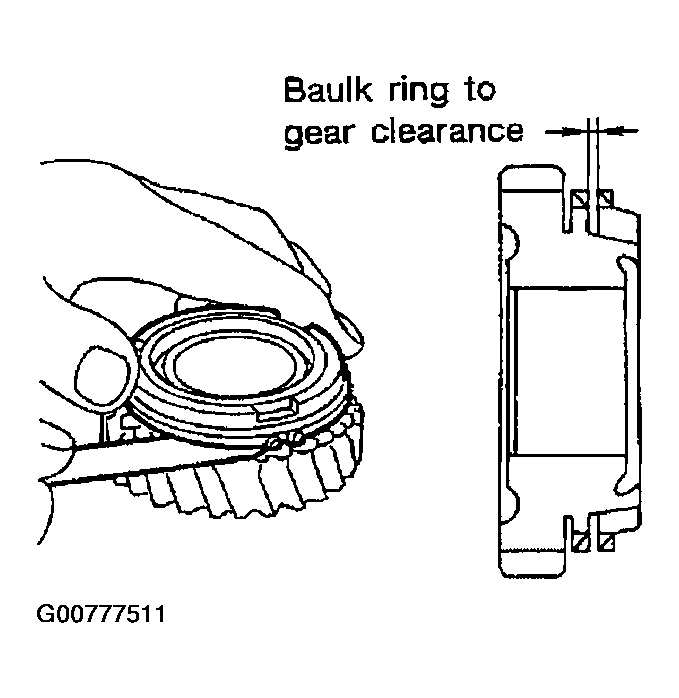

Fig 1: Checking Baulk Ring Clearance
G00777511Courtesy of NISSAN MOTOR CO., U.S.A.
