Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mounting bolts. Then, separate the final gear from the differential case.
  2. Remove the speedometer drive gear.
  3. Using a puller and Tool (drift), remove the differential side bearing (clutch housing side) as shown.

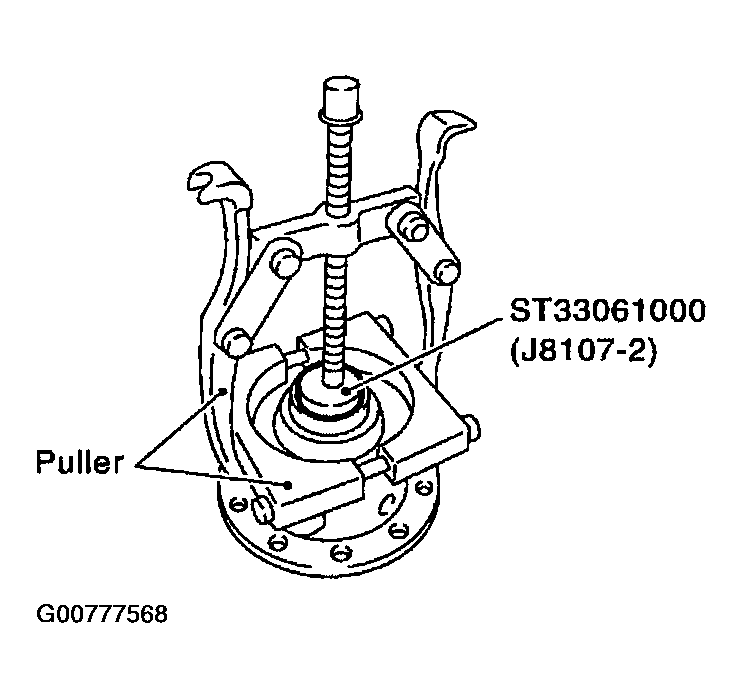

    Fig 1: Removing Differential Side Bearing (Clutch Housing Side)
    G00777568Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Using a puller and Tool (drift), remove the differential side bearing (transaxle case side) as shown.

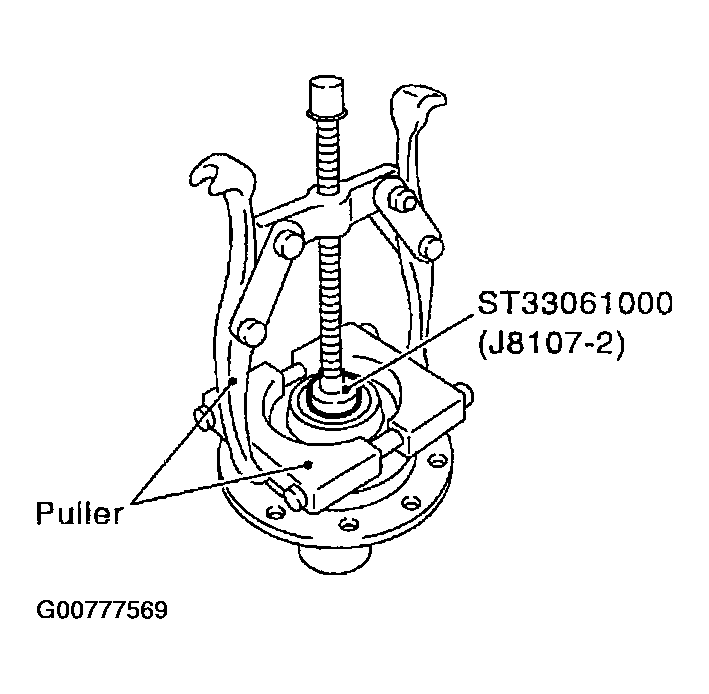

    Fig 2: Removing Differential Side Bearing (Transaxle Case Side)
    G00777569Courtesy of NISSAN MOTOR CO., U.S.A.
