Reverse Gear

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Description of the reverse gear components are as shown.

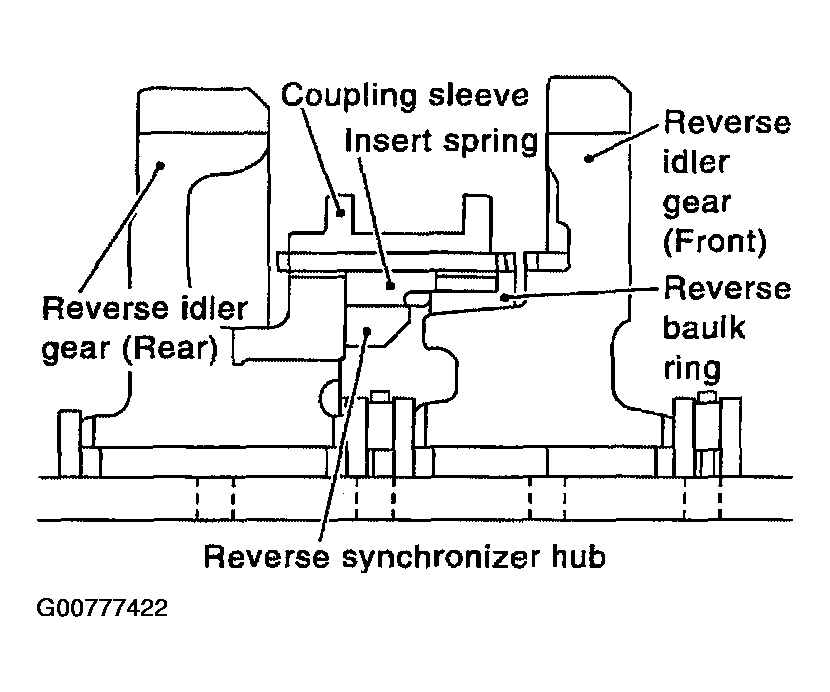

Fig 1: Identifying Reverse Gear Components
G00777422Courtesy of NISSAN MOTOR CO., U.S.A.
