Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

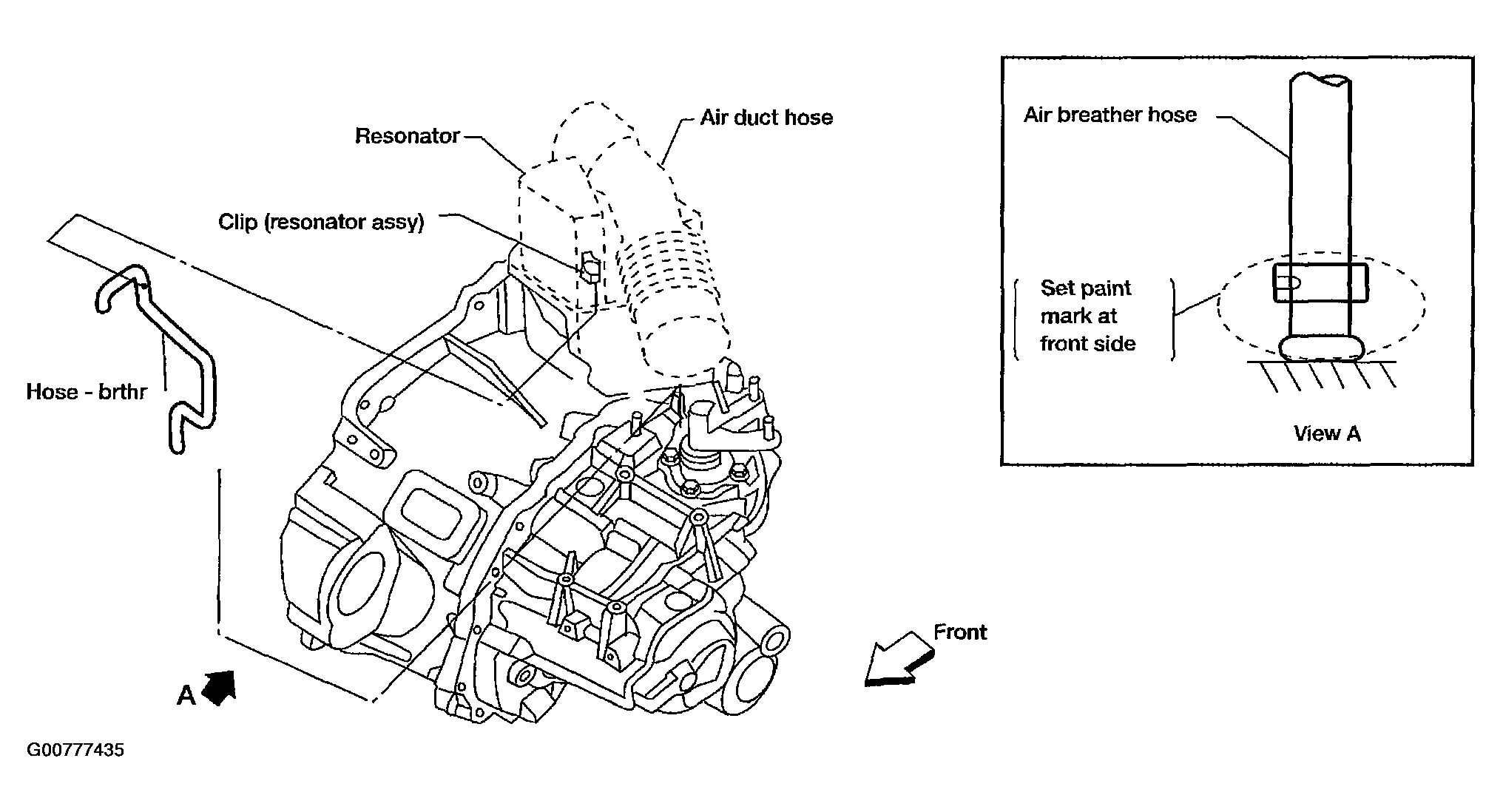

Fig 1: Removal And Installation Of Air Breather Hose
G00777435Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Make sure there are no pinched or restricted areas on the air breather hose caused by bending or winding when installing it.
  • Insert the air breather hose into the transaxle tube until the overlap area reaches the spool.
