Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Tighten the starter motor bolts to specification.
Starter motor bolts: 31 - 42 N.m (3.2 - 4.3 kg-m, 23 - 31 ft-lb)
Tighten the LH and rear mounts to specification. Refer to . "REMOVAL AND INSTALLATION ".
Tighten the transaxle to engine bolts to specification.

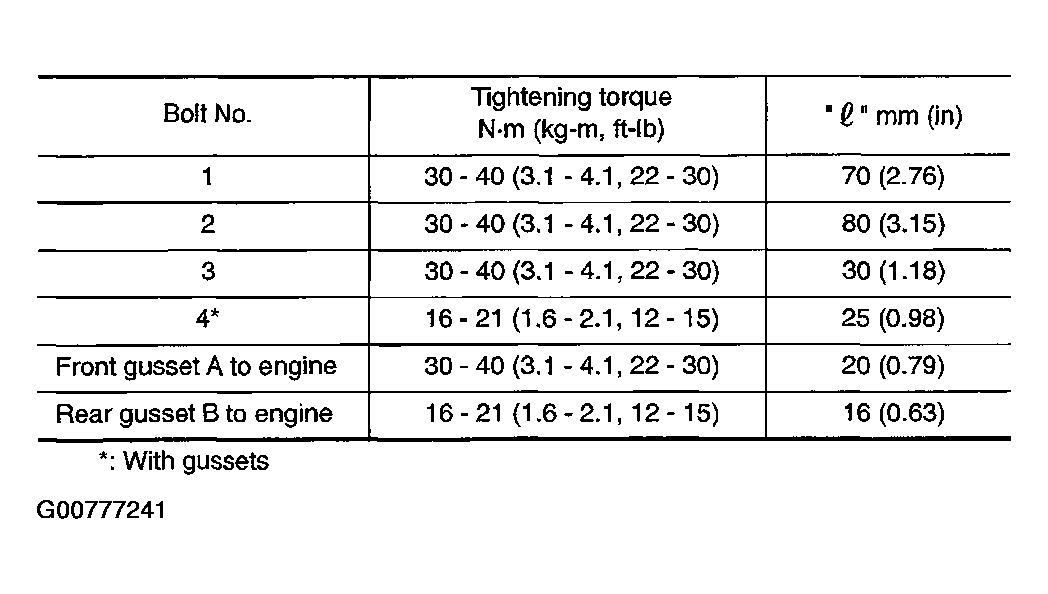

Fig 1: Transaxle To Engine Bolts Tightening Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

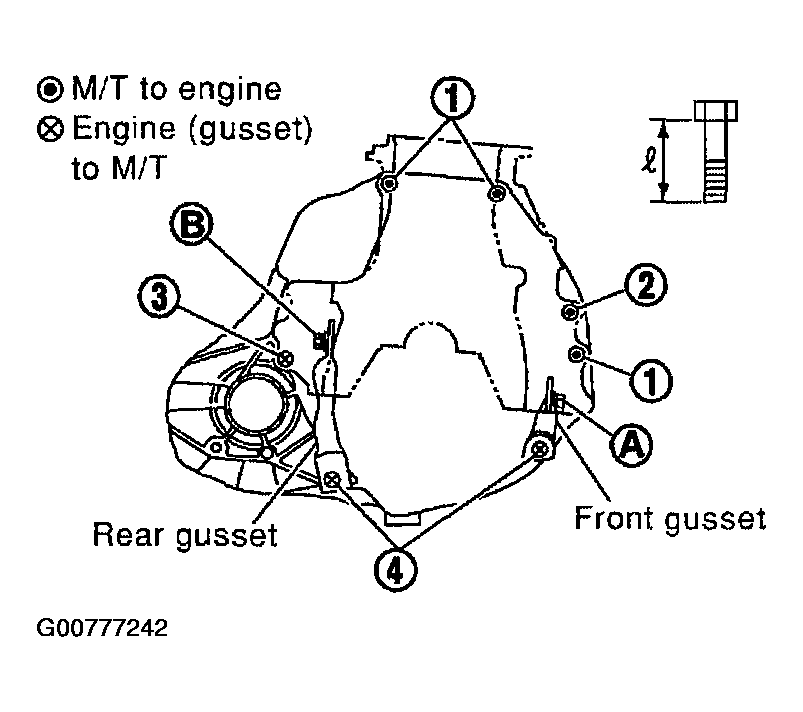

Fig 2: Identifying Tightening Sequence Of Transaxle To Engine Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
