Section 1172 (Manual Transaxle - RS5F70A)
>>
Service Data And Specifications (SDS)
>>
Clearance Between Baulk Ring and Gear
>>
1ST And 2ND Baulk Ring
1ST And 2ND Baulk Ring
WARNING:
This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

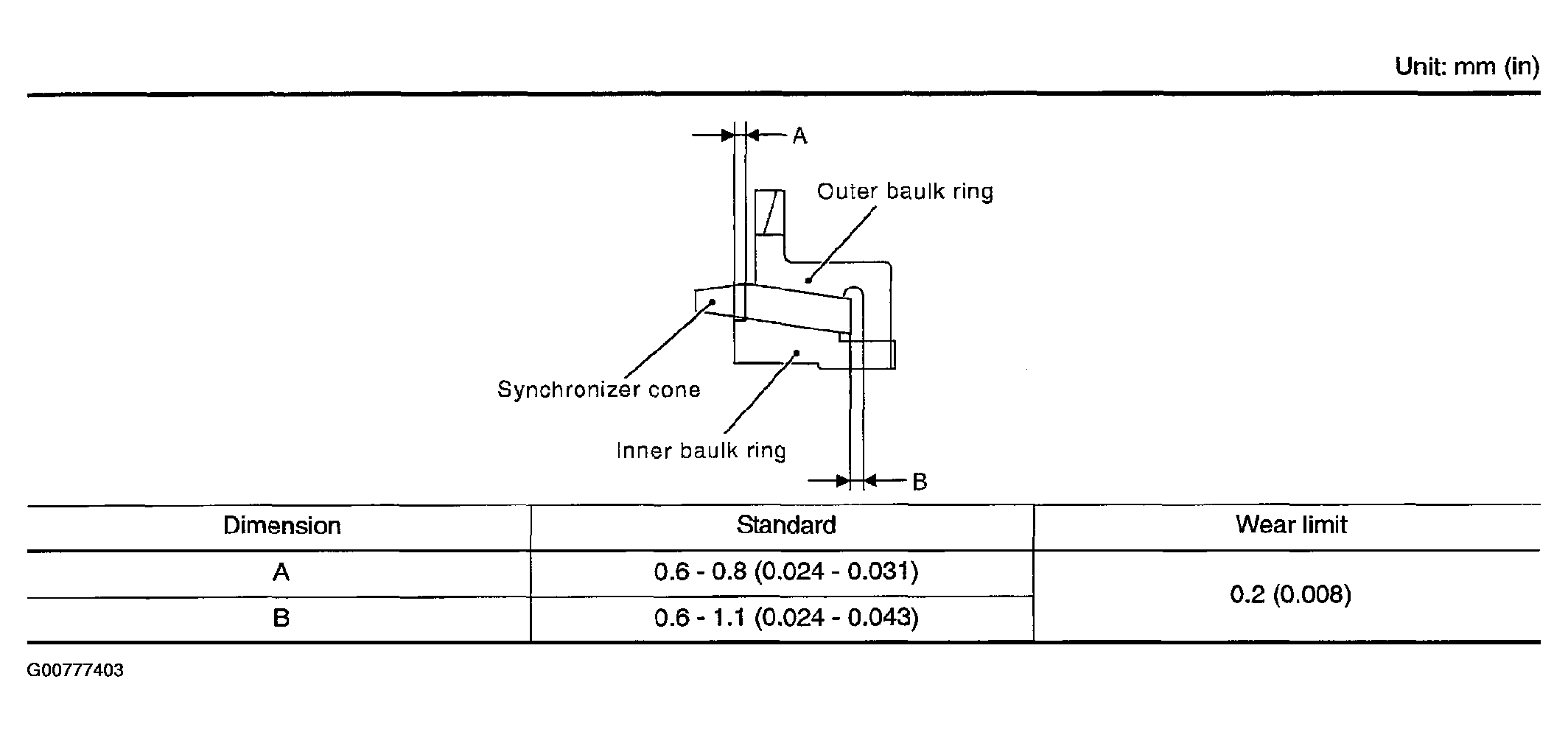

Fig 1: 1st And 2nd Baulk Ring Clearance
Courtesy of NISSAN MOTOR CO., U.S.A.
