MAINSHAFT And Gears: Inspection: Bearing

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Make sure bearings roll freely and are free from noise, cracks, pitting or wear.

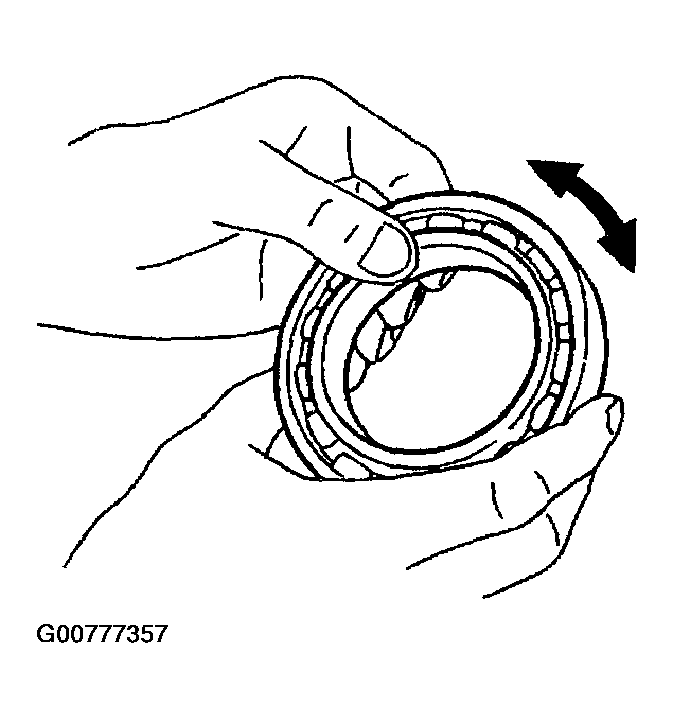

Fig 1: Checking Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure wear of inner and outer baulk ring as shown.

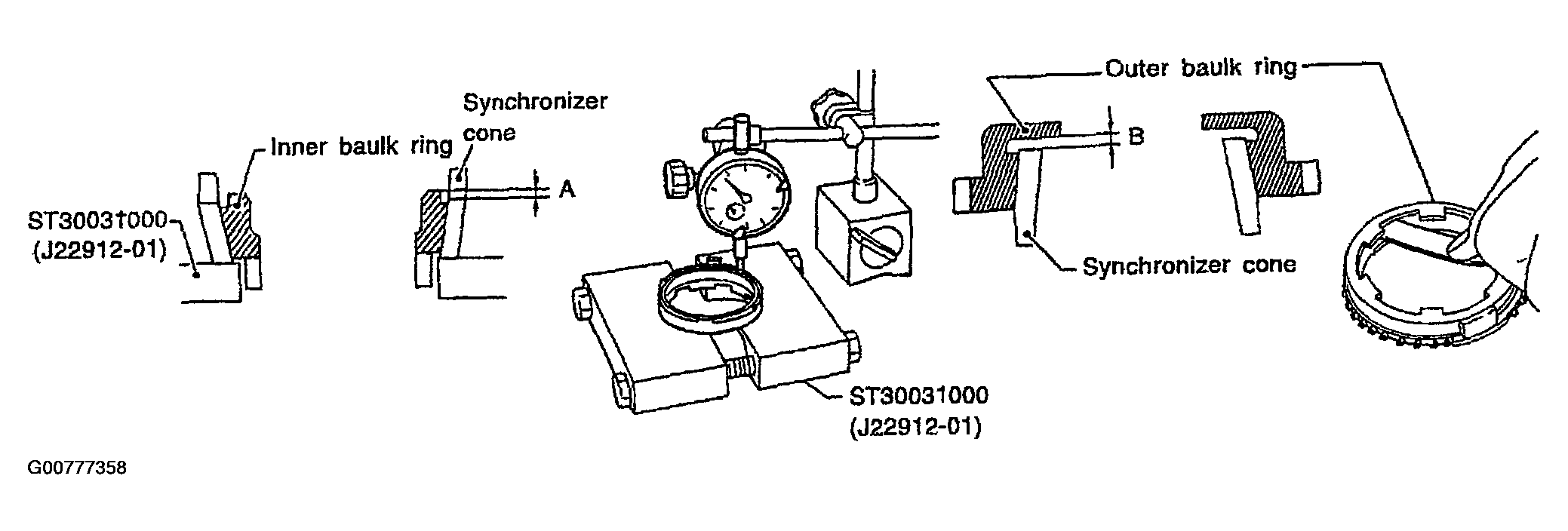

Fig 2: Measuring Wear Of Inner And Outer Baulk Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
- Place baulk rings in position on synchronizer cone.
- While holding baulk ring against synchronizer cone as far as it will go, measure dimensions "A" and "B" using Tool.
Standard

"A": 0.6 - 0.8 mm (0.024 - 0.031 in)

"B": 0.6 - 1.1 mm (0.024 - 0.043 in)

Wear limit: 0.2 mm (0.008 in)
If dimension "A" or "B" is smaller than the wear limit, replace outer baulk ring, inner baulk ring and synchronizer cone as a set.
