Oil Leakage And Oil Level

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that oil is not leaking from transaxle.
  2. Check oil level from filler plug mounting hole as shown.
    CAUTION: Never start the engine while checking the oil level.
  3. Install the filler plug in the transaxle case using a new gasket.

    Filler plug: 10 - 19 N.m (1.0 - 2.0 kg-m, 87 - 173 in-lb)

    CAUTION: Do not reuse gasket.

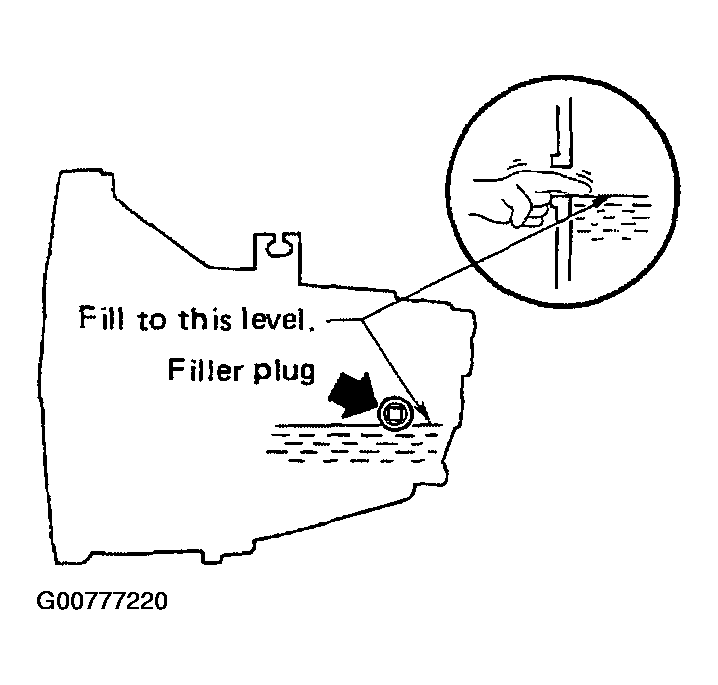

    Fig 1: Checking Oil Level From Filler Plug Mounting Hole
    G00777220Courtesy of NISSAN MOTOR CO., U.S.A.
