Double-Cone Synchronizer

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Double-cone synchronizer is used for 1st and 2nd gears to reduce operating force of the shift lever.

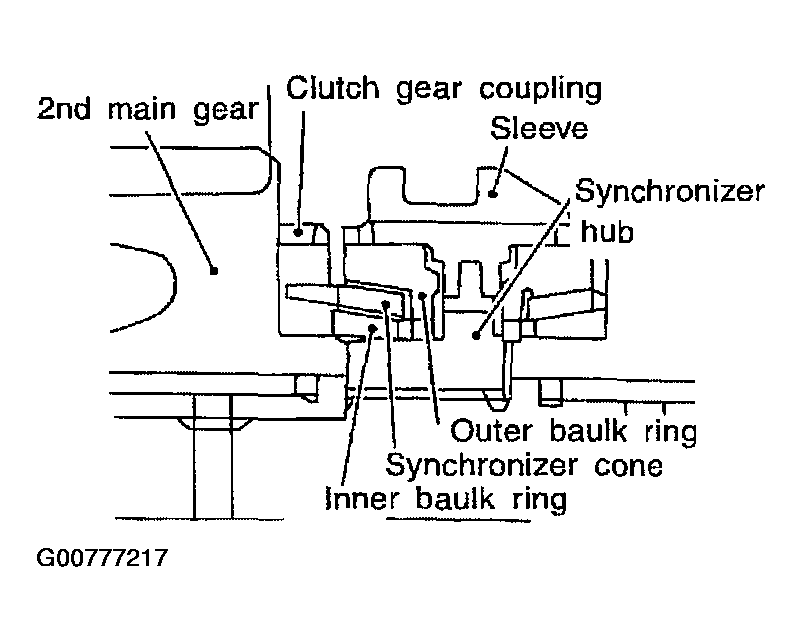

Fig 1: Identifying Double-Cone Synchronizer Components
G00777217Courtesy of NISSAN MOTOR CO., U.S.A.
