Transaxle Gear Control

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the illustration for the REMOVAL AND INSTALLATION PROCEDURE .

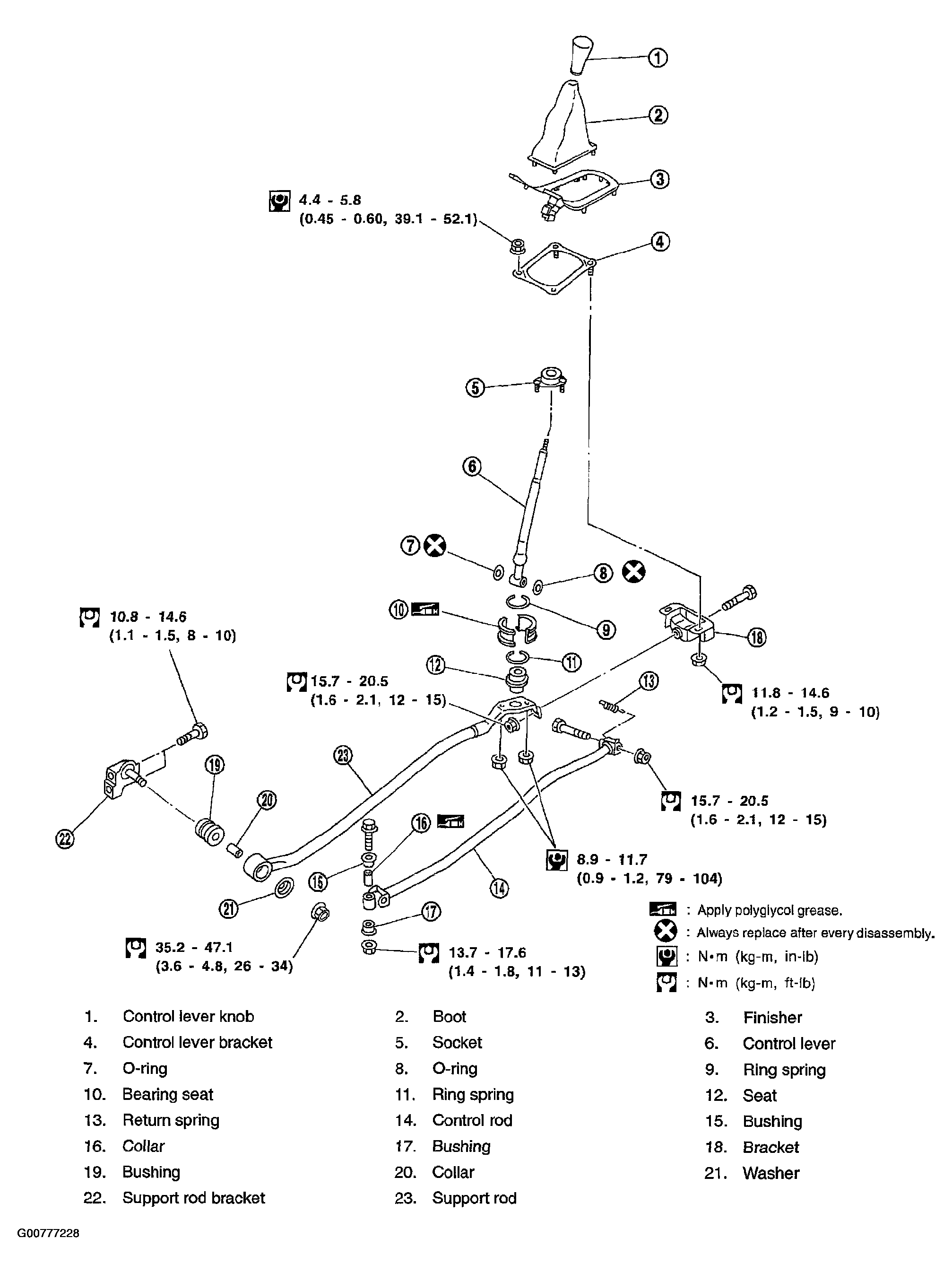

Fig 1: Removal And Installation Of Transaxle Gear Control And Tightening Specifications
G00777228Courtesy of NISSAN MOTOR CO., U.S.A.
