Striking Rod Oil Seal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transaxle control rod from yoke.
Remove the retaining pin from the yoke using Tool as shown.
CAUTION: Be careful not to damage the boot.

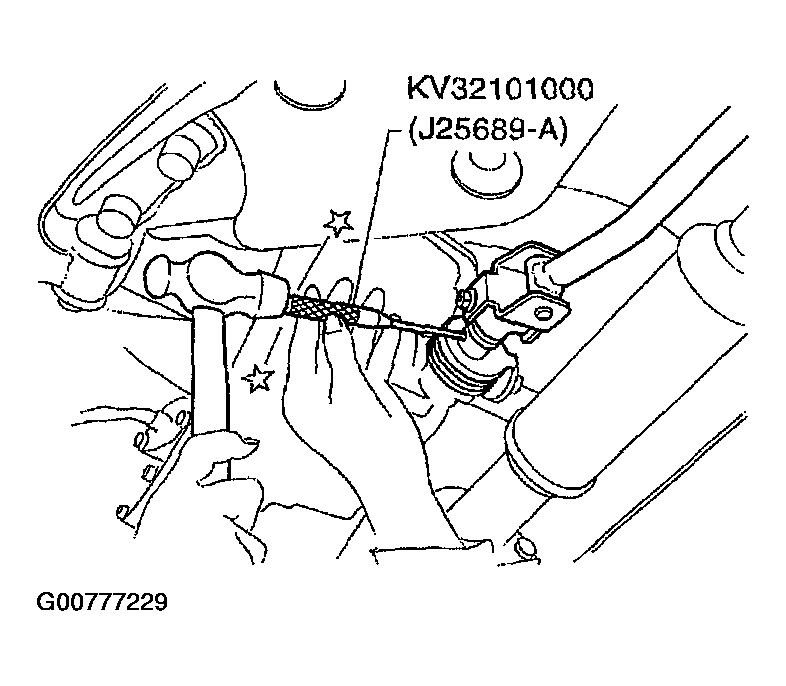

Fig 1: Removing Retaining Pin From Yoke
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the boot.
Remove the oil seal with a suitable tool (drift).

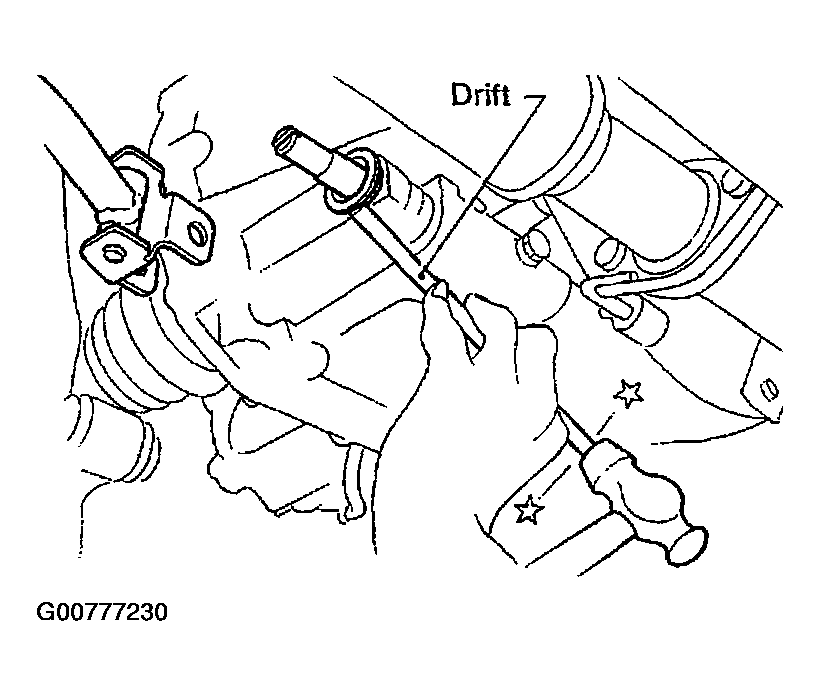

Fig 2: Removing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the oil seal using Tool as shown.
- Apply multi-purpose grease to the seal lip of the oil seal before installing.

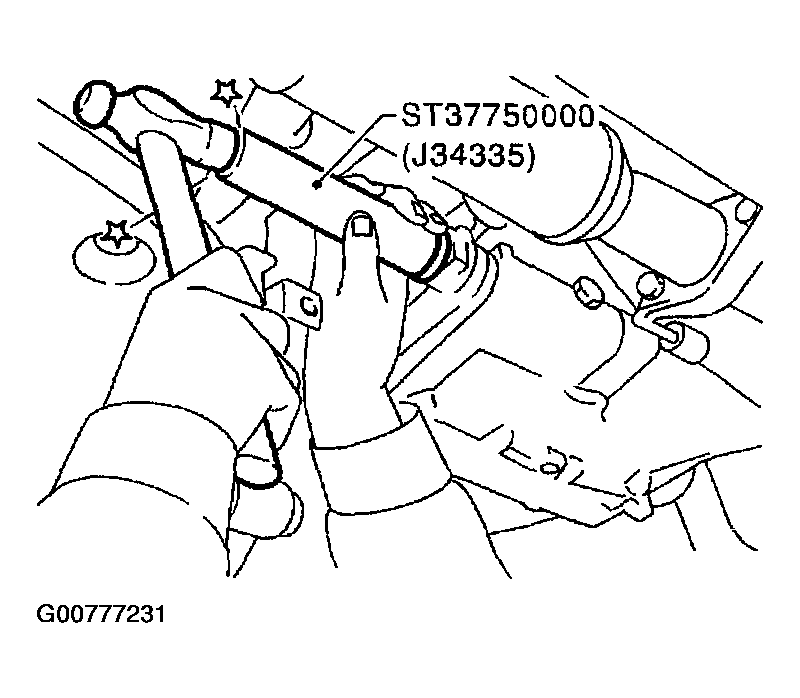

  Fig 3: Installing Rod Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install the boot.
Install the yoke and retaining pin.
Connect the transaxle control rod to the yoke.
