Operating Cylinder: Removal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the brake fluid from clutch hydraulic system.
    CAUTION: Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
  2. Remove the union bolt, the two copper washers, and the clutch hose from the operating cylinder. Discard the copper washers.
  3. Remove the operating cylinder bolts, and remove the operating cylinder.

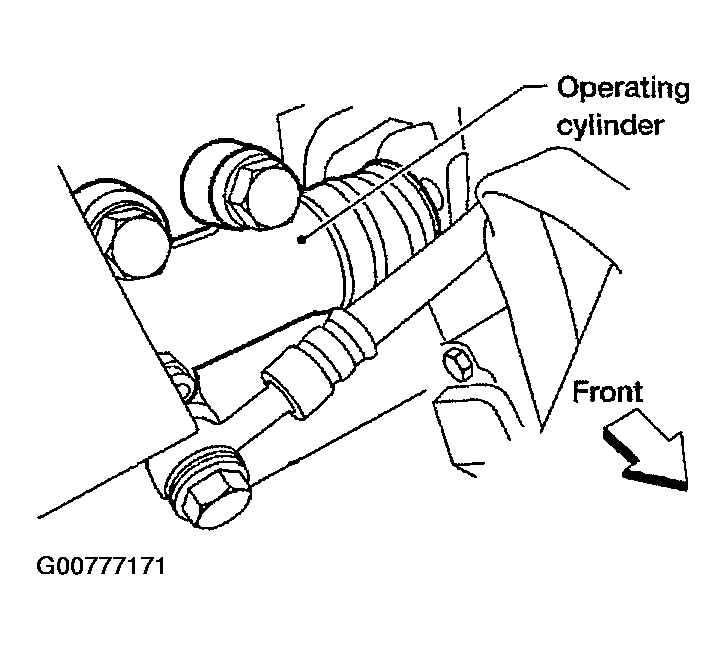

    Fig 1: Removing Operating Cylinder
    G00777171Courtesy of NISSAN MOTOR CO., U.S.A.
