Clutch Master Cylinder: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the push rod lock nut "A" to remove the clevis and lock nut "A".
  2. Remove the dust cover.
  3. Remove the stopper ring and stopper, and remove the push rod from the cylinder body. During removal, keep the push rod depressed, to prevent the piston inside the master cylinder from popping out. Discard the stopper ring.
  4. Remove the piston assembly from the cylinder body.
  5. Remove the return spring.
  6. Remove the pin using a pin punch, then remove the nipple and seal.

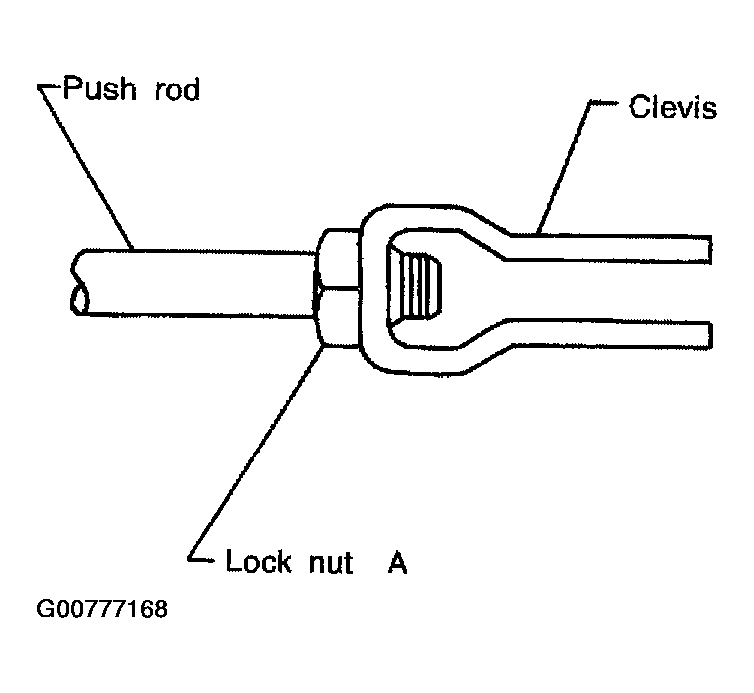

    Fig 1: Removing Clevis And Lock Nut 'A'
    G00777168Courtesy of NISSAN MOTOR CO., U.S.A.
