Clutch Master Cylinder: Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the return spring.
  2. Apply rubber lubricant to the sliding parts of the piston assembly, and insert the piston assembly into cylinder body.
  3. After installing the stopper on to the push rod, install the new stopper ring while keeping the piston assembly depressed by hand, so that the piston assembly will not pop out.
    CAUTION: The stopper ring cannot be reused. Always use a new stopper ring for assembly.
  4. Apply silicone grease to the dust cover and install the dust cover.
  5. Install the clevis on to push rod, and tighten the lock nut "A" to specification.

    Lock nut "A": 7.8 - 11.8 N-m (0.8 -1.2 kg-m, 69-104 in-lb)

  6. Install the seal and nipple on to the cylinder body, and install the pin using a pin punch.

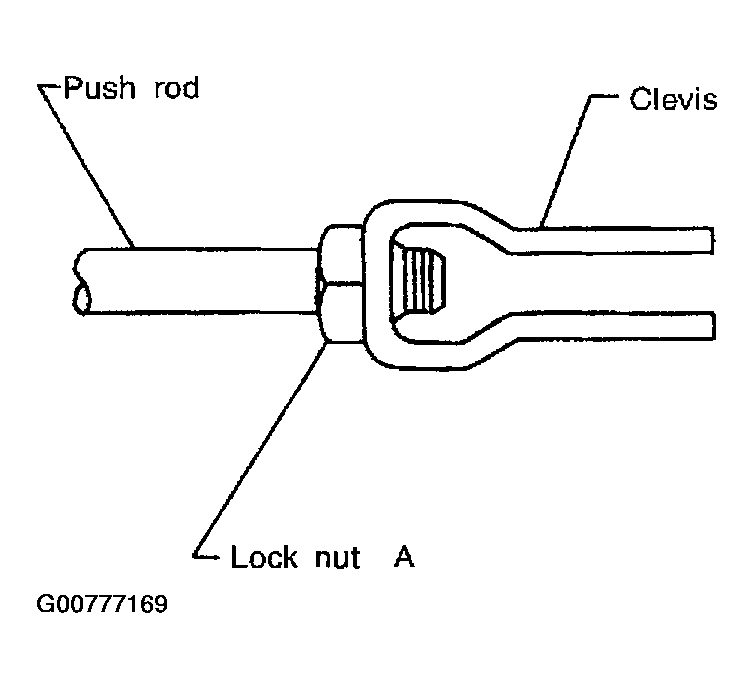

    Fig 1: Installing Clevis Onto Push Rod And Tightening Lock Nut 'A'
    G00777169Courtesy of NISSAN MOTOR CO., U.S.A.
