Clutch Disc, Clutch Cover And Flywheel: Installation
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
CAUTION:
- Do not clean the clutch disc with solvent.
- When installing the clutch disc, do not allow grease from the main driveshaft to contact the clutch disc friction surface.

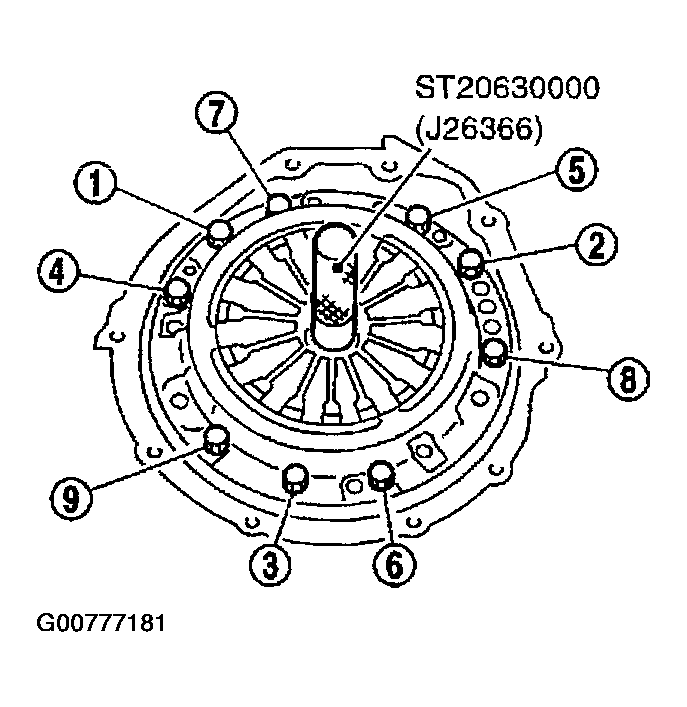

- Insert Tool into the clutch disc hub for correct alignment when installing the clutch cover and disc as shown.
- Tighten the bolts in numerical order in two steps as shown.
First step: 10 - 20 N-m (1.0 - 2.0 kg-m, 7-14 ft-lb)
Final step: 35 - 44 N-m (3.5 - 4.5 kg-m, 26 - 32 ft-lb)
