Clutch Cover And Flywheel

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check the spring toe height unevenness of the clutch cover with it installed on the vehicle.

Uneven limit: 0.7 mm (0.028 in)

If the measured uneven height is greater than the specified limit, adjust the spring toe height with Tool as shown.

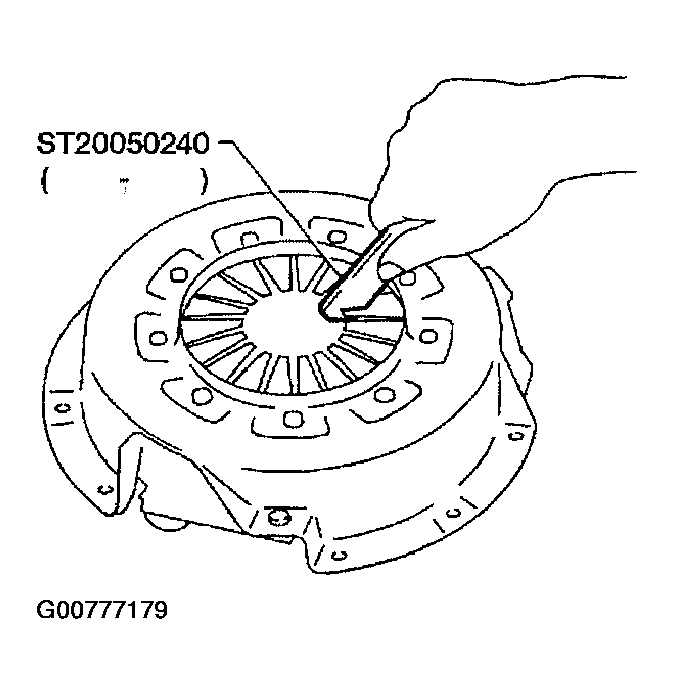

Fig 1: Checking Spring Toe Height
G00777179Courtesy of NISSAN MOTOR CO., U.S.A.
