Clutch Release Mechanism: Removal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transaxle. Refer to MANUAL TRANSAXLE .
  2. Move the withdrawal lever enough to remove the release bearing and release bearing spring, and remove the release bearing from the clutch lever.
  3. Support the clutch lever claws with an appropriate wood block, align the retaining pin with "A" as shown, and drive out the spring pins using a pin punch.
  4. Pull out the withdrawal lever and remove the clutch lever from the clutch housing.

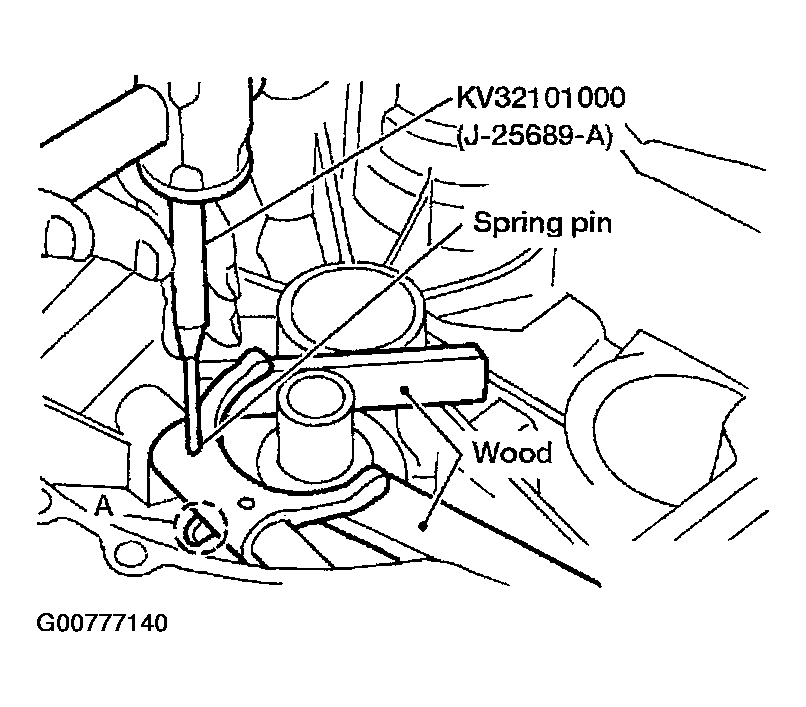

    Fig 1: Removing Clutch Lever From Clutch Housing
    G00777140Courtesy of NISSAN MOTOR CO., U.S.A.
