Clutch Release Mechanism: Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Apply grease to the clutch components. Otherwise, abnormal noise, poor clutch disengagement, or clutch damage may occur. Wipe the excess grease off completely, as it may cause the clutch components to slip and shudder.
  • Keep the clutch disc facing, pressure plate, and flywheel free of oil and grease.
  • Clean any old grease and abrasive materials off of the grease application areas as shown.
  • Apply approximately a 1 mm (0.04 in) thick coating of clutch sleeve grease evenly on the sliding part of the clutch lever and the release bearing spring.
  • Apply just enough clutch sleeve grease to fill up the release bearing inner groove.
  • Apply the clutch grease to the clutch disc and the input shaft spline. Install the clutch disc to the input shaft, remove the excess grease around the shaft, and remove the clutch disc.
  • Lightly and evenly apply the clutch sleeve grease on the sliding part of the release bearing. Install the release bearing and remove any excess grease around the bearing, then remove the release bearing.

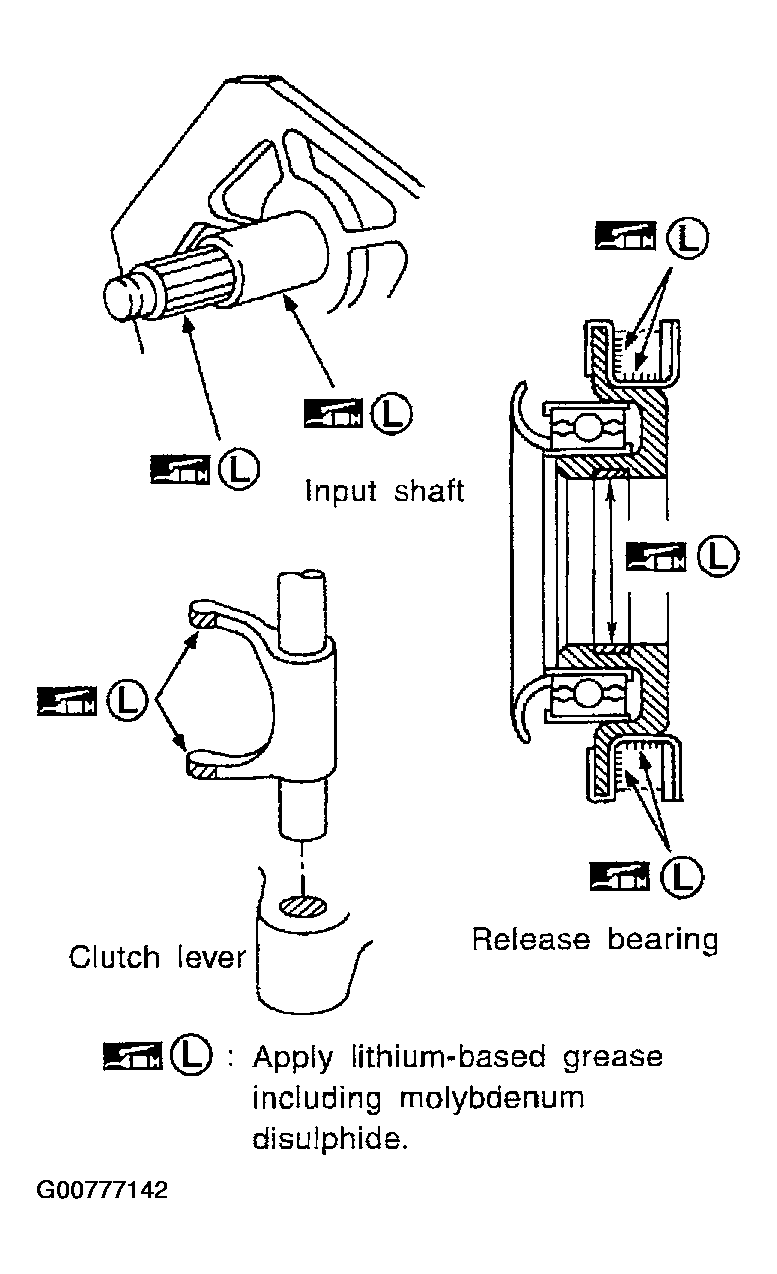

    Fig 1: Applying Grease To Clutch Components
    G00777142Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Assemble the clutch lever to clutch housing, and insert the withdrawal lever.
  2. Support the clutch lever claws with an appropriate wood block, and install new spring pins using a pin punch as shown.
    CAUTION: Spring pins cannot be reused.

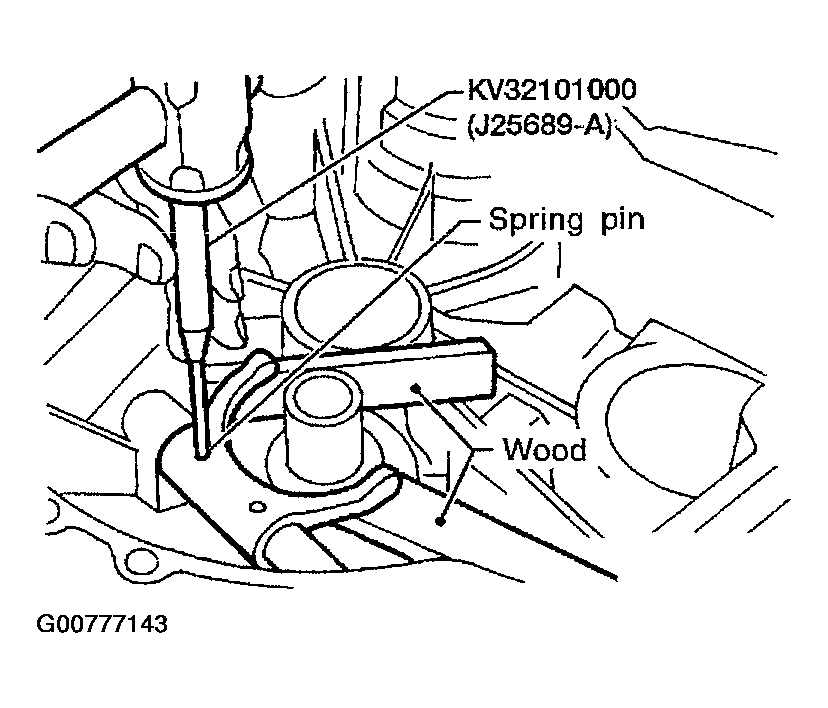

    Fig 2: Installing Spring Pins Into Clutch Lever Claws Using Special Tool
    G00777143Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the release bearing springs on to the release bearing as shown.

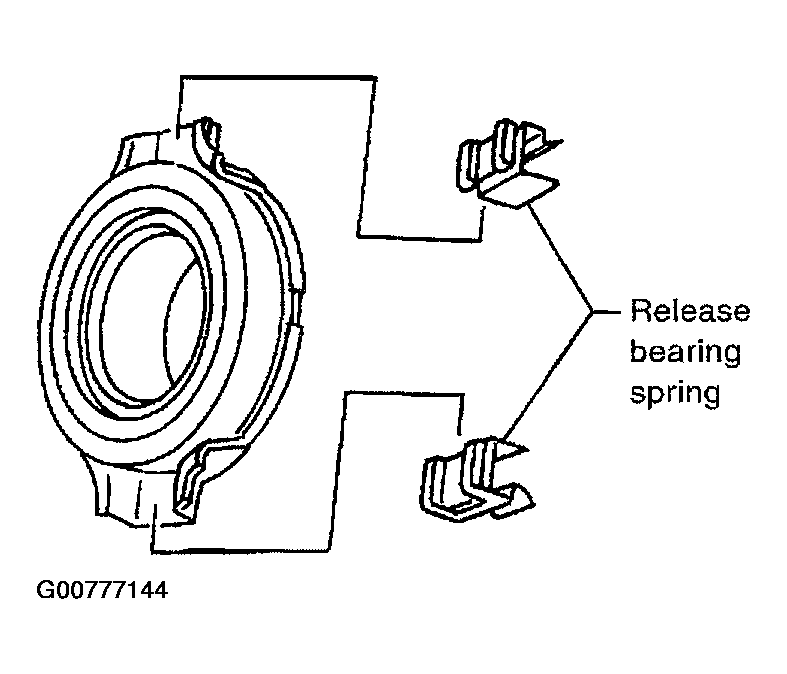

    Fig 3: Installing Release Bearing Springs On To Release Bearing
    G00777144Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Operate the withdrawal lever manually, press the release bearing spring from both sides, and install the release bearing onto the clutch lever securely.
    CAUTION: Make sure a click is heard when the release bearing spring is pressed from both sides.

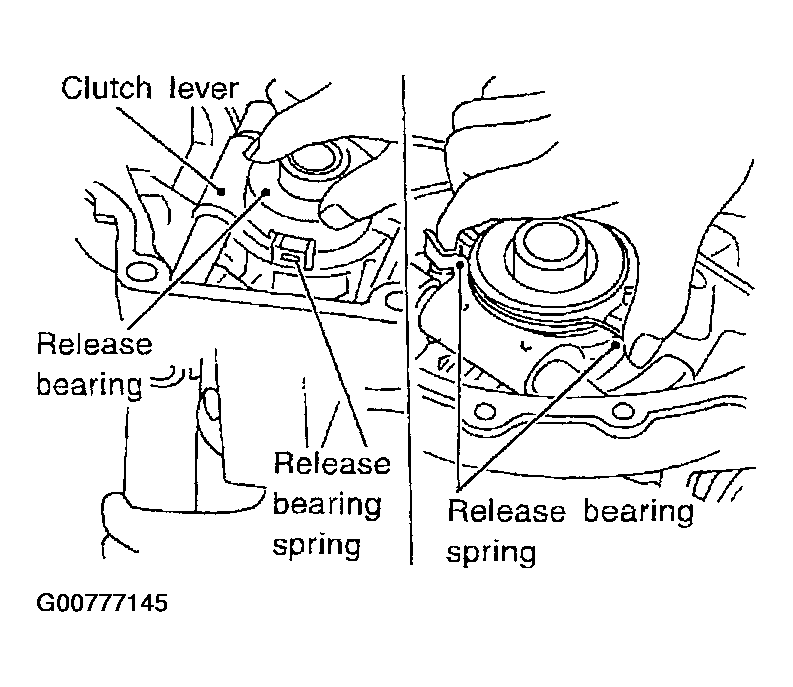

    Fig 4: Installing Release Bearing Onto Clutch Lever
    G00777145Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check that all parts operate smoothly when operating the withdrawal lever.
    CAUTION: Remove any excess grease.

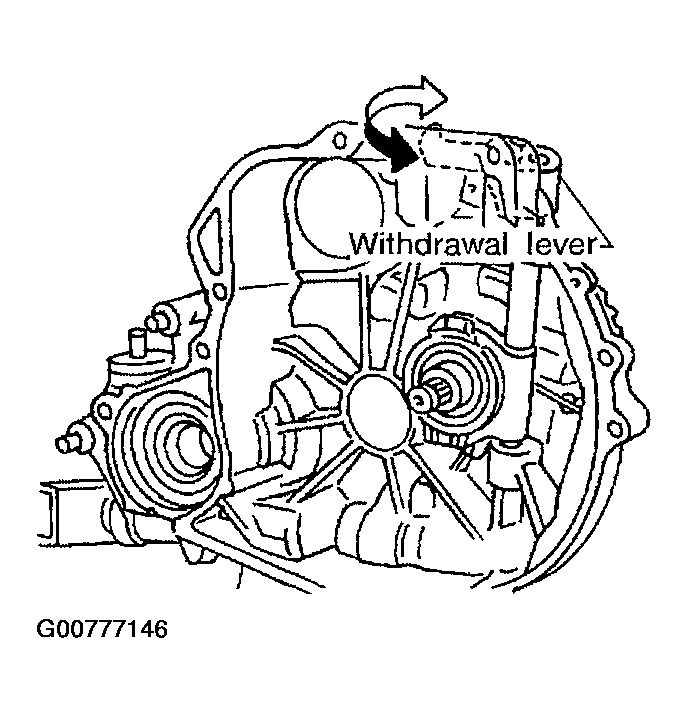

    Fig 5: Checking All Parts Moving Smoothly
    G00777146Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install the manual transaxle. Refer to MANUAL TRANSAXLE .
