Clutch Master Cylinder: Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the return spring.
  2. Apply rubber lubricant to the sliding parts of the piston assembly, and insert the piston assembly into the cylinder body.
  3. After installing the stopper to push rod, install a new stopper ring while keeping the piston assembly depressed by hand, so that the piston assembly will not pop out.
    CAUTION: The stopper ring cannot be reused. Always use a new stopper ring for assembly.
  4. Apply silicone grease, and install the dust cover.
  5. Install the clevis to push rod, and tighten lock nut "A" to specification.

    Lock nut "A": 7.8 - 11.8 N.m (0.8 - 1.2 kg-m, 69 -104 in-lb)

  6. Install the seal and nipple to the cylinder body, and install the pin using a pin punch.

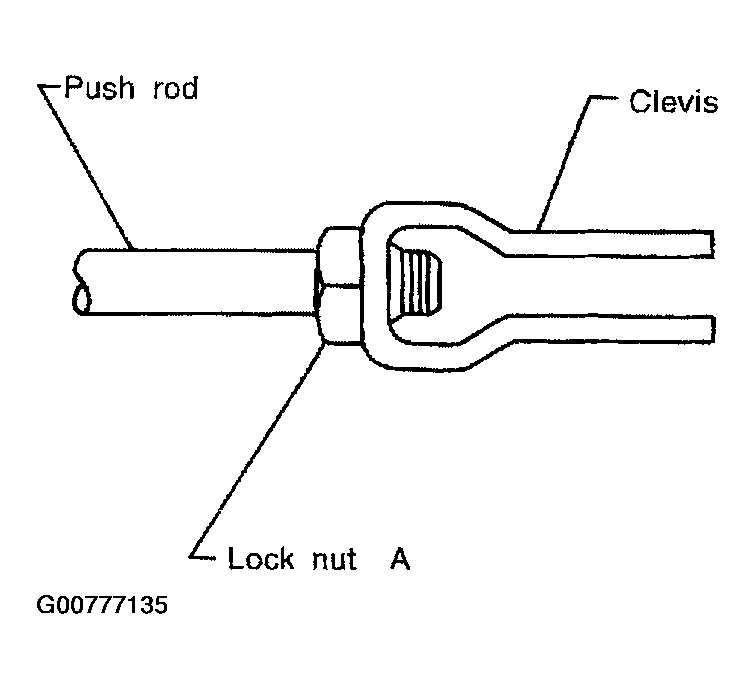

    Fig 1: Installing Clevis And Lock Nut "A"
    G00777135Courtesy of NISSAN MOTOR CO., U.S.A.
