Clutch Disc

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check the clutch disc for wear on the facing surface at the rivets as shown.
Wear limit of facing surface to rivet head: 0.3 mm (0.012 in)

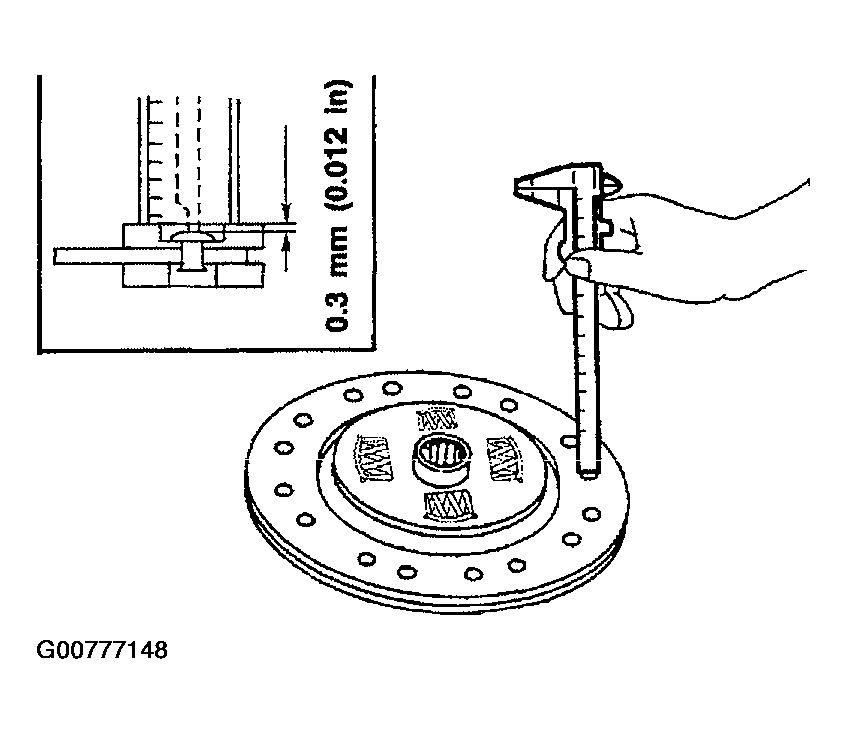

Fig 1: Checking Clutch Disc For Wear On Facing Surface At Rivets Using Special Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the clutch disc for backlash on the spline and runout on the facing.
Maximum backlash of spline: 0.9 mm (0.035 in)

(at outer edge of disc)

Runout limit: 1.0 mm (0.039 in)

Distance of runout check point: 102.5 mm (4.04 in)

(from hub center)

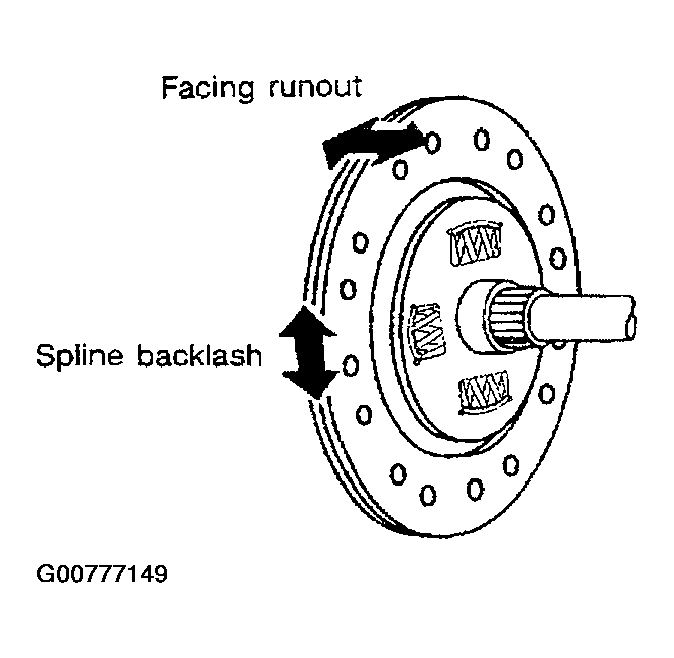

Fig 2: Checking Clutch Disc For Backlash On Spline And Runout On Facing
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the clutch disc for burns, discoloration, and oil or grease leakage. Replace if necessary.
