With GST

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check air passage continuity and operation delay time under the following conditions.

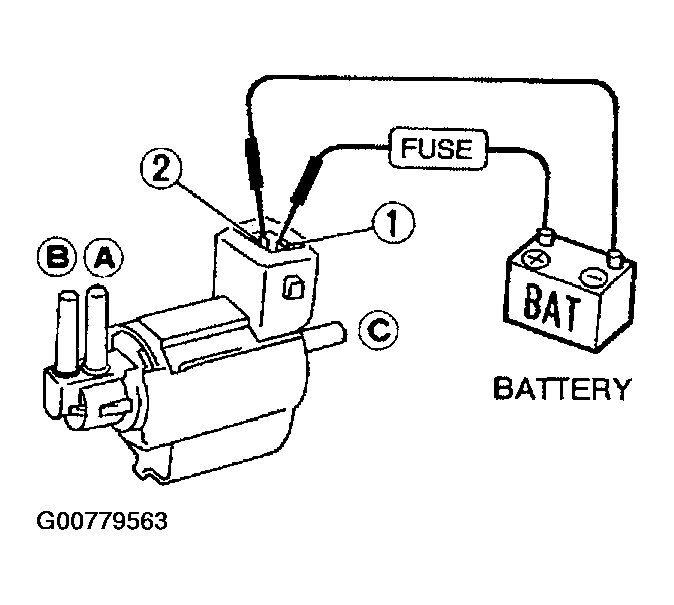

Fig 1: Checking Air Passage Continuity & Operation Delay Time (With GST)

Courtesy of NISSAN MOTOR CO., U.S.A.

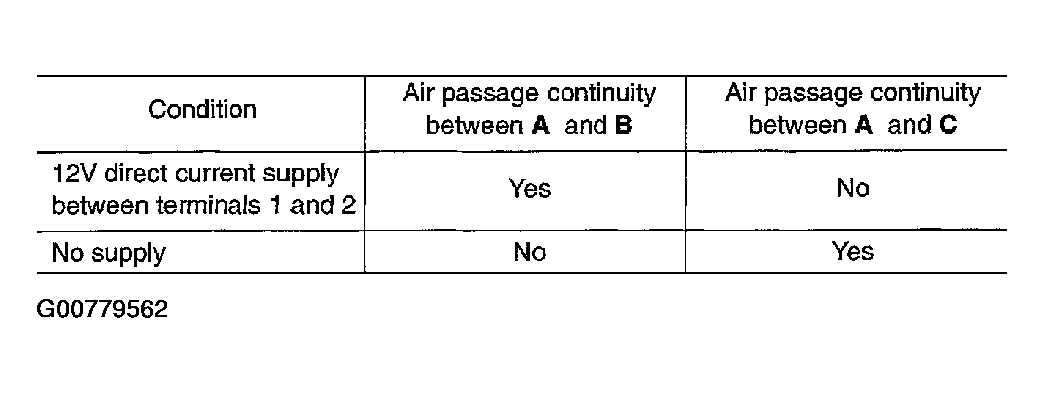

Fig 2: Air Passage Continuity Table (With GST)

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.
