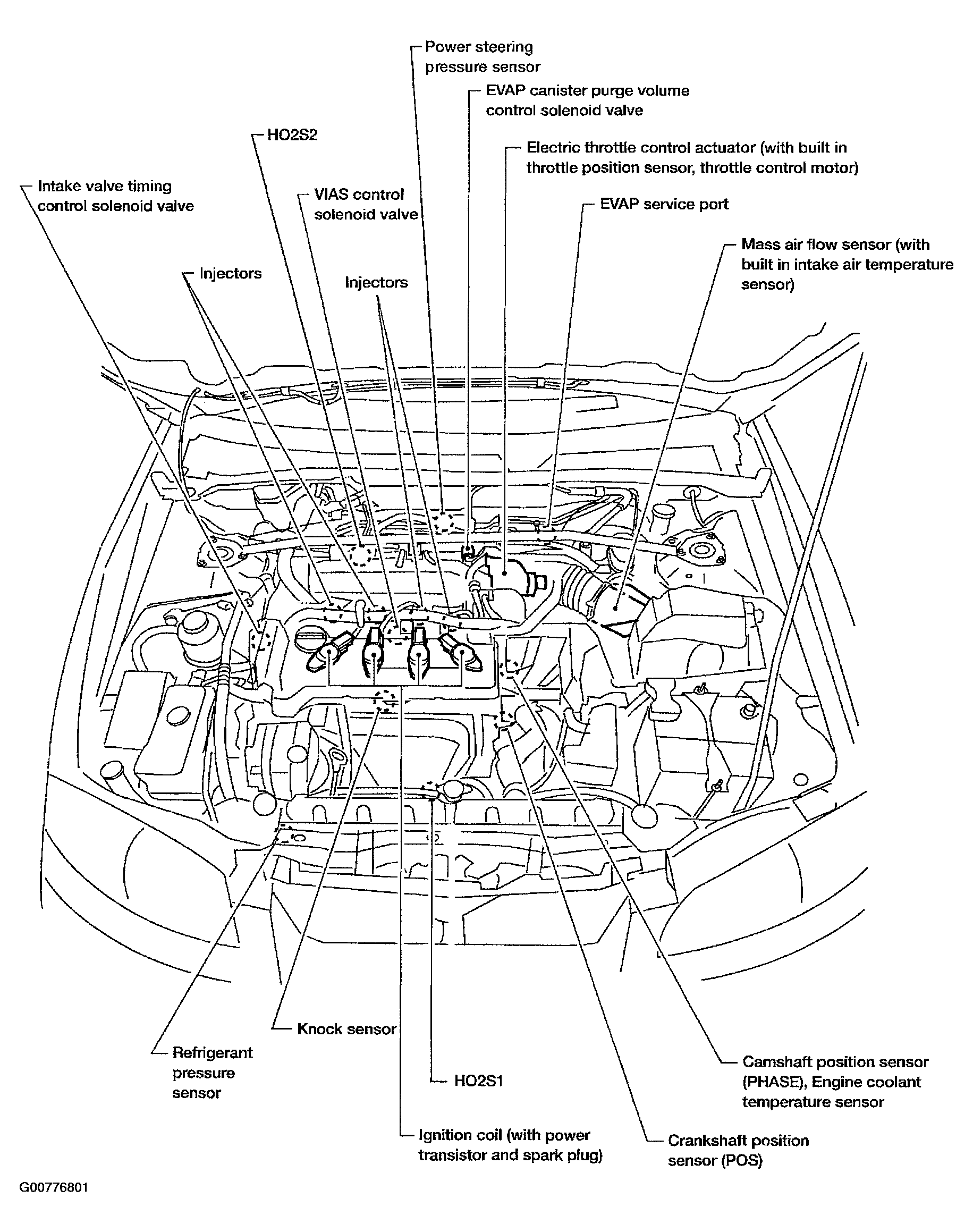

Fig 1: Locating Engine Control Components - A/T Models ULEV & M/T Models (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

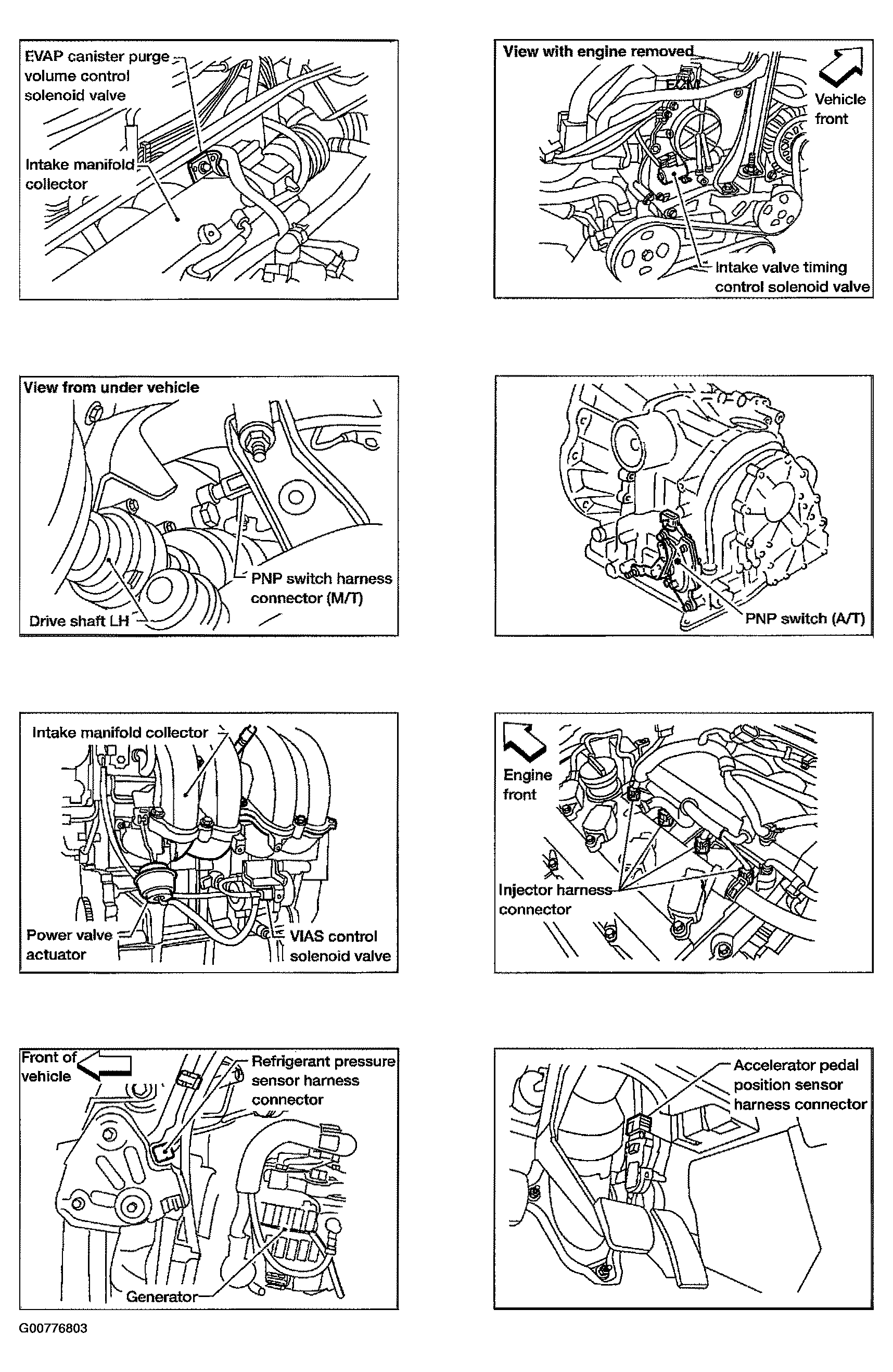

Fig 2: Locating Engine Control Components - A/T Models ULEV & M/T Models (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

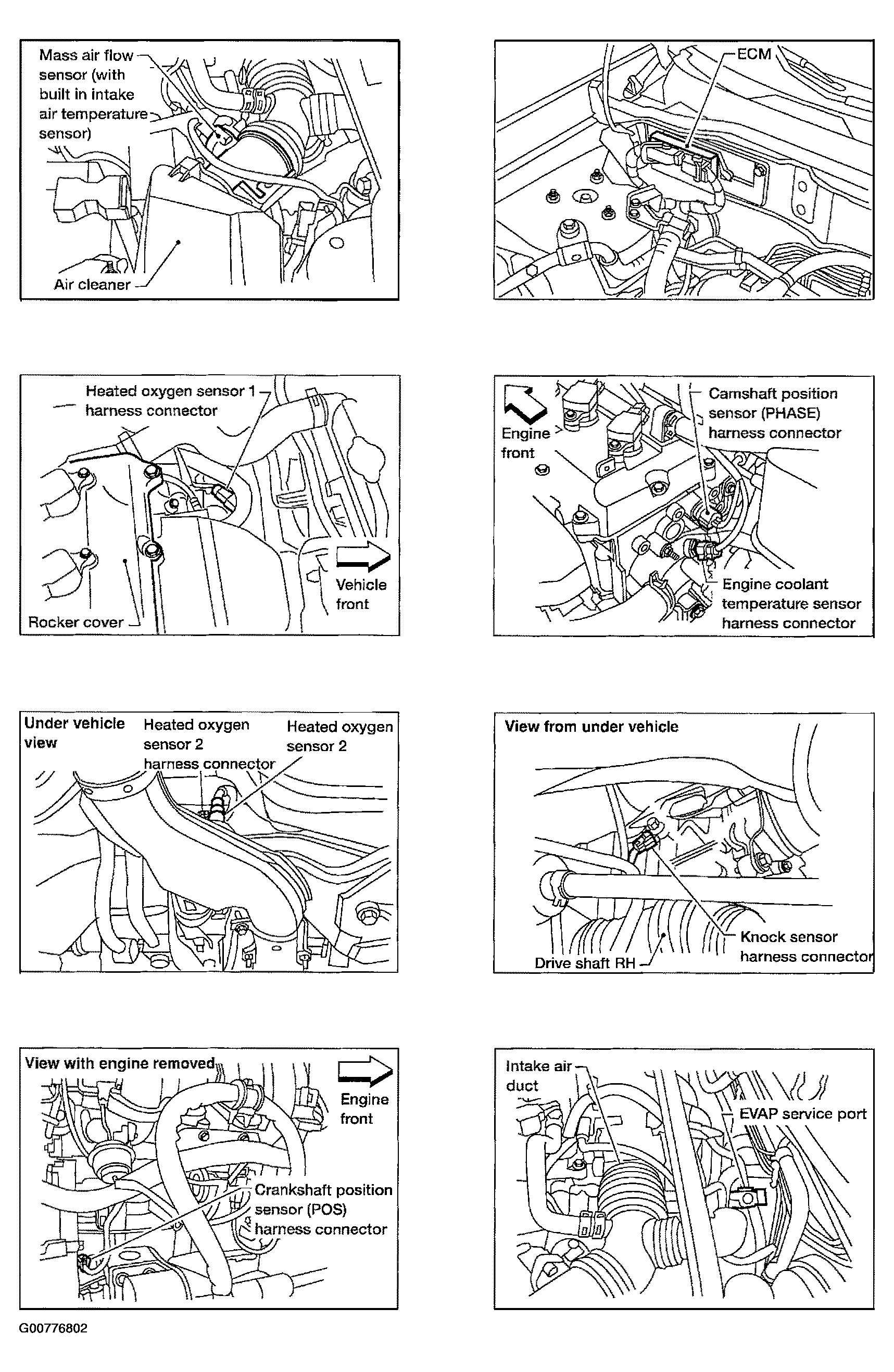

Fig 3: Locating Engine Control Components - A/T Models ULEV & M/T Models (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

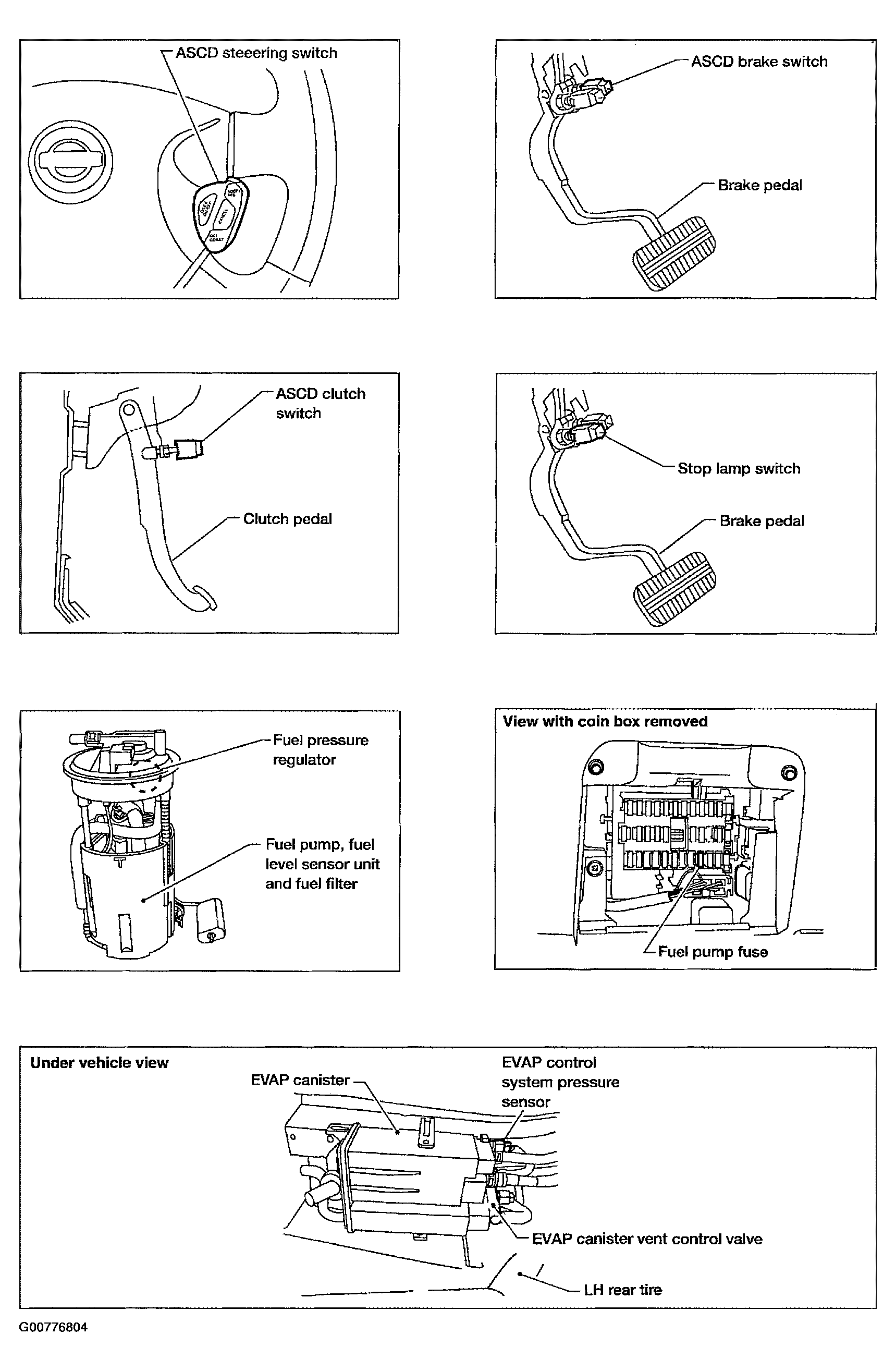

Fig 4: Locating Engine Control Components - A/T Models ULEV & M/T Models (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

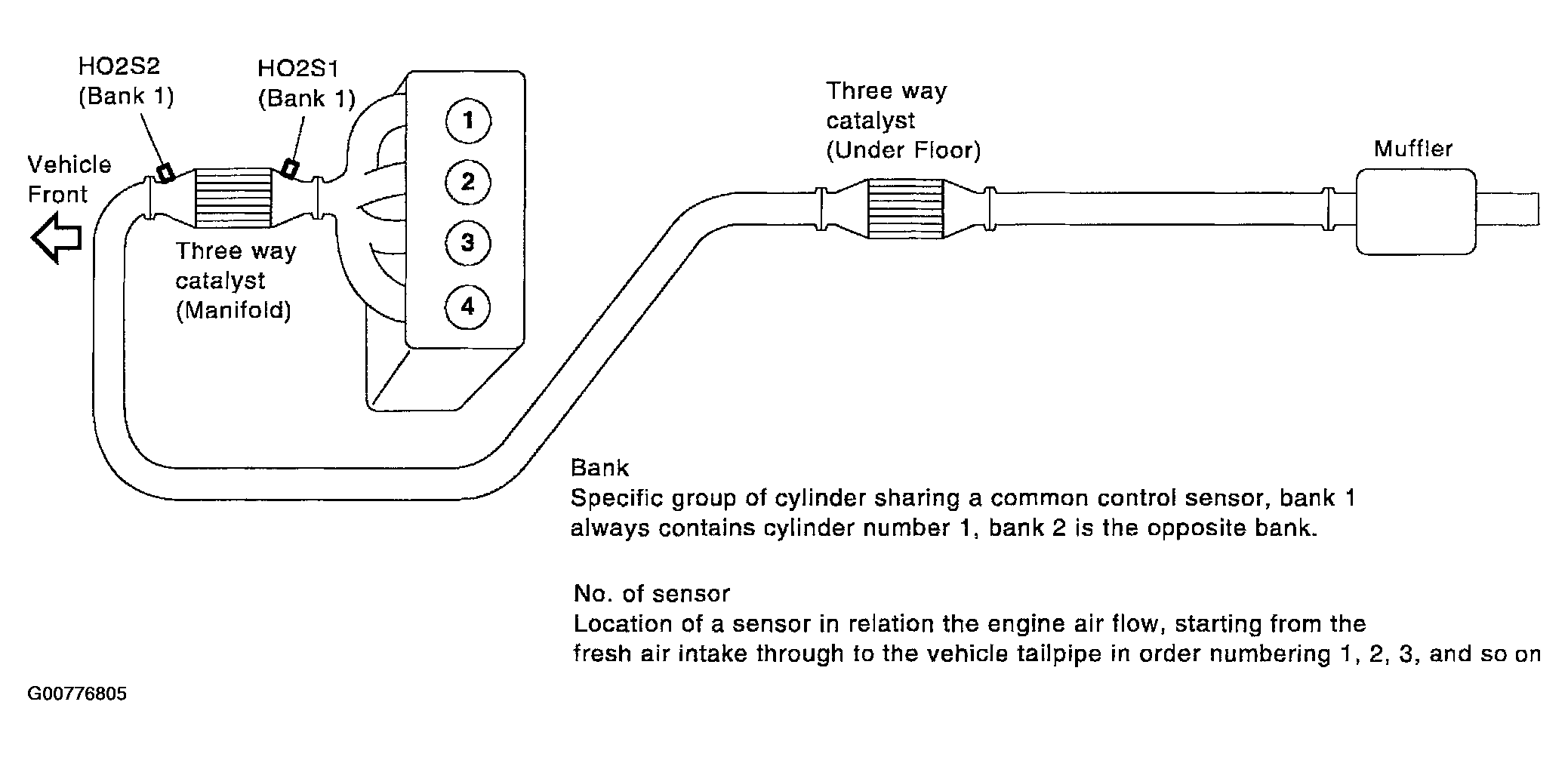

Fig 5: Locating Engine Control Components - A/T Models ULEV & M/T Models (5 Of 5)
