Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel.
  3. Turn ignition switch ON.

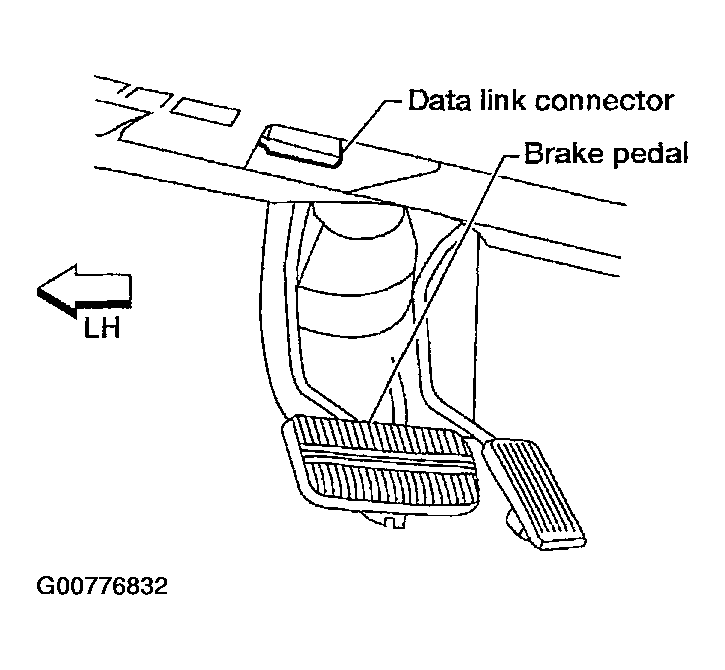

    Fig 1: Identifying Brake Pedal & Data Link Connector
    G00776832Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".

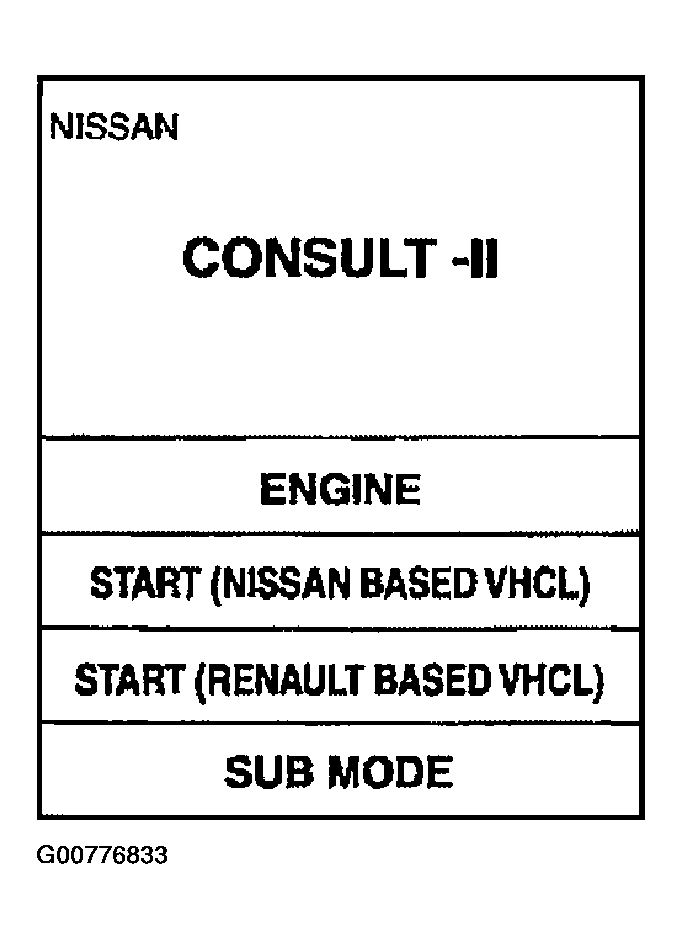

    Fig 2: Selecting "START (NISSAN BASED VHCL)" On Consult-II
    G00776833Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ENGINE".

    If "ENGINE" is not indicated, go to "DATA LINK CONNECTOR ".

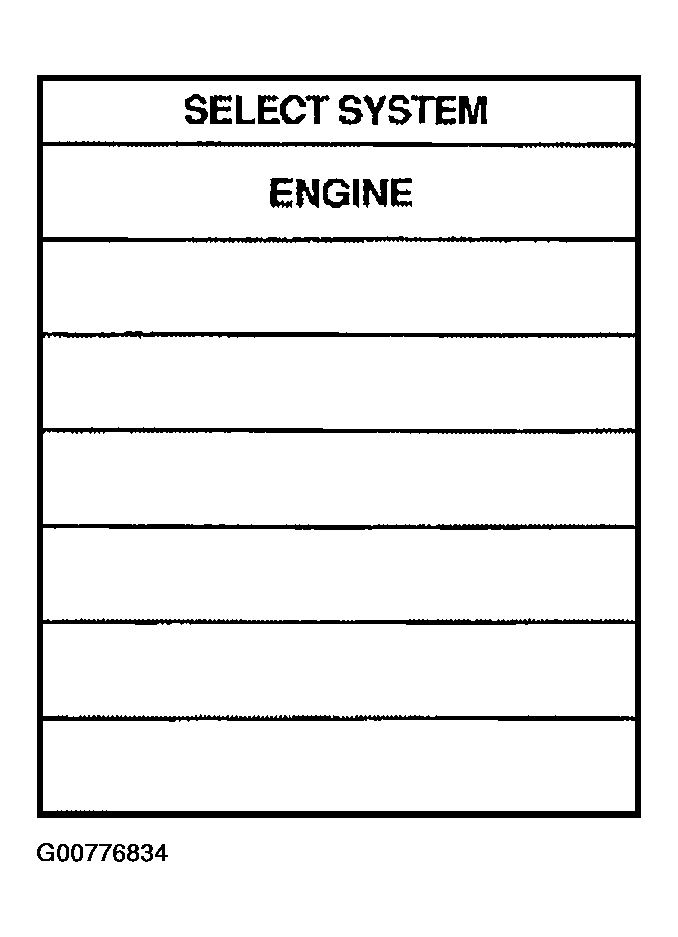

    Fig 3: Selecting "ENGINE" On Consult-II
    G00776834Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Perform each diagnostic test mode according to each service procedure.

    For further information, see the CONSULT-II Operation Manual.

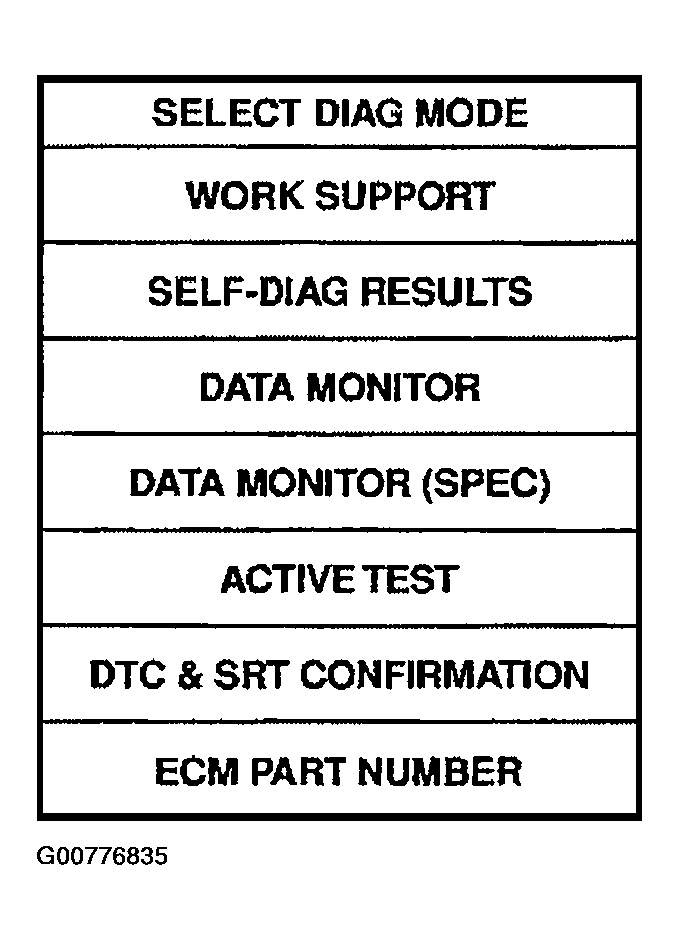

    Fig 4: Identifying Consult-II Display
    G00776835Courtesy of NISSAN MOTOR CO., U.S.A.
