ECM Relay

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply 12V direct current between ECM relay terminals 1 and 2.
  2. Check continuity between relay terminals 3 and 5, 6 and 7.

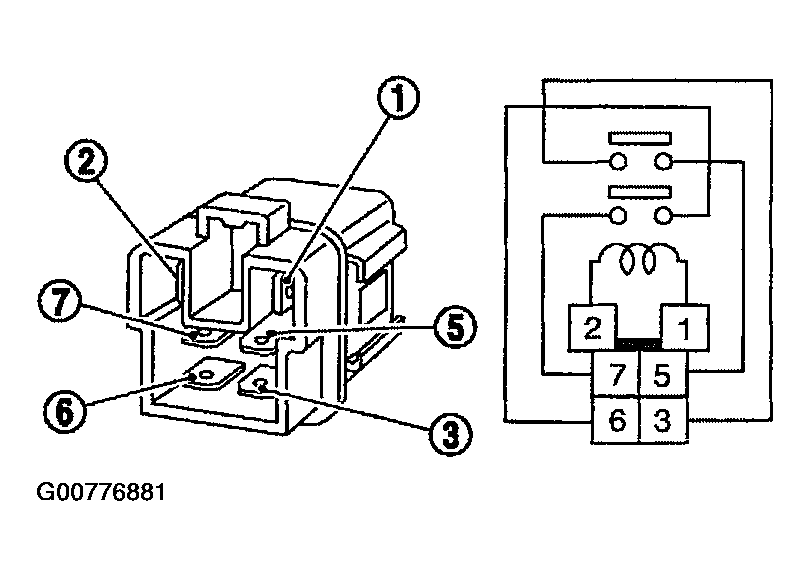

    Fig 1: Identifying ECM Relay Terminals
    G00776881Courtesy of NISSAN MOTOR CO., U.S.A.

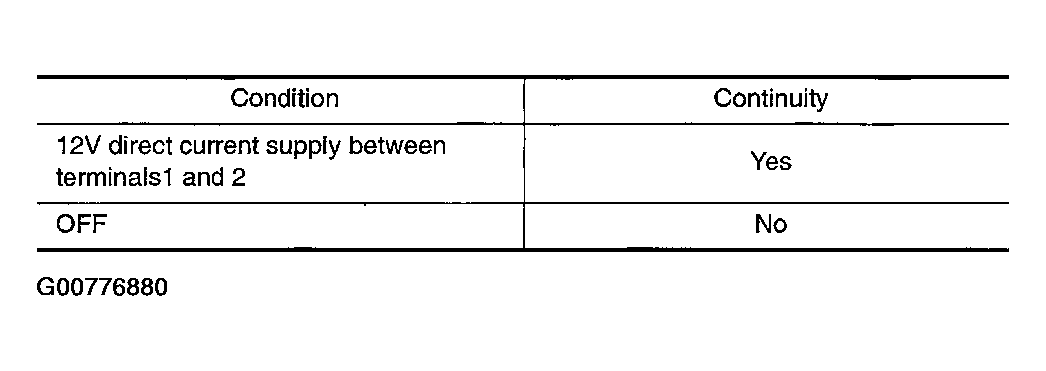

    Fig 2: ECM Relay Condition & Continuity Chart
    G00776880Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace ECM relay.
