Fuel Tank Vacuum Relief Valve (Built Into Fuel Fuller Cap)

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Wipe clean valve housing.

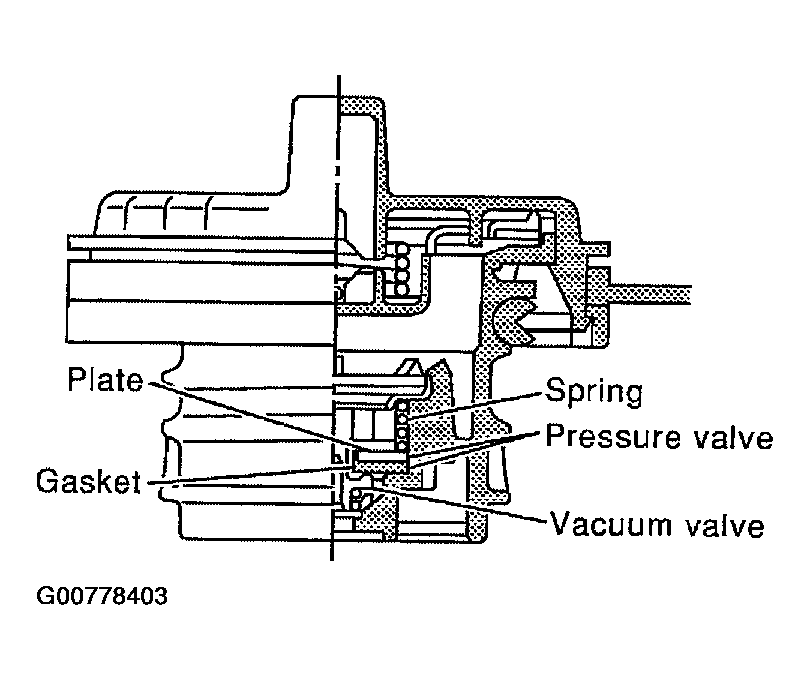

Fig 1: Identifying Fuel Tank Vacuum Relief Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Check valve opening pressure and vacuum.
Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm ² , 2.22 - 2.90 psi)

Vacuum: -6.0 to -3.3 kPa (-0.061 to -0.034 kg/cm ² , -0.87 to -0.48 psi)
If out of specification, replace fuel filler cap as an assembly.

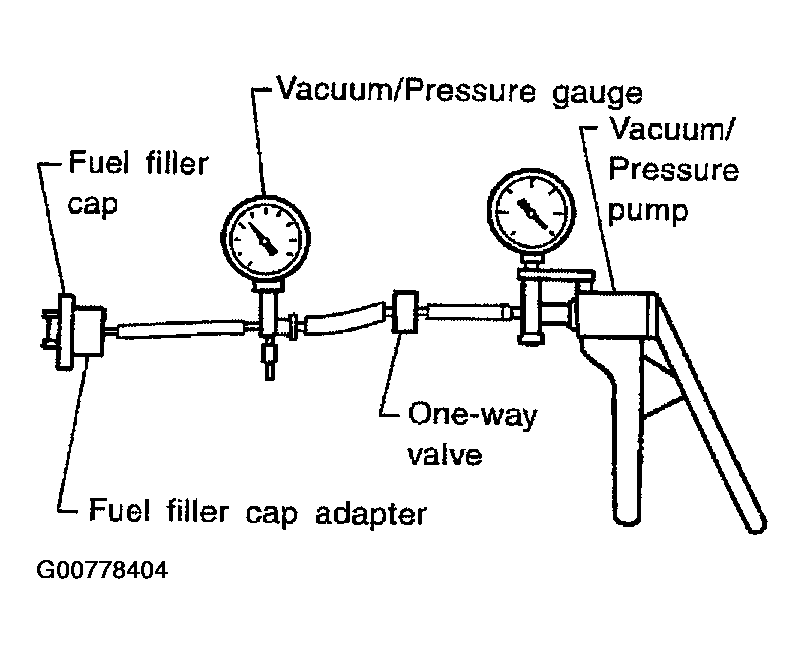

Fig 2: Checking Valve Opening Pressure & Vacuum
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
