With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Drive the vehicle at more than 30 km/h (19 MPH).
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

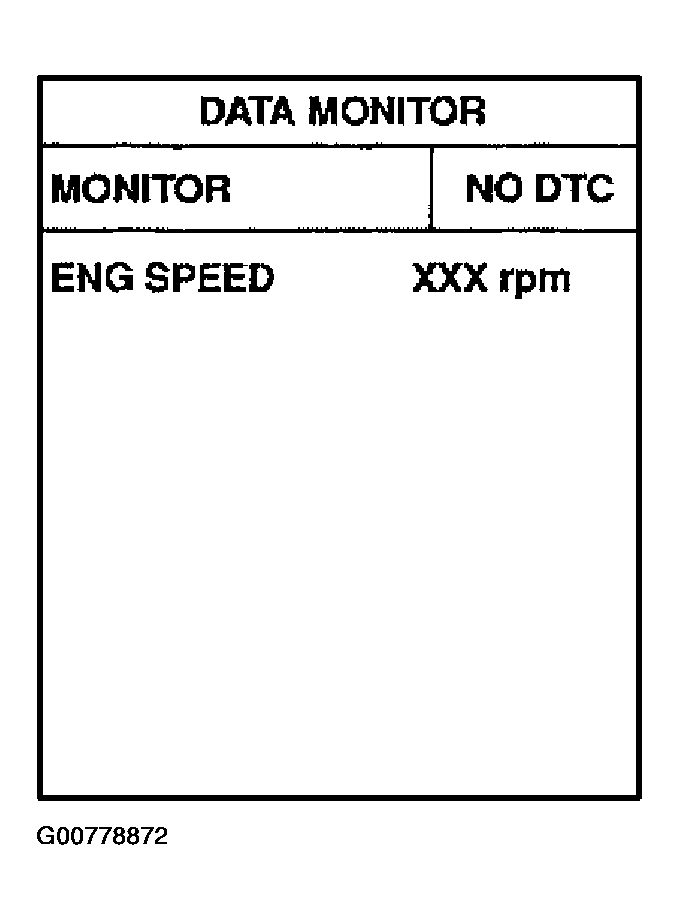

  5. Fig 1: Displaying Data Monitor Mode With Consult-II
    G00778872Courtesy of NISSAN MOTOR CO., U.S.A.
