With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Remove EVAP canister vent control valve from EVAP canister.
Check portion B of EVAP canister vent control valve for being rusted.
If NG, replace EVAP canister vent control valve.

If OK, go to next step.
Reconnect harness connectors disconnected.
Turn ignition switch ON.

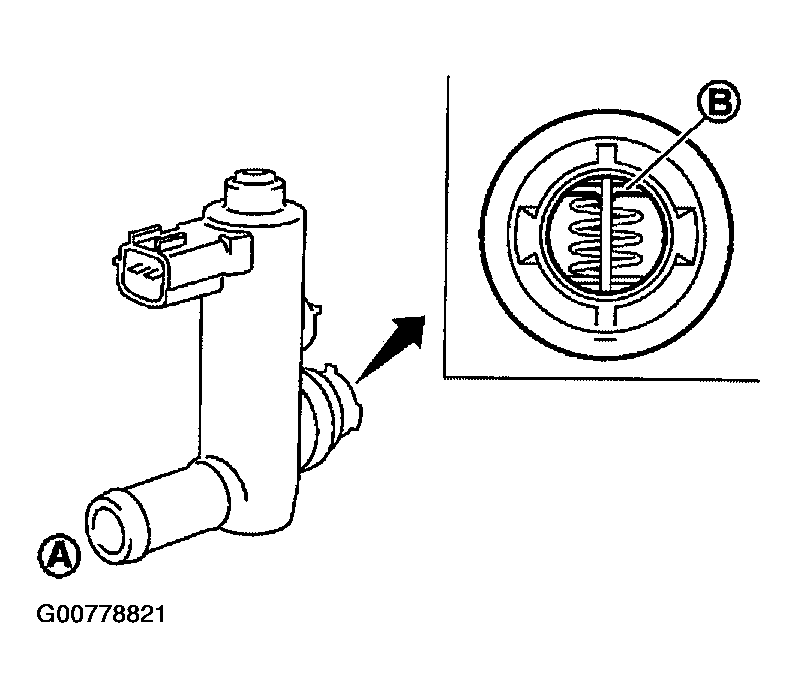

Fig 1: Checking EVAP Canister Vent Control Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.
Check air passage continuity and operation delay time.

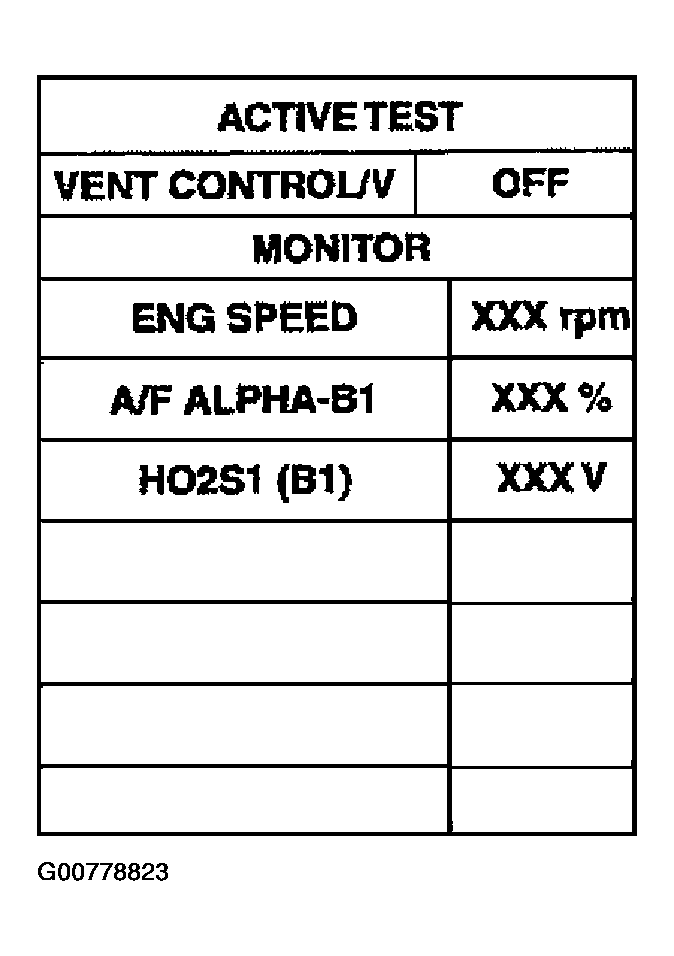

Fig 2: Displaying ACTIVE TEST Mode With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.

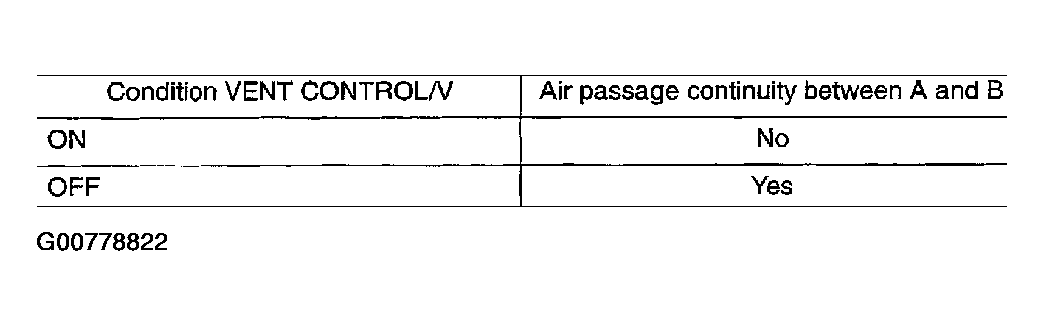

Fig 3: Air Passage Continuity Table (With Consult-II)
Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.

Make sure new O-ring is installed properly.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.
Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
Perform step 5 again.
