Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
    3. Turn ignition switch ON.

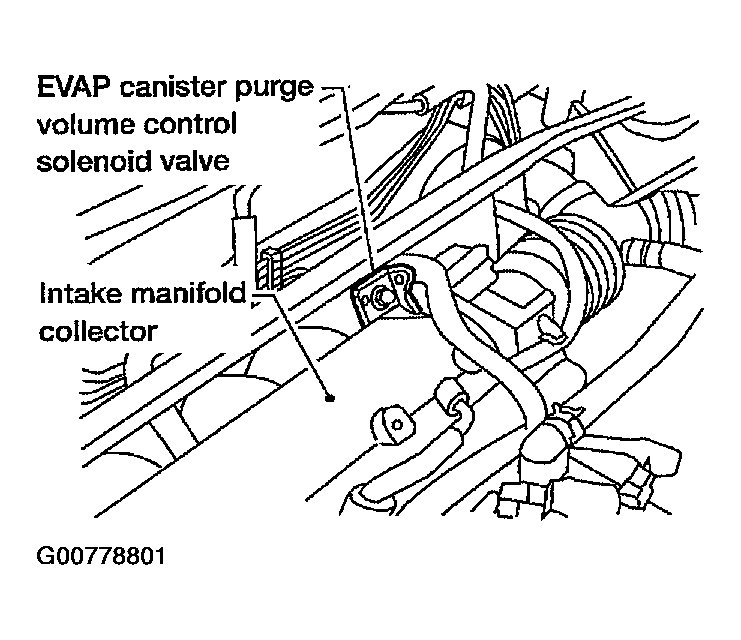

      4. Fig 1: Disconnecting EVAP Canister Purge Volume Control Solenoid Valve Harness Connector
      G00778801Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between EVAP canister purge volume control solenoid valve terminal 1 and engine ground with CONSULT-II or tester.

      Voltage: Battery voltage

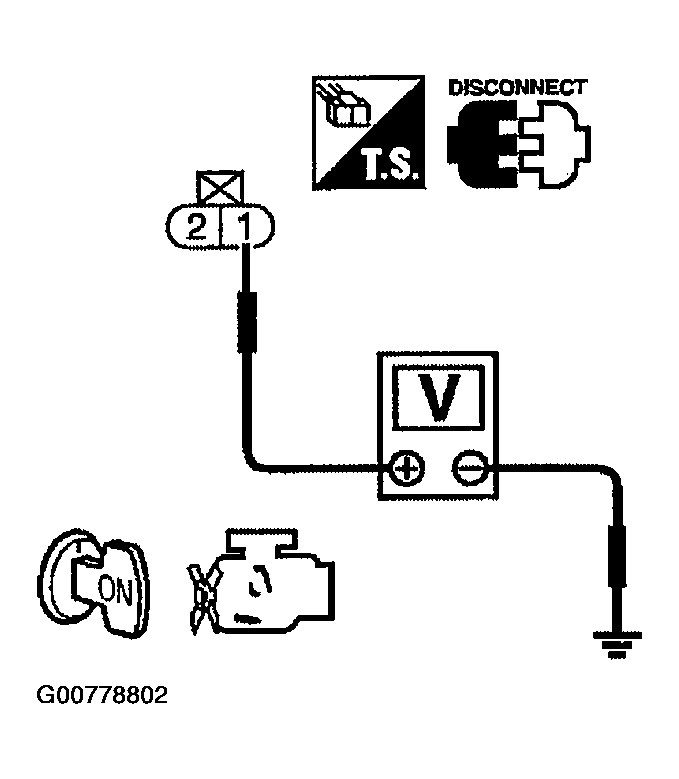

      5. Fig 2: Checking Voltage Between EVAP Canister Purge Volume Control Solenoid Valve Terminal 1 & Ground
      G00778802Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  3.
    2. NG: GO TO 2.
  2. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness for open or short between EVAP canister purge volume control solenoid valve and ECM relay
    • Harness for open or short between EVAP canister purge volume control solenoid valve and ECM
      1. Repair harness or connectors.
  3. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 45 and EVAP canister purge volume control solenoid valve terminal 2. Refer to WIRING DIAGRAM .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
    1. Disconnect EVAP control system pressure sensor harness connector.
    2. Check connectors for water.

      Water should not exist.

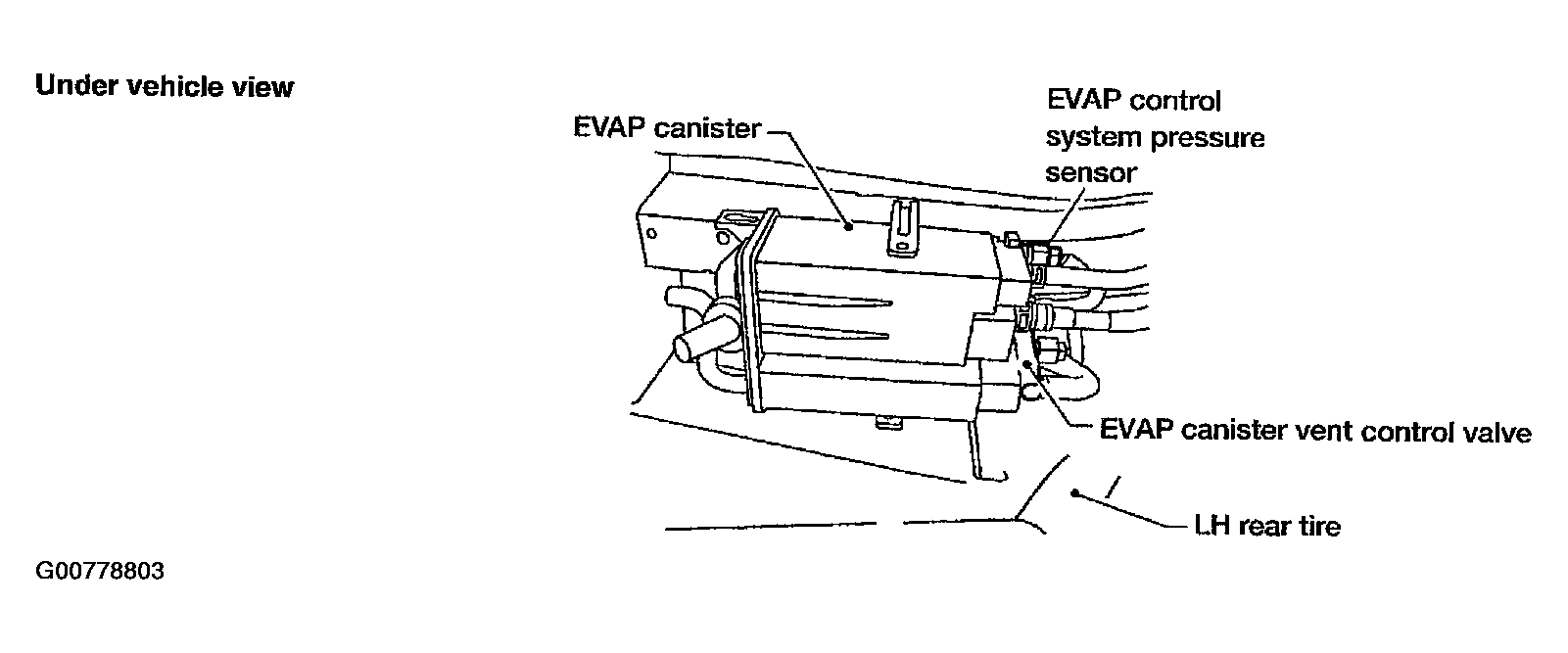

      3. Fig 3: Disconnecting EVAP Control System Pressure Sensor Harness Connector
      G00778803Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 5.
    2. NG: Replace EVAP control system pressure sensor.
  5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK (With CONSULT-II): GO TO 6.
    2. OK (Without CONSULT-II): GO TO  7.
    3. NG: Replace EVAP control system pressure sensor.
  6. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

    With CONSULT-II

    1. Turn ignition switch OFF.
    2. Reconnect harness connectors disconnected.
    3. Start engine.
    4. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II. Check that engine speed varies according to the valve opening.

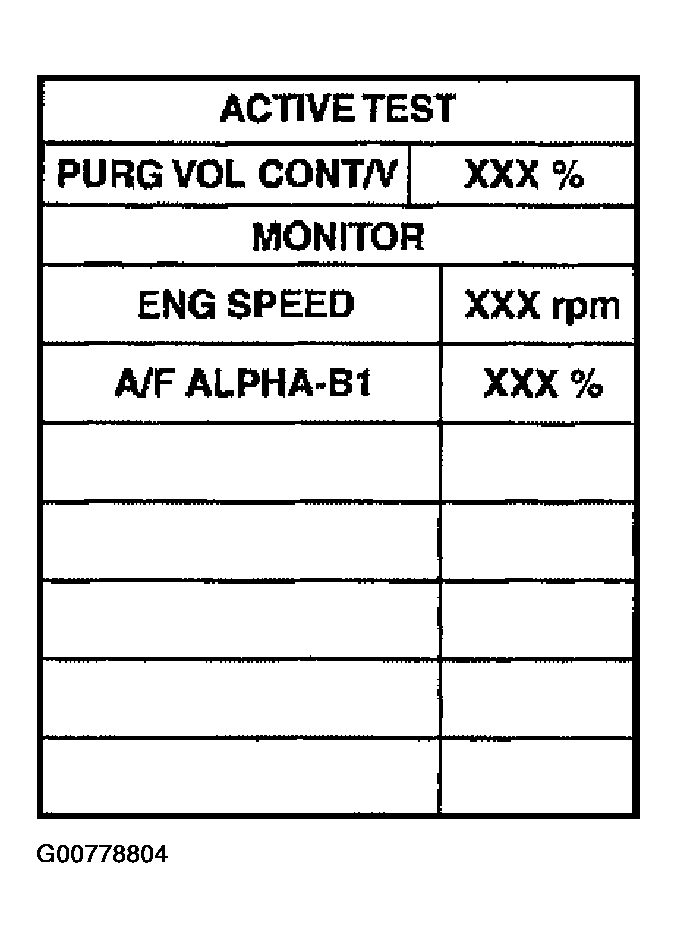

      5. Fig 4: Displaying ACTIVE TEST With Mode Consult-II
      G00778804Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  8.
    2. NG: GO TO 7.
  7. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 8.
    2. NG: Replace EVAP canister purge volume control solenoid valve.
  8. CHECK RUBBER TUBE FOR CLOGGING
    1. Disconnect rubber tube connected to EVAP canister vent control valve.
    2. Check the rubber tube for clogging.

    OK or NG

    1. OK: GO TO 9.
    2. NG: Clean the rubber tube using an air blower.
  9. CHECK EVAP CANISTER VENT CONTROL VALVE-II

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 10.
    2. NG: Replace EVAP canister vent control valve.
  10. CHECK IF EVAP CANISTER SATURATED WITH WATER
    1. Remove EVAP canister with EVAP canister vent control valve attached.
    2. Check if water will drain from the EVAP canister.

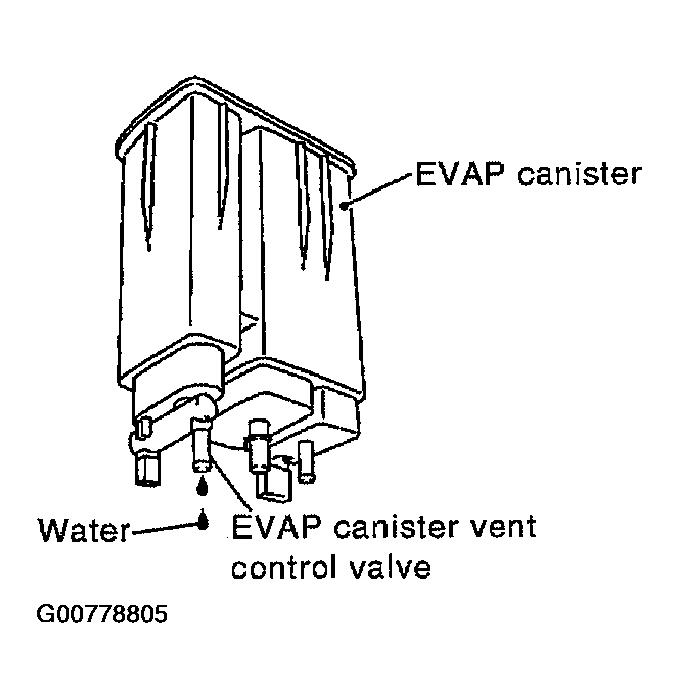

      3. Fig 5: Checking EVAP Canister For Water Saturation
      G00778805Courtesy of NISSAN MOTOR CO., U.S.A.

    YES or NO

    1. Yes: GO TO 11.
    2. No: GO TO  13.
  11. CHECK EVAP CANISTER

    Weigh the EVAP canister with the EVAP canister vent control valve attached.

    The weight should be less than 1.9 kg (4.2 lb).

    OK or NG

    1. OK: GO TO  13.
    2. NG: GO TO 12.
  12. DETECT MALFUNCTIONING PART

    Check the following.

    • EVAP canister for damage
    • EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
      1. Repair hose or replace EVAP canister.
  13. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. INSPECTION END
