Main 12 Causes of Overheating

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

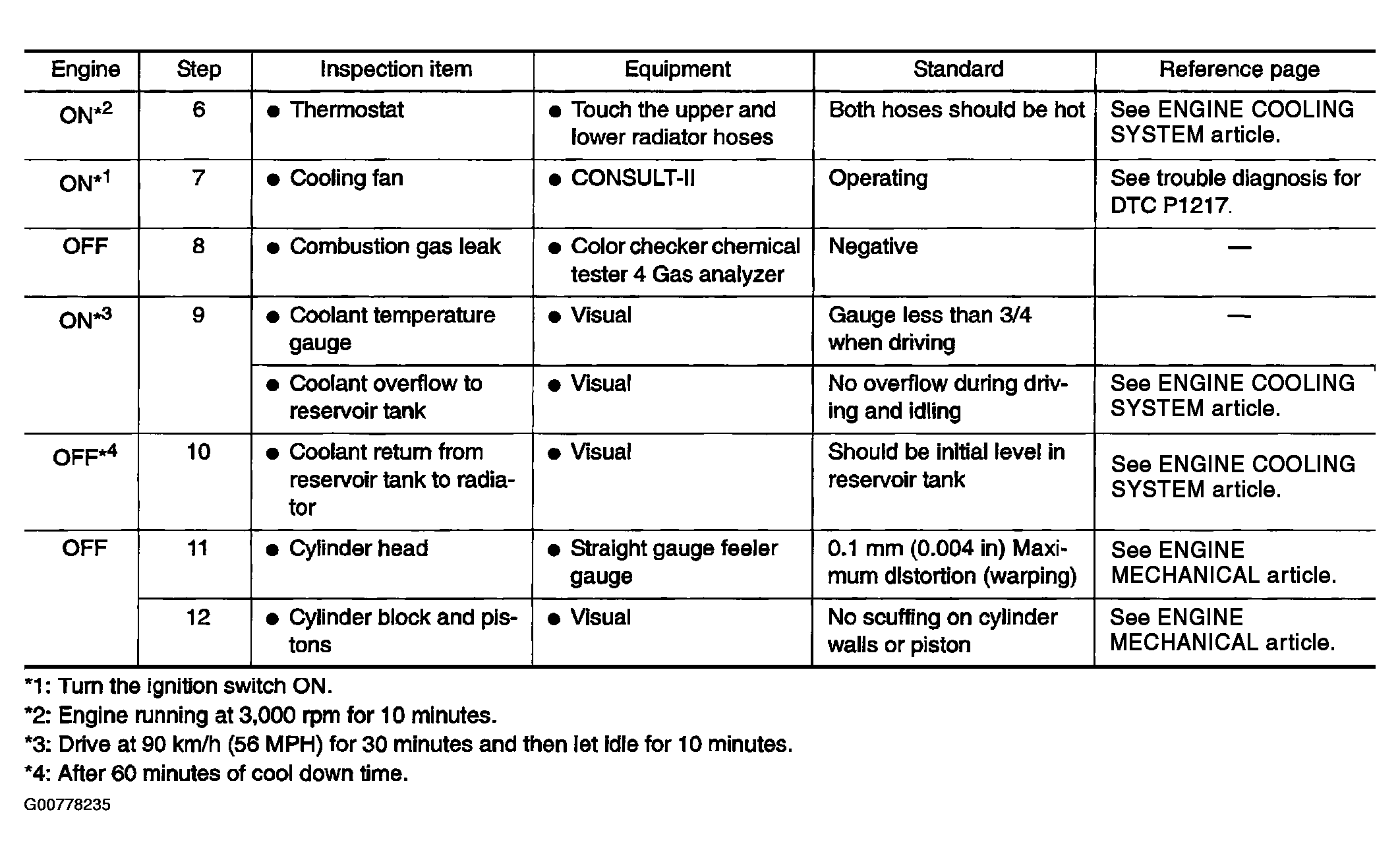

Fig 1: Main 12 Causes Of Overheating Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

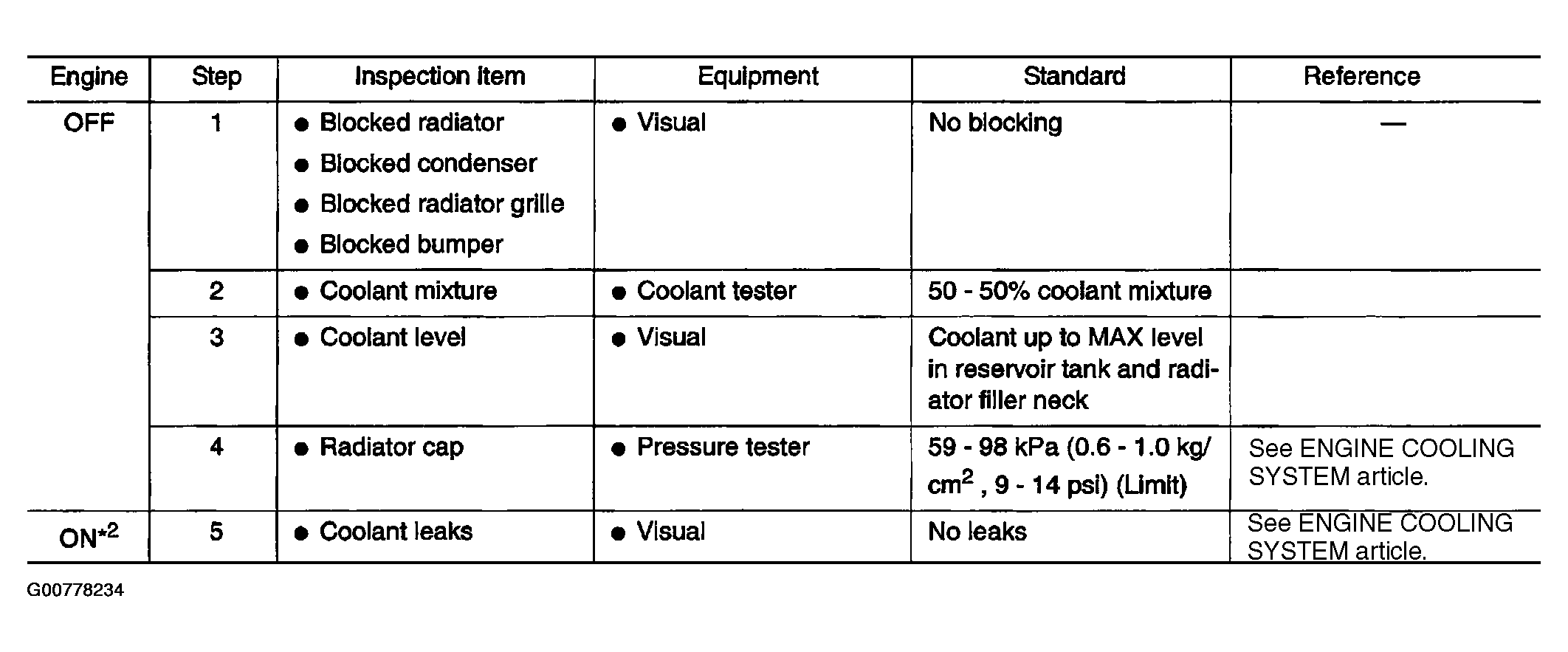

Fig 2: Main 12 Causes Of Overheating (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

For more information, refer to "OVERHEATING CAUSE ANALYSIS ".
