Cooling Fan Relays-1 And -2

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals 3 and 5, 6 and 7.

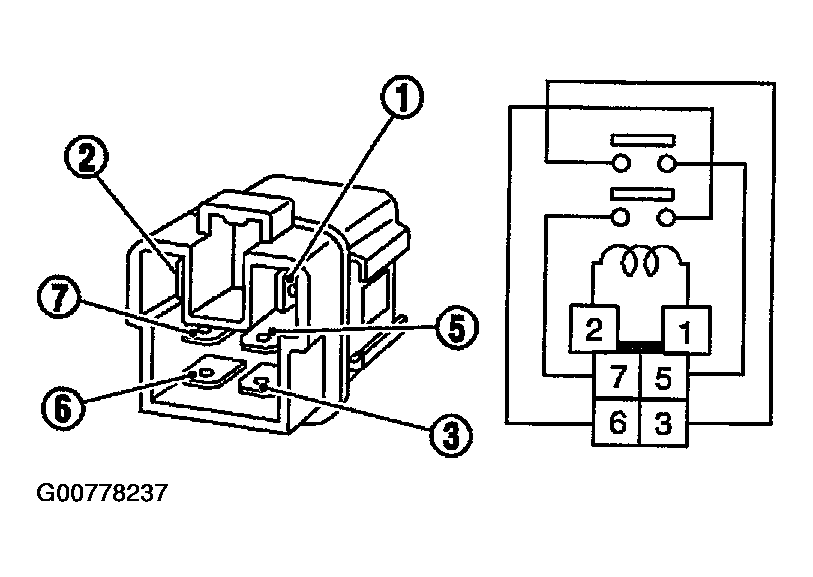

Fig 1: Checking Continuity Between Cooling Fan Relay Terminals 3 & 5, 6 & 7

Courtesy of NISSAN MOTOR CO., U.S.A.

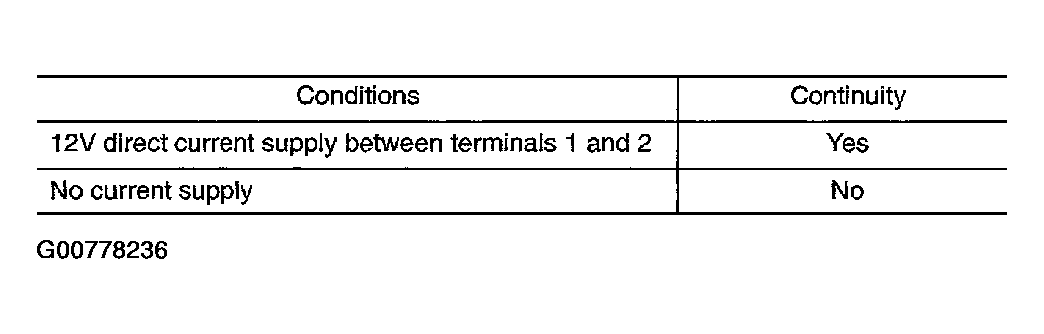

Fig 2: Cooling Fan Relays Continuity Table

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace relay.
