Cooling Fan Motor-1 And Motor-2

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect cooling fan motor harness connectors.
Supply cooling fan motor terminals with battery voltage and check operation.

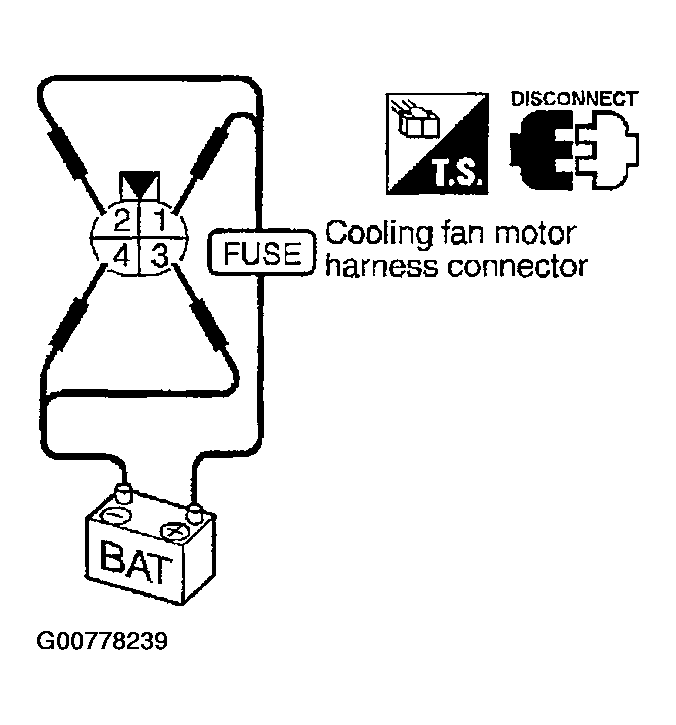

Fig 1: Checking Cooling Fan Motor Harness Connectors Operation
Courtesy of NISSAN MOTOR CO., U.S.A.

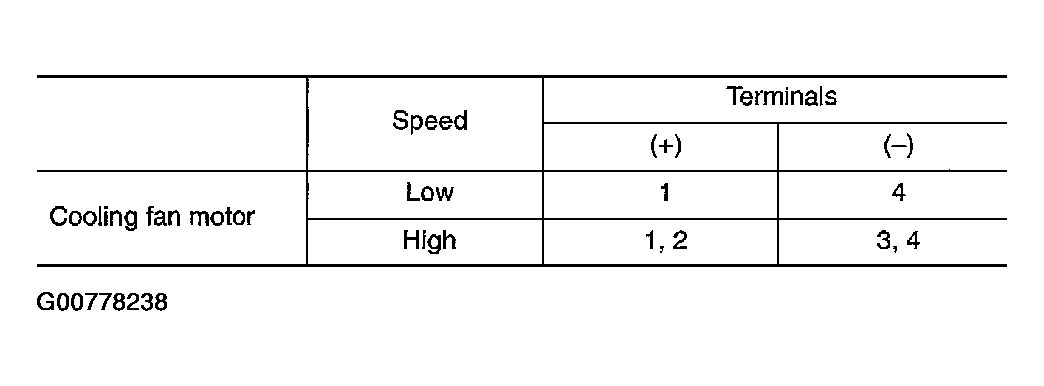

Fig 2: Cooling Fan Motor Terminal Operation Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling fan motor should operate.

If NG, replace cooling fan motor.
