With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

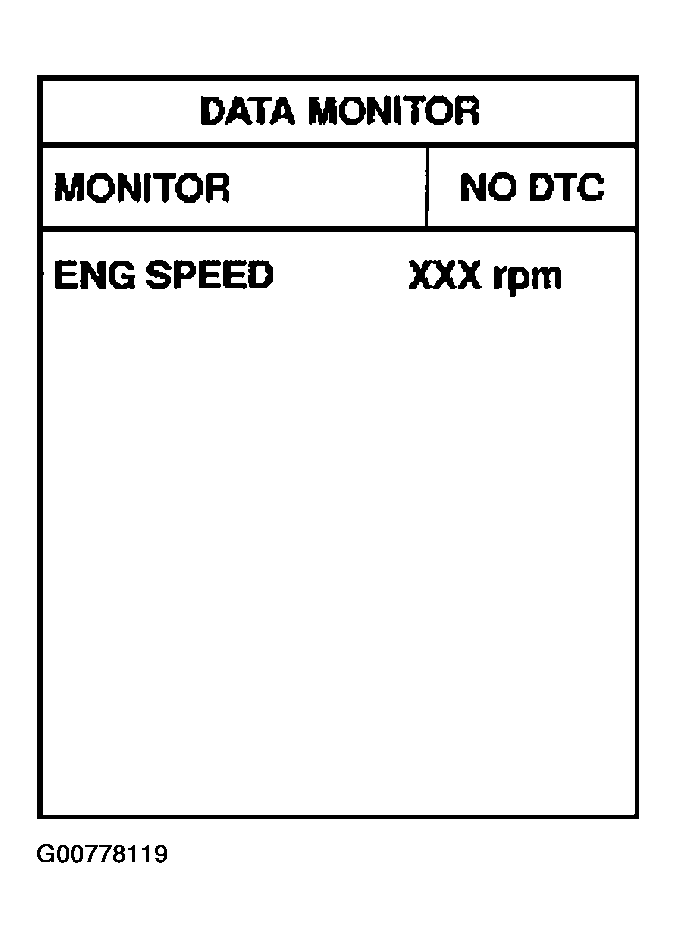

Fig 1: Selecting Data Monitor Mode With Consult-II
G00778119Courtesy of NISSAN MOTOR CO., U.S.A.
