With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Shift selector lever to D position (A/T models), 1st position (M/T models) and wait at least 2 seconds.
  4. Shift selector lever to N or P position.
  5. Start engine and let it idle for 5 seconds.
  6. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

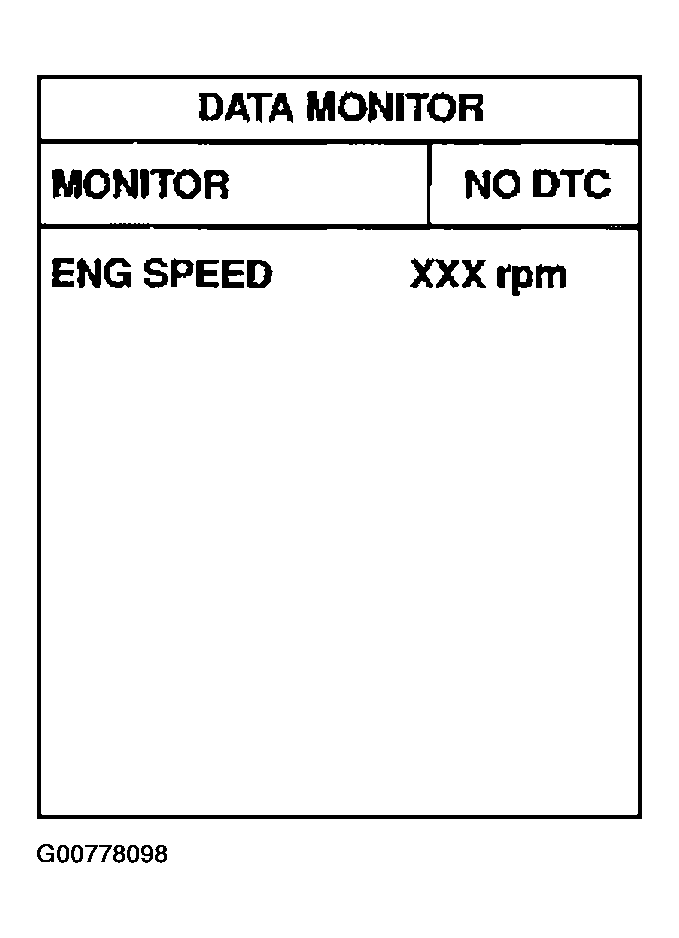

Fig 1: Selecting Data Monitor Mode With Consult-II
G00778098Courtesy of NISSAN MOTOR CO., U.S.A.
