With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  2. Start engine and run it for at least 10 seconds at idle speed.
  3. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

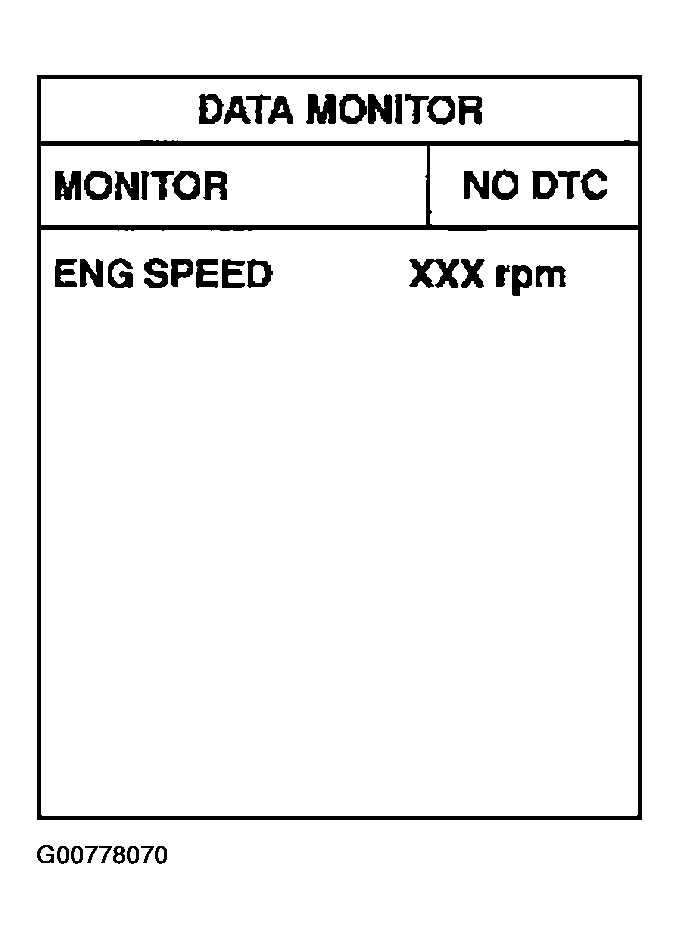

Fig 1: Selecting Data Monitor Mode With Consult-II
G00778070Courtesy of NISSAN MOTOR CO., U.S.A.
